RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

RFID Tag Smartrac Frog 3D 76mm M4D

The RFID tag Smartrac Frog 3D 53 mm M4D has a special design for use throughout the supply chain, through the individual identification and tracking of pallets and boxes.

It incorporates the Monza 4D chip from Impinj, which has a 128-bit EPC memory, a 32-bit user memory, and a 96-bit TID memory.

This product is available for purchase in Wet Inlay and Label/Sticker formats. It works seamlessly on various surfaces such as wood, glass, plastic, and non-metallic materials.

Download datasheet double_arrow

Product description RFID Tag Smartrac Frog 3D 76mm M4D

The dimensions of this tag are 68 x 68 mm, and it operates within a UHF frequency range of 860 to 960 MHz. Depending on the environment and surface where the tag is applied, it has the capability of being read at a distance of up to 13,8 meters.

It is manufactured following the highest industry quality standards, like all Avery Dennison products. Additionally, this product adheres to the international standard ISO 18000-6C, EPC Class 1 Gen 2, which means it meets the most demanding standards in the industrial and communication fields with RFID systems.

Product code:

Wet Inlay: 3002347 / IL-602690

Label/Sticker: 3002348 / IL-602691

UHF

Inlays and Tags

Impinj Monza 4D

-40 °C to 85 °C / -40 °F to 185 °F

Wood, Plastic, Non Metal, Glass

Label / Sticker, Wet Inlay

ISO 18000-6C, EPC Class 1 Gen 2

128 bits

UHF Global 860-960 MHz

76mm × 76mm

2.99in × 2.99in

You may also be interested in

RFID Tag Smartrac Frog 3D 43mm M4QT

The composition and shape of this product give it a square structure and dimensions of 43 x 43 mm. It operates within a UHF frequency range of 860 to 960 MHz and can be easily applied to surfaces such as wood, glass, plastic, and non-metallic materials. This tag complies with international quality and performance standards ISO 18000-63 EPC Class 2 Gen 2, ensuring its proper functioning in complex and diverse environments. Furthermore, like all RFID products from Avery Dennison, it is manufactured following the highest industry quality standards. Product code: Wet Inlay: 3006928 / IL-603314

See more double_arrow

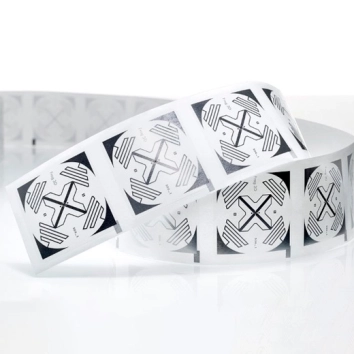

RFID Tag Smartrac Frog 3D 43mm M4i

This item has a quadratic and concentrated structure, with dimensions of 40 x 40 mm and a UHF frequency range of 860 to 960 MHz. It can be applied to surfaces such as wood, plastics, glass, and non-metallic materials. Thanks to the characteristics and composition of the product, it has a reading range of up to 10 meters, depending on the applied surface and the environment. This tag meets international quality and performance requirements ISO 18000-63 EPC class 1 Gen 2, ensuring its proper operation in complex environments. Additionally, like all Avery Dennison RFID products, it is manufactured following the highest category performance standards in the RFID industry. Product Code: Label/Sticker: 3006657 / IL-603163

See more double_arrow

RFID Tag Smartrac Frog 3D 53mm M4D

The dimensions of this item are 50 x 50 mm. It has a UHF frequency range of 860 to 960 MHz and is equipped with the Monza 4D chip from Impinj, which has a 128-bit EPC memory and a 32-bit user memory. Its composition and design provide the capability of being read at a distance of up to 10 meters. This item meets the international quality and performance requirements of ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in changing and complex environments. Additionally, it is manufactured following the highest industry quality standards, like all RFID products from Avery Dennison. Product code: Wet Inlay: 3002015 / IL-602603

See more double_arrow

RFID Logistic Label

Dipole's Logistics labels comply with international standards ISO 18000-6C and EPC Class 1 Gen 2. They can be manufactured in various materials such as paper, polypropylene, polyethylene, thermal paper, among others. We also offer different types of adhesives, including both permanent and removable options. These tags are easily printable using any standard RFID printer available on the market. However, if preferred, customers can also utilize Dipole's printing and encoding service to receive the finished product. At Dipole, we work with multiple delivery formats for the convenience of our customers and provide shipping to any part of the world.

See more double_arrow

RFID Handheld Reader Zebra RFD40

The Zebra RFD40 reader has a read rate of 1300/second, which is 30% higher than its main competitors. The trigger has three different functions such as RFID reading, barcode scanning and a third one that can be configured by the user. It is a rugged product with a drop test of up to 1.5 meters and an IP54 sealing to protect against dust and water conditions, as well as an optimal operating temperature of -10°C to 50°C / 14°F to 122°F. It has a 7,000 mAh battery, dimensions of 15.1 cm x 8.4 cm x 16.65 cm and a weight of 521g. Zebra's RFD40 sled is the next generation model to replace the RFD2000. Product code: RFD4030-G00B700-WR RFD4030-G00B700-US RFD4030-G00B700-TN RFD4030-G00B700-TH RFD4030-G00B700-SL RFD4030-G00B700-JP RFD4030-G00B700-IN RFD4030-G00B700-IL RFD4030-G00B700-E8

See more double_arrow

RFID Reader Zebra FX7500

The FX7500 features a slim and attractive form factor, with a low profile and compact size that makes it suitable for virtually any business environment. It's also great for the bottom line, with an impressive set of features that add tremendous value to enterprise-grade applications. It has a sturdy construction made of die-cast aluminum, sheet metal and plastic with dimensions of 19.56cm x 14.99cm x 4.32cm and a weight of 860 g. Product code: Global 4-port: FX7500-42325A50-WR Global 2-port: FX7500-22325A50-WR ETSI 4-port: FX7500-42321A5S-ER

See more double_arrow

RFID UHF Reader R700 Impinj

Impinj's R700 reader features 4 antenna ports and can handle up to 32 read zones, built-in GPIO, a 1Ghz dual-core processor speed, and is the only reader with up to Gigabit Ethernet connectivity. It has the ISO 18000 63 protocol and global EPC Gen 2 v2 and the maximum benefits of a brand like Impinj, leader in the sector and with many years of experience. Product code: Impinj R700 (ETSI), 865-868 MHz, 915 - 921 MHz: IPJ-R700-241 Impinj R700 (FCC, GX), 902 - 928 MHz: IPJ-R700-341 Impinj R700 (Japón), 916,7 - 920,9 MHz: IPJ-R700-441

See more double_arrow

RFID Antenna Zebra AN510

The Zebra AN510 is an antenna for industrial use as it has IP67 sealing certification that perfectly isolates it from dusty and watery environments to be able to work in environments with a large number of particles in the environment without affecting its performance. It has right circular polarization and SMA Female connection located on the side of the antenna, 68º opening angle, 1 dB axial ratio and 3 v maximum power. Its dimensions are 25 cm x 25 cm x 1.1 cm and a total weight of 750 grams. The optimum operating temperature provided by the manufacturer is from -20C to +55 ºC. Product code: ETSI frequency: AN510-CSCL60004E (Vesa studded mount) ETSI frequency: AN510-CFCL60002E (Flush mount)

See more double_arrow

RFID Antenna Zebra AN520

The Zebra AN520 has IP68 sealing certification to guarantee its correct operation in any type of installation, both indoors and outdoors, regardless of inclement weather or if there is a lot of dust in the environment. It uses ETSI: 865-868 MHz and FCC: 902-928 MHz frequencies and is right-hand circularly polarized. It has an SMA female connector on one side to be able to connect it to the reader. It has very compact dimensions of 15 cm x 15 cm x 1.4 cm and weighs only 250 grams. Its optimum operating temperature is from -40 ºC to +64 ºC. Product code: ETSI frequency: AN520-FCL60011EU (Flush mount) FCC frequency: AN520-FCL60010US (Flush mount)

See more double_arrow

Universal Laird S8658 RFID Antenna

This device boasts a robust IP54 rating, signifying its resistance to water and its ability to operate in the rain, under dripping conditions, and when subjected to splashes. Additionally, it is sealed in such a way that it can withstand the presence of solid materials larger than 1 mm and prevent dust accumulation. The antenna has a square shape with dimensions of 259 x 259 x 34 mm and weighs 1.13 kg. Product Codes: S8658PR, S8658PL, S8658WPR, and S8658WPL

See more double_arrow

Impinj Mini-Guardrail RFID Antenna

This product operates in a frequency range of 860 to 960 MHz. It has dimensions of 13.3 x 7 x 1.9 cm and weighs 0.114 kg. The antenna has an IP41 protection rating, ensuring protection against the entry of small particles, as well as possible spills, accidental splashes, or drips that could damage the device's components. It operates smoothly in a temperature range from 0 °C to 40 °C. Product Code: IPJ-A0303-000

See more double_arrow

RFID Printer Zebra ZT620

The Zebra ZT620 series of RFID printers have the following features: Tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols Adaptive Encoding Technology automatically selects the optimal encoding settings Supports industry standards and multi-vendor chip serializations You can record the user memory and perform permanentblock according to ATA Spec 2000 regulations Allow users to track performance with RFID job monitoring tools Applications can be very diverse: Shipping and receiving, Semi-finished and finished product traceability, Document and medical record management, Product identification/serial numbers, Inventory management, Asset tracking, Cross-dock, Receiving/location labelling, Order picking/packaging, etc.

See more double_arrow

Printronix T6000e Industrial RFID Printer

This printer operates optimally within a temperature range of -5°C to 40°C and can function in a humidity range of 10% to 90% without condensation. It has a 512 MB RAM and 128 MB flash memory. It can use both wax and resin inks, with a maximum length of 450 meters and a thickness ranging from 0.06 mm to 0.268 mm. Additionally, it is equipped with an intelligent thermal management system that extends the print head lifespan and enhances print quality. Product Code:

See more double_arrow

RFID Tag Smartrac Dogbone Impinj M730

The Dogbone M730 operates in the UHF Global frequency band 860-960 and has dimensions of 97 x 27 mm. Its robust and resistant design allows it to function in demanding environments and adhere to difficult-to-label surfaces, such as wood or glass. This tag complies with international standards for quality and performance ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in complex environments. Additionally, like all RFID products from Avery Dennison, it is manufactured following the highest industry quality standards. The Dogbone M730 is available in different configurations, offering a wide range of options to suit the specific needs of each business. Product code: Dry Inlay: 3008223 / IL-604163 Wet Inlay: 3008445 / IL-604318 Label: 3008054 / IL-604042

See more double_arrow

RFID Tag Smartrac Belt Impinj M730

The product is available in Dry Inlay, Wet Inlay, and Label/Sticker formats. It has dimensions of 70 x 14 mm and operates within a UHF frequency range of 860 - 960 MHz. Additionally, it has a wide reading range, and depending on the type of material, it can be read from a distance of up to 19 meters. This tag complies with international quality and performance standards ISO 18000-63 EPC class 1 Gen 2, ensuring its proper functioning in complex environments. Furthermore, like all Avery Dennison RFID products, it is manufactured following the highest industry quality standards. Product Code: Dry Inlay: 3007862 / IL-603906 Wet Inlay: 3007863 / IL-603907 Label/Sticker: 3007861 / IL-603905

See more double_arrow

RFID Tag Smartrac Eagle NXP Ucode 8

The dimensions of this product are 44 x 28 mm, and it has a UHF frequency range of 860 - 960 MHz. Moreover, it functions smoothly on surfaces such as wood, glass, various types of plastics, and non-metallic materials. Like all RFID products from Avery Dennison, Eagle NXP Ucode 8 tags are manufactured to the highest industry quality standards and comply with ISO 18000-63 Type C. Additionally, they have EPC Class 1 Gen 2 memory, which provides high performance in complex environments. Product Code: Dry Inlay: 3007014 / IL-603372 Label/Sticker: 3007016 / IL-603373

See more double_arrow

RFID Tag Smartrac Dogbone Dura

The Dogbone Dura operates in the UHF Global 860-960 frequency band and has dimensions of 127 x 27 mm. Its robust and durable design allows it to function in demanding environments and adhere to difficult-to-label surfaces such as wood or glass. The tag complies with international quality and performance standards ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in complex environments. Additionally, like all Avery Dennison RFID products, it is manufactured following the highest industry quality standards. The Dogbone Dura is available in different configurations, offering a wide range of options to suit the specific needs of each business. Product code: Dry inlay: 3006914 Wet inlay: 3006915

See more double_arrow
