Dipole

RFID Antennas

RFID antennas to improve reading accuracy and range at every control point. We select and configure circular or linear RFID antennas, with short- or long-range performance, for warehouses, production lines, portals and picking areas. With the right coverage and polarization design, lost reads are reduced and performance is stabilised in environments with interference, metal or movement. Compatible with the leading RFID readers on the market and global standards, our RFID antennas help deliver more consistent and scalable traceability.

Impinj Mini-Guardrail RFID Antenna

The Impinj Mini-Guardrail RFID antenna has been designed for indoor use and situations with space constraints. Its primary applications include access control, document management, ticket issuance, and any scenario that requires fast and reliable readings.

This antenna boasts an impressive reading capacity with a range of up to 7.5 cm, making it ideal for reading a wide range of products and items. Furthermore, its low field coverage minimizes unwanted readings.

The exceptional performance of this antenna allows for a higher number of readings and write operations compared to other competitive devices.

Download datasheet double_arrow

Product description Impinj Mini-Guardrail RFID Antenna

This product operates in a frequency range of 860 to 960 MHz. It has dimensions of 13.3 x 7 x 1.9 cm and weighs 0.114 kg. The antenna has an IP41 protection rating, ensuring protection against the entry of small particles, as well as possible spills, accidental splashes, or drips that could damage the device's components.

It operates smoothly in a temperature range from 0 °C to 40 °C.

Product Code:

IPJ-A0303-000

UHF
0,0 ºC to 40,0 °C / 32,0ºF to 104°F
SMA Female
2 Watts
Linear
30 dBm
Fixed Readers
IP41
UHF Global 860-960 MHz
-20 dBi
133mm × 70mm × 19mm
5.24in × 2.76in × 0.75in

You may also be interested in

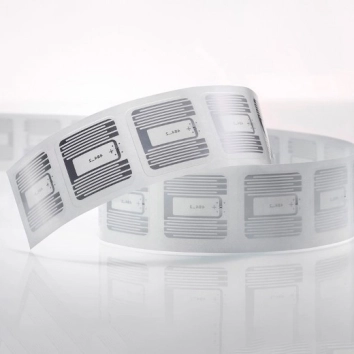

Smartrac Grille NXP Ucode 7xm

RFID Tag Smartrac Grille NXP Ucode 7XM

It can be used on all types of surfaces, such as wood, plastics, glass, and non-metallic materials. It has dimensions of 22 x 22 mm, and thanks to its composition, it can be read at a distance of up to 4,1 meters. This tag complies with the international standards of quality and performance ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in all types of complex and changing environments. Additionally, like all Avery Dennison RFID products, it is manufactured following the highest industry quality standards. Product code: Wet Inlay: 3005985 / IL-602995 Label/Sticker: 3005986 / IL-602996
See more double_arrow
Smartrac Web Impinj Monza R6P

RFID Tag Smartrac Web Impinj Monza R6P

This product is available in three different formats: Dry Inlay, Wet Inlay, and Label/Sticker, giving it the versatility to adapt to a wide range of products and surfaces, including wood, glass, plastics, and various non-metallic materials. This expands its application capability in different contexts and scenarios. The label complies with international quality and performance standards ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper performance in challenging environments. Additionally, like all Avery Dennison RFID devices, it is manufactured following the highest quality standards in the industry. Product Code: Dry Inlay: 3006082 / IL-603011 Wet Inlay: 3006083 / IL-603012 Label/Sticker: 3006084 / IL-603013
See more double_arrow
RFID Tag Avery Dennison Microtrack

RFID Tag Avery Denninson Microtrack

The Smartrac microtrack is designed for use in the medical and pharmaceutical fields. So, it optimizes the authentication of medicines, as well as the different medical applications. They also have NXP ICODE SLIX, which offers 896 bits of memory to the user.
See more double_arrow
RFID Software Lama

RFID Software Lama

Dipole's priority has been that the customer can have the most important information about their business at a glance and in real time, with a very intuitive and visual Dashboard. In addition, our software allows you to easily configure all the antennas and readers to adjust the RFID readings as needed.  Some of the benefits of Lama software: Identification of products throughout the process Real-time data updates Easy management of RFID records Easy hardware configuration Configuration of alerts according to customer KPIs Full integration with any type of ERP Possibility of downloading and saving all the information generated in the way that best suits the client. If you want to know more about Dipole's RFID Lama software, please contact us and we will explain much more.
See more double_arrow
Zebra FX7500 UHF RFID Reader

RFID Reader Zebra FX7500

The FX7500 features a slim and attractive form factor, with a low profile and compact size that makes it suitable for virtually any business environment. It's also great for the bottom line, with an impressive set of features that add tremendous value to enterprise-grade applications. It has a sturdy construction made of die-cast aluminum, sheet metal and plastic with dimensions of 19.56cm x 14.99cm x 4.32cm and a weight of 860 g. Product code: Global 4-port: FX7500-42325A50-WR Global 2-port: FX7500-22325A50-WR ETSI 4-port: FX7500-42321A5S-ER
See more double_arrow
RFID Reader Impinj R420

Impinj Speedway Revolution Reader R420 RFID UHF

The Impinj R420 has 4 ports for antennas with the capacity to manage up to 32 reading zones, a maximum transmission power of 32.5 dBm and has the option of incorporating a GPIO. With this reader we achieve a reading rate of up to 1,100 readings per second. It has the ISO 18000 63 protocol and global EPC Gen 2 v2 and the maximum benefits of a brand like Impinj, leader in the sector and with many years of experience. Product code: Speedway R420 4-port (ETSI): IPJ-REV-R420-EU12M1 Speedway R420 4-port (FCC): IPJ-REV-R420-USA2M1 Speedway R420 4-port (Japan): IPJ-REV-R420-JP22M1 Speedway R420 4-port (GX1): IPJ-REV-R420-GX12M1 Speedway R420 4-port (GX2): IPJ-REV-R420-GX22M1 Speedway R420 4-port (GX3): IPJ-REV-R420-GX32M1
See more double_arrow
