Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

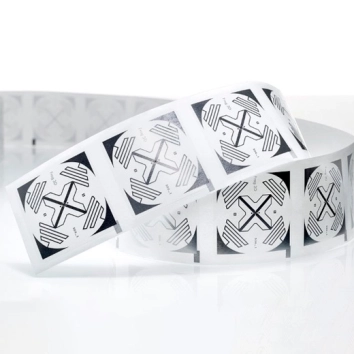

RFID Tag Smartrac Frog 3D 53mm M4D
The RFID tag Smartrac Frog 3D 53 mm M4D has been specially designed for use throughout the supply chain, through the individual identification and tracking of pallets and boxes.
This product is available for purchase in Wet Inlay format and works seamlessly on various surfaces, such as wood, glass, plastic, and non-metallic materials.
This tag has features and performance that provide a higher level of readings compared to its competitors. Additionally, we have other similar products within the same family.
Product description RFID Tag Smartrac Frog 3D 53mm M4D
The dimensions of this item are 50 x 50 mm. It has a UHF frequency range of 860 to 960 MHz and is equipped with the Monza 4D chip from Impinj, which has a 128-bit EPC memory and a 32-bit user memory. Its composition and design provide the capability of being read at a distance of up to 10 meters.
This item meets the international quality and performance requirements of ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in changing and complex environments. Additionally, it is manufactured following the highest industry quality standards, like all RFID products from Avery Dennison.
The dimensions of this tag are 68 x 68 mm, and it operates within a UHF frequency range of 860 to 960 MHz. Depending on the environment and surface where the tag is applied, it has the capability of being read at a distance of up to 13,8 meters.
It is manufactured following the highest industry quality standards, like all Avery Dennison products. Additionally, this product adheres to the international standard ISO 18000-6C, EPC Class 1 Gen 2, which means it meets the most demanding standards in the industrial and communication fields with RFID systems.
Product code:
Wet Inlay: 3002347 / IL-602690
Label/Sticker: 3002348 / IL-602691
This item has a quadratic and concentrated structure, with dimensions of 40 x 40 mm and a UHF frequency range of 860 to 960 MHz. It can be applied to surfaces such as wood, plastics, glass, and non-metallic materials. Thanks to the characteristics and composition of the product, it has a reading range of up to 10 meters, depending on the applied surface and the environment.
This tag meets international quality and performance requirements ISO 18000-63 EPC class 1 Gen 2, ensuring its proper operation in complex environments. Additionally, like all Avery Dennison RFID products, it is manufactured following the highest category performance standards in the RFID industry.
Product Code:
Label/Sticker: 3006657 / IL-603163
The composition and shape of this product give it a square structure and dimensions of 43 x 43 mm. It operates within a UHF frequency range of 860 to 960 MHz and can be easily applied to surfaces such as wood, glass, plastic, and non-metallic materials.
This tag complies with international quality and performance standards ISO 18000-63 EPC Class 2 Gen 2, ensuring its proper functioning in complex and diverse environments. Furthermore, like all RFID products from Avery Dennison, it is manufactured following the highest industry quality standards.
Product code: Wet Inlay: 3006928 / IL-603314
Dipole's Logistics labels comply with international standards ISO 18000-6C and EPC Class 1 Gen 2. They can be manufactured in various materials such as paper, polypropylene, polyethylene, thermal paper, among others. We also offer different types of adhesives, including both permanent and removable options.
These tags are easily printable using any standard RFID printer available on the market. However, if preferred, customers can also utilize Dipole's printing and encoding service to receive the finished product.
At Dipole, we work with multiple delivery formats for the convenience of our customers and provide shipping to any part of the world.
Impinj's R700 reader features 4 antenna ports and can handle up to 32 read zones, built-in GPIO, a 1Ghz dual-core processor speed, and is the only reader with up to Gigabit Ethernet connectivity.
It has the ISO 18000 63 protocol and global EPC Gen 2 v2 and the maximum benefits of a brand like Impinj, leader in the sector and with many years of experience.
Product code:
Impinj R700 (ETSI), 865-868 MHz, 915 - 921 MHz: IPJ-R700-241
Impinj R700 (FCC, GX), 902 - 928 MHz: IPJ-R700-341
Impinj R700 (Japón), 916,7 - 920,9 MHz: IPJ-R700-441
The FX7500 features a slim and attractive form factor, with a low profile and compact size that makes it suitable for virtually any business environment. It's also great for the bottom line, with an impressive set of features that add tremendous value to enterprise-grade applications.
It has a sturdy construction made of die-cast aluminum, sheet metal and plastic with dimensions of 19.56cm x 14.99cm x 4.32cm and a weight of 860 g.
Product code:
Global 4-port: FX7500-42325A50-WR
Global 2-port: FX7500-22325A50-WR
ETSI 4-port: FX7500-42321A5S-ER
The Zebra RFD40 reader has a read rate of 1300/second, which is 30% higher than its main competitors. The trigger has three different functions such as RFID reading, barcode scanning and a third one that can be configured by the user. It is a rugged product with a drop test of up to 1.5 meters and an IP54 sealing to protect against dust and water conditions, as well as an optimal operating temperature of -10°C to 50°C / 14°F to 122°F.
It has a 7,000 mAh battery, dimensions of 15.1 cm x 8.4 cm x 16.65 cm and a weight of 521g.
Zebra's RFD40 sled is the next generation model to replace the RFD2000.
Product code:
RFD4030-G00B700-WR
RFD4030-G00B700-US
RFD4030-G00B700-TN
RFD4030-G00B700-TH
RFD4030-G00B700-SL
RFD4030-G00B700-JP
RFD4030-G00B700-IN
RFD4030-G00B700-IL
RFD4030-G00B700-E8
This device boasts a robust IP54 rating, signifying its resistance to water and its ability to operate in the rain, under dripping conditions, and when subjected to splashes. Additionally, it is sealed in such a way that it can withstand the presence of solid materials larger than 1 mm and prevent dust accumulation.
The antenna has a square shape with dimensions of 259 x 259 x 34 mm and weighs 1.13 kg.
Product Codes:
S8658PR, S8658PL, S8658WPR, and S8658WPL
The device features a high degree of protection, known as IP67, which means it is completely resistant to solids larger than 1 mm in size and dust. It also has water resistance that allows it to withstand splashes, rain, dripping, water jets, and can be submerged up to 1 meter deep for 30 minutes.
The exceptional performance of this antenna results in a higher number of readings and writings compared to other competing devices, in addition to offering impressive resistance and durability.
Product Code:
S8655PR
S8655PL
The dimensions of the tag are 70 x 14 mm and may vary depending on the purchasing format. It is available in Dry Inlay, Wet Inlay, and Label/Sticker formats.
The label complies with the international quality and performance requirements ISO 18000-63 EPC Class 1 Gen 2, ensuring proper operation in complex and changing environments. Additionally, like all NXP RFID products, it is manufactured to meet the industry's strictest quality requirements.
Belt NXP UCODE 9 is available in different configurations, offering a wide range of options to suit the specific needs of each business.
Product Code:
Dry Inlay: 3008008 / IL-604003
Wet Inlay: 3008009 / IL-604004 (73 x 17 mm)
Label/Sticker: 3008010 / IL-604005 (73 x 17 mm)
RFID Tags Avery Dennison Smartracs Belt NXP UCODE 8 have been designed for unit product identification in order to control logistics processes and retail applications. Specially designed to be detected at great distances and with a RF designed to avoid coupling. They can be inserted directly into plastic and cardboard materials, making easy to convert and to insert it in any type of application. It has a compact size of 73 x 13 mm and comes equipped with the NXP UCODE 8.
Product code:
Dry inlay: 3006809
Wet inlay: 3006818
Label / sticker: 3006806
The dimensions of this product are 44 x 28 mm, and it has a UHF frequency range of 860 - 960 MHz. Moreover, it functions smoothly on surfaces such as wood, glass, various types of plastics, and non-metallic materials.
Like all RFID products from Avery Dennison, Eagle NXP Ucode 8 tags are manufactured to the highest industry quality standards and comply with ISO 18000-63 Type C. Additionally, they have EPC Class 1 Gen 2 memory, which provides high performance in complex environments.
Product Code:
Dry Inlay: 3007014 / IL-603372
Label/Sticker: 3007016 / IL-603373
The Dogbone Dura operates in the UHF Global 860-960 frequency band and has dimensions of 127 x 27 mm. Its robust and durable design allows it to function in demanding environments and adhere to difficult-to-label surfaces such as wood or glass.
The tag complies with international quality and performance standards ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in complex environments. Additionally, like all Avery Dennison RFID products, it is manufactured following the highest industry quality standards.
The Dogbone Dura is available in different configurations, offering a wide range of options to suit the specific needs of each business.
Product code:
Dry inlay: 3006914
Wet inlay: 3006915
The Dogbone M730 operates in the UHF Global frequency band 860-960 and has dimensions of 97 x 27 mm. Its robust and resistant design allows it to function in demanding environments and adhere to difficult-to-label surfaces, such as wood or glass.
This tag complies with international standards for quality and performance ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in complex environments. Additionally, like all RFID products from Avery Dennison, it is manufactured following the highest industry quality standards.
The Dogbone M730 is available in different configurations, offering a wide range of options to suit the specific needs of each business.
Product code:
Dry Inlay: 3008223 / IL-604163
Wet Inlay: 3008445 / IL-604318
Label: 3008054 / IL-604042
The AD-173u8 tag features the UCODE 8 chip by NXP, with 128 bits of EPC memory and a 96-bit Tag Identifier (TID). The product is available in Label/Sticker format and performs optimally in temperatures ranging from -40 °C to 85 °C.
Like all RFID products by Avery Dennison, the AD-173u8 labels are manufactured to the highest industry quality standards and comply with ISO 18000-63 Type C.
Product code:
Label/Sticker: RF100478 / IL-603737
The Avery Dennison AD-163u8 rfid tags have been designed with a compact 60 x 4 mm format that can be detected up to 7 meters away. It comes equipped with the NXP UCODE 8 chip with 128-bit EPC memory and 48-bit TID.
Product code:
Dry inlay: RF601236
Wet inlay: RF601235
Label / sticker: RF100479
