RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

RFID Tag Smartrac Belt Impinj M730

The RFID Tag Smartrac Belt Impinj M730 has a specific design for the textile and automotive sectors. It offers high performance in challenging labeling materials.

This product incorporates the Impinj M730 chip, which, thanks to its adaptive RF tuning functions, delivers diverse performance across different materials and in complex environments.

This chip offers the latest in technology. It provides precise and fast reading even in product-dense scenarios, features a privacy function that protects customers from data loss, and safeguards consumers by granting invisibility to RAIN readers.

Download datasheet double_arrow

Product description RFID Tag Smartrac Belt Impinj M730

The product is available in Dry Inlay, Wet Inlay, and Label/Sticker formats. It has dimensions of 70 x 14 mm and operates within a UHF frequency range of 860 - 960 MHz. Additionally, it has a wide reading range, and depending on the type of material, it can be read from a distance of up to 19 meters.

This tag complies with international quality and performance standards ISO 18000-63 EPC class 1 Gen 2, ensuring its proper functioning in complex environments. Furthermore, like all Avery Dennison RFID products, it is manufactured following the highest industry quality standards.

Product Code:

Dry Inlay: 3007862 / IL-603906

Wet Inlay: 3007863 / IL-603907

Label/Sticker: 3007861 / IL-603905

UHF

Inlays and Tags

Impinj Monza M730

-40 °C to 85 °C / -40 °F to 185 °F

Wood, Plastic, Non Metal, Glass

Label / Sticker, Wet Inlay, Dry Inlay

ISO/IEC 18000-63, EPC Gen2 V2

128 bits, 96 bits

UHF Global 860-960 MHz

73mm × 17mm

2.87in × 0.67in

You may also be interested in

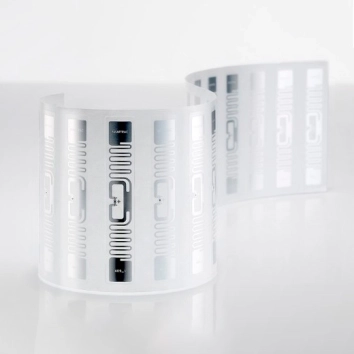

RFID Tag Smartrac Belt Monza R6

The article has an elongated and narrow structure, with dimensions of 70 x 10 mm, and it operates in the UHF frequency band of 860 - 960 MHz. Depending on the material and frequency at the time of identification, it can be read from a distance of up to 13 meters. The tag complies with the international quality and performance standards ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper operation in complex and diverse environments. Additionally, like all Avery Dennison products, they are manufactured following the highest industry quality standards in RFID technology. Product code: Dry Inlay: 3004228 / IL-602819 Wet Inlay: 3005058 / IL-602868 Label/Sticker: 3004230 / IL-602821

See more double_arrow

RFID Tag Smartrac Belt NXP UCODE 7

The article has an elongated and slim structure, with dimensions of 70 x 10 mm. It operates in the UHF frequency range of 860 - 960 MHz and is available in Wet Inlay format. The tag meets international quality and performance standards ISO 18000-63 EPC Class 1 Gen 2, ensuring proper operation in complex and changing environments. Additionally, like all NXP RFID products, it has been manufactured following the industry's most stringent quality requirements. The NXP UCODE 7 Belt is available in different configurations, offering a wide range of options to suit the specific needs of each business. Product code: Wet Inlay: 3003011 / IL-602767

See more double_arrow

RFID Tag Smartrac Belt NXP UCode G2iL

This product is available in Wet Inlay and Label/Sticker formats. It operates on the UHF frequency band of 860 - 960 MHz and has an elongated design with dimensions of 70 x 14 mm. Depending on the surface and environment, it has the capability to be read at a range of up to 11 meters. This tag, like all Avery Dennison products, complies with ISO 9001:2015 quality management standards and ISO 14001:2015 environmental management standards, ensuring a reliable and high-quality product that meets the highest standards in the industrial and RFID communication systems world. Product Code: Wet Inlay: 3001963 / IL-602585 Label/Sticker: 3001964 / IL-602586

See more double_arrow

RFID UHF Reader R700 Impinj

Impinj's R700 reader features 4 antenna ports and can handle up to 32 read zones, built-in GPIO, a 1Ghz dual-core processor speed, and is the only reader with up to Gigabit Ethernet connectivity. It has the ISO 18000 63 protocol and global EPC Gen 2 v2 and the maximum benefits of a brand like Impinj, leader in the sector and with many years of experience. Product code: Impinj R700 (ETSI), 865-868 MHz, 915 - 921 MHz: IPJ-R700-241 Impinj R700 (FCC, GX), 902 - 928 MHz: IPJ-R700-341 Impinj R700 (Japón), 916,7 - 920,9 MHz: IPJ-R700-441

See more double_arrow

Universal Laird S8658 RFID Antenna

This device boasts a robust IP54 rating, signifying its resistance to water and its ability to operate in the rain, under dripping conditions, and when subjected to splashes. Additionally, it is sealed in such a way that it can withstand the presence of solid materials larger than 1 mm and prevent dust accumulation. The antenna has a square shape with dimensions of 259 x 259 x 34 mm and weighs 1.13 kg. Product Codes: S8658PR, S8658PL, S8658WPR, and S8658WPL

See more double_arrow

RFID and NFC Label Printing and Encoding

Customization of tags We can customize and encode tags with the data you request. Print and encode a barcode. Print images, QR or other necessary data. Encrypt information How can we encode in rfid tags? Data from 96 bits up to 496 bits: encode the EPC Decimal or Hexadecimal format. Encrypt tags with passwords in their corresponding memory, Other types upon request How can we customize in NFC tags? Web pages or URL Texts or ID numbers Contact Information Other types of information

See more double_arrow

RFID Logistic Label

Dipole's Logistics labels comply with international standards ISO 18000-6C and EPC Class 1 Gen 2. They can be manufactured in various materials such as paper, polypropylene, polyethylene, thermal paper, among others. We also offer different types of adhesives, including both permanent and removable options. These tags are easily printable using any standard RFID printer available on the market. However, if preferred, customers can also utilize Dipole's printing and encoding service to receive the finished product. At Dipole, we work with multiple delivery formats for the convenience of our customers and provide shipping to any part of the world.

See more double_arrow

Standard RFID Labels

The label adhesives are available in all ranges, from permanent to removable, allowing for a wide range of applications. Dipole manufactures Standard RFID tags with a wide variety of sizes and are ideal for thermal printers or printers with ribbon. They are customizable in all features such as EPC memory, material (paper, cardboard, polyamide, polyethylene, etc.), a variety of adhesives (permanent, removable, for liquids, etc.), or by adding an EAS system. At Dipole, we offer different delivery formats for greater convenience according to customer needs, and we ship worldwide.
