RFID Reader Zebra FX7500

The new Zebra FX9600 UHF RFID reader offers great performance thanks to the 600Mhz AM3505 processor. The frequency of the reader is global 865-928 MHz. It can be configured with the specific band of the country. It has two different versions: - FX9600 4 ports - FX9600 8 ports The reader is used for high volume label applications. It is designed to withstand humid, dusty work environments and at different temperatures thanks to its IP53. It has a compact size of 27.3 x 18.4 x 5 cm and a weight of 2.13 kg. It is powered via PoE, PoE +, and an external 24v power supply. It has a transmit power of +33 dBm with PoE + or 24v DC and 32.5 dBm with POE or 12V DC. It can be combined with FX connect software that allows you to configure and integrate it quickly and easily without the need for API or application development. Product code: -4 ports version: FX96000-42325A50-WR -8 ports version: FX96000-82325A50-WR

The Speedway Revolution Autopilot transmits only when the tags are in the work area, keeping the air clear of unnecessary RF noise, and records the location of the tags in the work area by automatically focusing on the antennas that are reading the highest density of tags. It incorporates 2 antenna ports and up to 16 reading zones, with a reading rate of up to 200 tags per second. It has the ISO 18000 63 / EPC GEN2 V2 protocol. Product code: ETSI: IPJ-REV-R220-EU12M1 FCC : IPJ-REV-R220-USA2M1 GX1 : IPJ-REV-R220-GX12M1 GX2 : IPJ-REV-R220-GX22M1

The Impinj R420 has 4 ports for antennas with the capacity to manage up to 32 reading zones, a maximum transmission power of 32.5 dBm and has the option of incorporating a GPIO. With this reader we achieve a reading rate of up to 1,100 readings per second. It has the ISO 18000 63 protocol and global EPC Gen 2 v2 and the maximum benefits of a brand like Impinj, leader in the sector and with many years of experience. Product code: Speedway R420 4-port (ETSI): IPJ-REV-R420-EU12M1 Speedway R420 4-port (FCC): IPJ-REV-R420-USA2M1 Speedway R420 4-port (Japan): IPJ-REV-R420-JP22M1 Speedway R420 4-port (GX1): IPJ-REV-R420-GX12M1 Speedway R420 4-port (GX2): IPJ-REV-R420-GX22M1 Speedway R420 4-port (GX3): IPJ-REV-R420-GX32M1

Impinj's R700 reader features 4 antenna ports and can handle up to 32 read zones, built-in GPIO, a 1Ghz dual-core processor speed, and is the only reader with up to Gigabit Ethernet connectivity. It has the ISO 18000 63 protocol and global EPC Gen 2 v2 and the maximum benefits of a brand like Impinj, leader in the sector and with many years of experience. Product code: Impinj R700 (ETSI), 865-868 MHz, 915 - 921 MHz: IPJ-R700-241 Impinj R700 (FCC, GX), 902 - 928 MHz: IPJ-R700-341 Impinj R700 (Japón), 916,7 - 920,9 MHz: IPJ-R700-441

The Zebra AN510 is an antenna for industrial use as it has IP67 sealing certification that perfectly isolates it from dusty and watery environments to be able to work in environments with a large number of particles in the environment without affecting its performance. It has right circular polarization and SMA Female connection located on the side of the antenna, 68º opening angle, 1 dB axial ratio and 3 v maximum power. Its dimensions are 25 cm x 25 cm x 1.1 cm and a total weight of 750 grams. The optimum operating temperature provided by the manufacturer is from -20C to +55 ºC. Product code: ETSI frequency: AN510-CSCL60004E (Vesa studded mount) ETSI frequency: AN510-CFCL60002E (Flush mount)

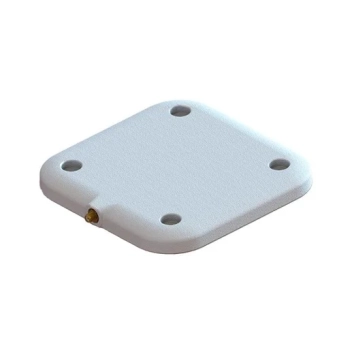

The Zebra AN520 has IP68 sealing certification to guarantee its correct operation in any type of installation, both indoors and outdoors, regardless of inclement weather or if there is a lot of dust in the environment. It uses ETSI: 865-868 MHz and FCC: 902-928 MHz frequencies and is right-hand circularly polarized. It has an SMA female connector on one side to be able to connect it to the reader. It has very compact dimensions of 15 cm x 15 cm x 1.4 cm and weighs only 250 grams. Its optimum operating temperature is from -40 ºC to +64 ºC. Product code: ETSI frequency: AN520-FCL60011EU (Flush mount) FCC frequency: AN520-FCL60010US (Flush mount)

The AN650 Ground RFID Antenna is great for tracking RFID tags traveling through doors and other chokepoints. The ultra-low profile design means it fits in seamlessly in nearly any environment and provides the ability to be hidden under a mat or other covering. This antenna is just 8 mm thin and can withstand payloads of over 440 lbs. making it great for use cases such as conference/trade show attendee tracking, employee/people tracking, loyalty marketing, and race timing. Product code: ETSI: AN650-FCL71324EU

This device boasts a robust IP54 rating, signifying its resistance to water and its ability to operate in the rain, under dripping conditions, and when subjected to splashes. Additionally, it is sealed in such a way that it can withstand the presence of solid materials larger than 1 mm and prevent dust accumulation. The antenna has a square shape with dimensions of 259 x 259 x 34 mm and weighs 1.13 kg. Product Codes: S8658PR, S8658PL, S8658WPR, and S8658WPL

The device features a high degree of protection, known as IP67, which means it is completely resistant to solids larger than 1 mm in size and dust. It also has water resistance that allows it to withstand splashes, rain, dripping, water jets, and can be submerged up to 1 meter deep for 30 minutes. The exceptional performance of this antenna results in a higher number of readings and writings compared to other competing devices, in addition to offering impressive resistance and durability. Product Code: S8655PR S8655PL
