RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

RFID Tag Smartrac Dogbone Impinj M730

The RFID tag Avery Dennison Dogbone Impinj M730 is specially designed to meet the needs of various applications in the global supply chain, industrial sectors, asset management, and sports timing. This innovative label utilizes high-quality RFID technology, enabling companies to optimize their logistics and asset management efficiently.

Equipped with the powerful Impinj M730 chip, this tag has a 128-bit EPC memory. The chip offers higher reading and writing sensitivity, allowing for faster and more accurate mass reading compared to previous technology.

Download datasheet double_arrow

Product description RFID Tag Smartrac Dogbone Impinj M730

The Dogbone M730 operates in the UHF Global frequency band 860-960 and has dimensions of 97 x 27 mm. Its robust and resistant design allows it to function in demanding environments and adhere to difficult-to-label surfaces, such as wood or glass.

This tag complies with international standards for quality and performance ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in complex environments. Additionally, like all RFID products from Avery Dennison, it is manufactured following the highest industry quality standards.

The Dogbone M730 is available in different configurations, offering a wide range of options to suit the specific needs of each business.

Product code:

Dry Inlay: 3008223 / IL-604163

Wet Inlay: 3008445 / IL-604318

Label: 3008054 / IL-604042

UHF

Inlays and Tags

Impinj Monza M730

-40 °C to 85 °C / -40 °F to 185 °F

Wood, Plastic, Non Metal, Glass

Label / Sticker, White Wet Inlay, Dry Inlay

ISO 18000-63, EPC Class 1 Gen 2

128 bits, 96 bits

UHF Global 860-960 MHz

97mm × 27mm

3.82in × 1.06in

You may also be interested in

RFID Tag Smartrac Dogbone NXP UCODE 8

The Dogbone UCODE 8 operates in the UHF Global 860-960 frequency band and has dimensions of 97 x 27 mm. Its robust and durable design allows it to function in demanding environments and adhere to difficult-to-label surfaces such as wood or glass. The tag complies with international quality and performance standards ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in complex environments. Additionally, like all NXP RFID products, it is manufactured following the highest industry quality standards. The Dogbone UCODE 8 is available in different configurations, offering a wide range of options to suit the specific needs of each business. Product code: Dry Inlay: 3006908 / IL-603295 Wet Inlay: 3006910 / IL-603297 Label / Sticker: 3006909 / IL-603296

See more double_arrow

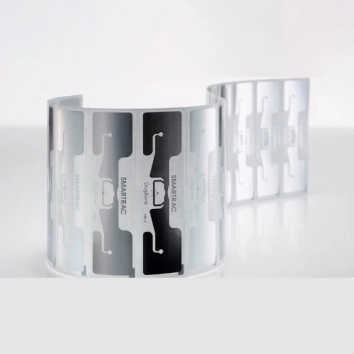

RFID Tag Smartrac Dogbone Impinj Monza 4D

The Dogbone 4D operates in the UHF Global frequency band of 860-960 MHz and has dimensions of 97 x 27 mm. Its robust and durable design allows it to function in demanding environments and adhere to difficult-to-label surfaces such as wood or glass. The tag complies with international quality and performance standards ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper operation in complex environments. Additionally, like all RFID products from Avery Dennison, it is manufactured according to the highest industry quality standards. The Dogbone 4D is available in different configurations, offering a wide range of options to suit the specific needs of each business. Product code: Dry Inlay: 3001873 / IL-602568 Wet Inlay: 3001874 / IL-602569 Label/Sticker: 3001878 / IL-602573

See more double_arrow

RFID Labels Dipole PRO

Regarding technical specifications, the RFID tags from the Dipole PRO family operate in the UHF frequency range (860 - 960 MHz) and use IC from the renowned brand Impinj. The EPC memory varies depending on the chosen IC family, providing flexible data storage options. Manufactured with high-quality polyester, these tags offer exceptional durability and a surface suitable for thermal transfer printing. Complying with ISO 18000-6C Class 1 Generation 2 standards, the Dipole PRO family tags guarantee reliable compatibility and performance in a wide variety of applications. Additionally, they come equipped with high-strength adhesive, ensuring a durable and secure attachment.

See more double_arrow

RFID Label Dipole PASS

The Dipole PASS tag operates in the UHF frequency range (860-960 MHz) and is compatible with various types of IC, including Impinj, NXP, and Higgs. Its EPC memory varies depending on the IC family, and they are made of high-durability plastic material. They comply with ISO 18000-6C Class 1 Generation 2 standards and feature a high-resistance adhesive. Their size is fully customizable, with an example dimension of 97x27 mm. Additionally, they can withstand temperatures ranging from -40 °C to +85 °C, making them suitable for use in a wide range of weather conditions.

See more double_arrow

RFID Labels Dipole Timing

Using UHF technology (860-960 MHz), these tags offer exceptional performance and unparalleled accuracy in the market. With a thickness ranging from 0.25 to 5 mm, Dipole Timing tags are the thinnest and most precise ones available in the current market and comply with ISO 18000-6C Class 1 Generation 2 standards, ensuring their quality and compatibility with existing systems. With a wide operating temperature range from -40°C to +85°C, these tags can withstand extreme conditions and continue to function optimally.

See more double_arrow

RFID UHF Reader R700 Impinj

Impinj's R700 reader features 4 antenna ports and can handle up to 32 read zones, built-in GPIO, a 1Ghz dual-core processor speed, and is the only reader with up to Gigabit Ethernet connectivity. It has the ISO 18000 63 protocol and global EPC Gen 2 v2 and the maximum benefits of a brand like Impinj, leader in the sector and with many years of experience. Product code: Impinj R700 (ETSI), 865-868 MHz, 915 - 921 MHz: IPJ-R700-241 Impinj R700 (FCC, GX), 902 - 928 MHz: IPJ-R700-341 Impinj R700 (Japón), 916,7 - 920,9 MHz: IPJ-R700-441

See more double_arrow

Handheld RFID Reader Zebra MC3390xR

The MC3390xR RFID reader achieves up to 900 reads per second with its integrated linearly polarized antenna and a read range of up to 18.2 meters. It is designed for use in semi-industrial environments as it has protection against falls of up to 1.5 meters in height and with IP54 protection so you don't have to worry if you work in an environment full of dust or humidity. It has integrated NFC to be able to link the reader to printers and other types of RFID products in an easy way. In addition, it has Bluetooth, WLAN and USB 2.0. Its optimum operating temperature is -20 °C to 50 °C Part numbre: Código de producto: MC339U-GE2EG4EU MC339U-GF3EG4EU MC339U-GE4EG4EU MC339U-GF2EG4EU MC339U-GF4EG4US-1SKT MC339U-GF4EG4US MC339U-GF4EG4EU MC339U-GE3EG4EU-1SKT MC339U-GE3EG4EU MC339U-GE2EG4EU-1SKT MC339U-GF4EG4EU-1SKT MC339U-GE4EA4CN-1SKT

See more double_arrow

RFID Antenna Zebra AN510

The Zebra AN510 is an antenna for industrial use as it has IP67 sealing certification that perfectly isolates it from dusty and watery environments to be able to work in environments with a large number of particles in the environment without affecting its performance. It has right circular polarization and SMA Female connection located on the side of the antenna, 68º opening angle, 1 dB axial ratio and 3 v maximum power. Its dimensions are 25 cm x 25 cm x 1.1 cm and a total weight of 750 grams. The optimum operating temperature provided by the manufacturer is from -20C to +55 ºC. Product code: ETSI frequency: AN510-CSCL60004E (Vesa studded mount) ETSI frequency: AN510-CFCL60002E (Flush mount)

See more double_arrow

RFID Antenna Zebra AN720

The Zebra AN720 is equipped with IP67 sealing to make it totally resistant to any inclement weather that may be in the area of use, being able to work in environments where there are dust particles or water and the CEI-68-2-30 certificate for humidity protection to ensure that its performance is not affected whatever the environmental situation. We find a left-wing circular polarization antenna with a type N female connection at the rear and a frequency of 865-868 Mhz for the European Union and 902-928 Mhz for the United States. It has adjusted dimensions of 13.28 cm x 13.28 cm x 1.81 cm and a weight of 370 g. The optimum operating temperature for this antenna is -25° to +70°C/-13° to +158°F. Product code: AN720-L51NF00WEU

See more double_arrow

Universal Laird S8658 RFID Antenna

This device boasts a robust IP54 rating, signifying its resistance to water and its ability to operate in the rain, under dripping conditions, and when subjected to splashes. Additionally, it is sealed in such a way that it can withstand the presence of solid materials larger than 1 mm and prevent dust accumulation. The antenna has a square shape with dimensions of 259 x 259 x 34 mm and weighs 1.13 kg. Product Codes: S8658PR, S8658PL, S8658WPR, and S8658WPL

See more double_arrow

RFID Tag Avery Dennison AD-173u8

The AD-173u8 tag features the UCODE 8 chip by NXP, with 128 bits of EPC memory and a 96-bit Tag Identifier (TID). The product is available in Label/Sticker format and performs optimally in temperatures ranging from -40 °C to 85 °C. Like all RFID products by Avery Dennison, the AD-173u8 labels are manufactured to the highest industry quality standards and comply with ISO 18000-63 Type C. Product code: Label/Sticker: RF100478 / IL-603737

See more double_arrow

RFID Tag Smartrac Belt NXP UCODE 9

The dimensions of the tag are 70 x 14 mm and may vary depending on the purchasing format. It is available in Dry Inlay, Wet Inlay, and Label/Sticker formats. The label complies with the international quality and performance requirements ISO 18000-63 EPC Class 1 Gen 2, ensuring proper operation in complex and changing environments. Additionally, like all NXP RFID products, it is manufactured to meet the industry's strictest quality requirements. Belt NXP UCODE 9 is available in different configurations, offering a wide range of options to suit the specific needs of each business. Product Code: Dry Inlay: 3008008 / IL-604003 Wet Inlay: 3008009 / IL-604004 (73 x 17 mm) Label/Sticker: 3008010 / IL-604005 (73 x 17 mm)

See more double_arrow

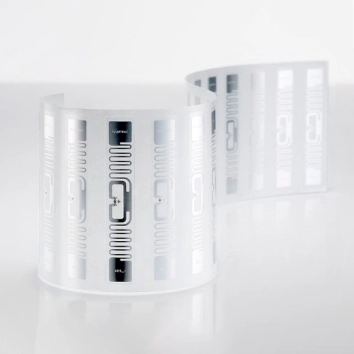

RFID Tag Smartrac Belt NXP UCODE 8
