RFID Tag Smartrac Belt NXP UCODE 8

Smartracs Belt inlays are designed for unit product identification in order to control logistics processes and retail applications. Specially designed to be detected at great distances and with a RF designed to avoid coupling.

Download datasheet double_arrow

Product description RFID Tag Smartrac Belt NXP UCODE 8

RFID Tags Avery Dennison Smartracs Belt NXP UCODE 8 have been designed for unit product identification in order to control logistics processes and retail applications. Specially designed to be detected at great distances and with a RF designed to avoid coupling. They can be inserted directly into plastic and cardboard materials, making easy to convert and to insert it in any type of application. It has a compact size of 73 x 13 mm and comes equipped with the NXP UCODE 8.

Product code:

Dry inlay: 3006809

Wet inlay: 3006818

Label / sticker: 3006806

UHF

Inlays and Tags

NXP UCODE 8

-40 °C to 85 °C / -40 °F to 185 °F

Wood, Plastic, Non Metal, Glass

Label / Sticker, Wet Inlay, Dry Inlay

ISO 18000-63, EPC Class 1 Gen 2

128 bits

UHF Global 860-960 MHz

73mm × 17mm

2.87in × 0.67in

You may also be interested in

RFID Handheld Reader Zebra RFD40

The Zebra RFD40 reader has a read rate of 1300/second, which is 30% higher than its main competitors. The trigger has three different functions such as RFID reading, barcode scanning and a third one that can be configured by the user. It is a rugged product with a drop test of up to 1.5 meters and an IP54 sealing to protect against dust and water conditions, as well as an optimal operating temperature of -10°C to 50°C / 14°F to 122°F. It has a 7,000 mAh battery, dimensions of 15.1 cm x 8.4 cm x 16.65 cm and a weight of 521g. Zebra's RFD40 sled is the next generation model to replace the RFD2000. Product code: RFD4030-G00B700-WR RFD4030-G00B700-US RFD4030-G00B700-TN RFD4030-G00B700-TH RFD4030-G00B700-SL RFD4030-G00B700-JP RFD4030-G00B700-IN RFD4030-G00B700-IL RFD4030-G00B700-E8

See more double_arrow

Impinj Speedway Revolution Reader R420 RFID UHF

The Impinj R420 has 4 ports for antennas with the capacity to manage up to 32 reading zones, a maximum transmission power of 32.5 dBm and has the option of incorporating a GPIO. With this reader we achieve a reading rate of up to 1,100 readings per second. It has the ISO 18000 63 protocol and global EPC Gen 2 v2 and the maximum benefits of a brand like Impinj, leader in the sector and with many years of experience. Product code: Speedway R420 4-port (ETSI): IPJ-REV-R420-EU12M1 Speedway R420 4-port (FCC): IPJ-REV-R420-USA2M1 Speedway R420 4-port (Japan): IPJ-REV-R420-JP22M1 Speedway R420 4-port (GX1): IPJ-REV-R420-GX12M1 Speedway R420 4-port (GX2): IPJ-REV-R420-GX22M1 Speedway R420 4-port (GX3): IPJ-REV-R420-GX32M1

See more double_arrow

RFID and NFC Label Printing and Encoding

Customization of tags We can customize and encode tags with the data you request. Print and encode a barcode. Print images, QR or other necessary data. Encrypt information How can we encode in rfid tags? Data from 96 bits up to 496 bits: encode the EPC Decimal or Hexadecimal format. Encrypt tags with passwords in their corresponding memory, Other types upon request How can we customize in NFC tags? Web pages or URL Texts or ID numbers Contact Information Other types of information

See more double_arrow

RFID Tag Smartrac Belt Impinj M730

The product is available in Dry Inlay, Wet Inlay, and Label/Sticker formats. It has dimensions of 70 x 14 mm and operates within a UHF frequency range of 860 - 960 MHz. Additionally, it has a wide reading range, and depending on the type of material, it can be read from a distance of up to 19 meters. This tag complies with international quality and performance standards ISO 18000-63 EPC class 1 Gen 2, ensuring its proper functioning in complex environments. Furthermore, like all Avery Dennison RFID products, it is manufactured following the highest industry quality standards. Product Code: Dry Inlay: 3007862 / IL-603906 Wet Inlay: 3007863 / IL-603907 Label/Sticker: 3007861 / IL-603905

See more double_arrow

RFID Tag Smartrac Belt NXP UCode G2iL

This product is available in Wet Inlay and Label/Sticker formats. It operates on the UHF frequency band of 860 - 960 MHz and has an elongated design with dimensions of 70 x 14 mm. Depending on the surface and environment, it has the capability to be read at a range of up to 11 meters. This tag, like all Avery Dennison products, complies with ISO 9001:2015 quality management standards and ISO 14001:2015 environmental management standards, ensuring a reliable and high-quality product that meets the highest standards in the industrial and RFID communication systems world. Product Code: Wet Inlay: 3001963 / IL-602585 Label/Sticker: 3001964 / IL-602586

See more double_arrow

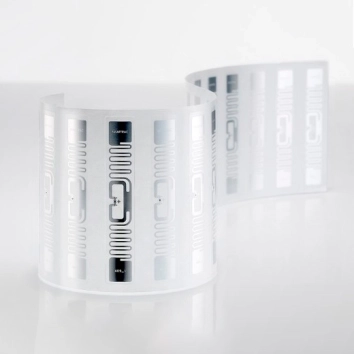

RFID Tag Smartrac Belt NXP UCODE 7XM
