Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.
RFID Tag HID Poly Tag Unique
The RFID HID Poly Tag Unique represent a revolution in efficient waste and logistics management. Specifically designed to be inserted into plastic waste containers, both residential and commercial/industrial, these transponders offer high-quality automated tracking through RFID identification.
The robust design of the Plug Tag is one of its main features. The highly durable casing protects the built-in electronics, ensuring reliable performance in the harshest environments, from waste management to logistics.
The Poly Tags incorporate Unique chips that operate at the LF 125 kHz frequency. Each tag is completely waterproof and provides consistent reading across a wide range of temperatures, from -20°C to 85°C.
In terms of physical specifications and durability, the tags are made of PA6 material and come in black color. Their compact design has a diameter of 34 mm, a height of 8 mm on the axis, and a diameter of 0.59 inches for the cap. They are waterproof, complying with the IP68 standard, and demonstrate exceptional resistance to flames, vibrations, and impacts, according to international standards.
HID Bin Tag Unique uses a Low Frequency (LF) frequency of 134.2 kHz and has 128-bit read memory. These tags are made from red polyamide, measure 30mm x 15mm x 30mm and weigh just 6.4g. The read range of the tag will depend on the reader used, the environmental conditions and the surface on which it is placed.
The tag is rated IP67 waterproof and can withstand extreme temperatures ranging from -40 °C to 90 °C. In addition, it has shock (IEC 68.2.29) and vibration (IEC 68.2.6) resistance certifications to ensure optimal performance even in adverse conditions.
Product code:
6B7104-102R
It has a circular shape with a diameter of 15 mm and a thickness of 2,8 mm. Additionally, it operates at the HF frequency of 13,56 MHz and is available in an attractive light blue color.
This tag has been manufactured following the highest industry quality standards, ensuring excellence in performance and durability. It complies with international standards for quality and performance ISO 18000-3 Mode 1, guaranteeing proper functioning in complex environments. Furthermore, it meets the ISO 15693 standard, which implies high performance when being read.
Product code:
Standard version: BluTag TL340E01
This product operates in the UHF frequency range, specifically between 860 and 960 MHz. Additionally, its composition and structure provide high resistance to withstand different temperatures, such as:
Maximum temperature: 220 °C (428 °F) / 15 seconds
Exposure: 36,25 PSI (2,5 bars)
Washing tunnel: 90 °C (194 °F) / 15 minutes
Pre-drying: 160 °C (320 °F) / 30 minutes
Final tunnel: 185 °C (365 °F) / 30 minutes
Sterilization: 134 °C (273 °F) / 20 minutes
Water extraction press: 60 bars
Chemical resistance: All standard chemicals used in laundry processes
Warranty: 200 cycles or 3 years
Product code:
Standard version: Dipole Tex Tag C15H-TL730E03H
The Logitag 120 operates in the LF frequency at 125 kHz. There are three versions with three different chips: Hitag S, Q5, and Unique. Among the technical features, they are resistant to temperatures ranging from -25º C to +85º C, and they are also certified with an IP68 water resistance rating, ensuring usability in extreme conditions.
They have a compact size of only 12 mm in diameter and 2 mm in height, constructed with PPS and Epoxy and weighing 0.6 grams.
Product Code:
624115-001
612115
601115-102

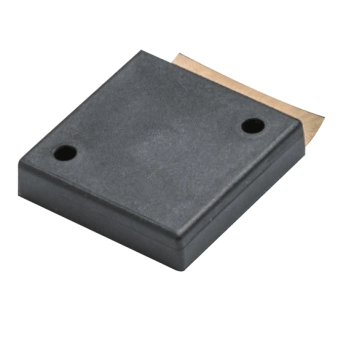

The IronTag 206F operate at frequencies of 865-868 MHz and 902-928 MHz, in line with ETSI and FCC regulations, respectively. They incorporate a Monza X chip and have a memory capacity of 8192 bits. Made of PPS and measuring 31 x 31 x 6.9 mm, they weigh 13 grams. Their IP67 rating makes them water-resistant, and they can operate in environments from -40° to +85° C. Additionally, they are immune to damage from oils, saltwater, ultraviolet rays, and high-pressure and temperature washes.
Though built to be durable, they do not compromise on efficiency. They have an impressive read capability with a range of up to 2 meters, and thanks to their 8192 bits of user memory, they offer extensive storage capacity. Their design allows them to be attached to any metallic surface with industrial adhesives, ensuring versatility.
Product code:
6D3905
Their technical specifications are impressive. They operate at the HF frequency of 13.56 MHz and are offered in two distinct versions: one with the Vigo chip and the other with the ICODE SLIX chip. Their resistance to extreme temperature variations, ranging from -40°C to +90°C, is noteworthy. The IP68 certification they hold attests to their ability to withstand water immersion, validating their effectiveness in demanding contexts.
With a compact and slim design, these discs measure 12.4 mm in diameter and 2 mm in height. Manufactured with robust materials like PPS and Epoxy, they weigh only 0.4 grams. Their lightweight nature, coupled with their durability, makes them favored choices for various reliability-demanding applications.
Product codes to consider:
6A9121-310 (Vigo 1K)
6D0121-310 (Vigo 2K)
629121-310 (SLIX)
The tags are characterized by operating at an HF frequency of 13.56 MHz and are available in two models, one with an F-Mem chip and another with the ICODE SLIX 2 chip. Their ability to withstand temperatures ranging from -40°C to +85°C, along with an IP68 certification, demonstrates their suitability for immersion in liquids, validating their effectiveness in demanding environments.
With a sleek and compact design, these discs have a diameter of only 16 mm and a height of 3 mm. Manufactured with robust materials like PPS, their lightweight of only 1 gram makes them perfect for applications that require durability and precision.
Product Codes:
629108-411
629108-412-EX (ATEX/IECEx)
629108-401 (ICODE SLIX)
629108-401-EX (ICODE SLIX - ATEX/IECEx)
634108-410 (F-Mem 2K)
6D1108-410 (F-Mem 8K)
Poly Tags incorporate Icode chips that operate at a frequency of 13.56 MHz in the HF range. Each tag is completely waterproof and provides consistent reading across a wide temperature range, from -20°C to 85°C.
In terms of physical specifications and durability, the tags are made of PA6 material and come in black color. Their compact design has a diameter of 34 mm They are waterproof, complying with the IP68 standard, and exhibit exceptional resistance to flames, vibrations, and impacts, in accordance with international standards.
Product Code:
629131-012
629131-014
629131-014-EX (ATEX)
They incorporate the FDX-b BDE chip, which operates at a frequency of 134.2 kHz. In terms of physical specifications and durability, the tags are made of PA6 material and come in black color. Their compact design has a diameter of 9 mm and a height of 19 mm, with a 15mm diameter cap. They are waterproof, complying with the IP68 standard, and exhibit exceptional resistance to flames, vibrations, and impacts, in accordance with international standards.
Product Code:
684921-002
They incorporate the Unique chip that operates at a frequency of 131 kHz. In terms of physical specifications and durability, the tags are made of PA6 material and come in black color. Their compact design has a diameter of 9 mm and a height of 19 mm, with a 15mm diameter cap. They are water-resistant, complying with the IP68 standard, and exhibit exceptional resistance to flames, vibrations, and impacts, in accordance with international standards.
Product Code:
601920-001
