Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.
RFID Tag HID Plug Unique
The HID Logitag 120 RFID tags offer an exceptional solution for the identification and tracking of plastic containers intended for waste in residential, commercial, and industrial environments.
The durable casing of the Plug Tag protects the built-in electronic components, providing reliable performance even in rigorous waste management and logistics settings. Each tag is completely waterproof and can be consistently read, even when temperatures drop to -20°C or reach 85°C.
They can be securely inserted into the standard perforated holes of waste containers, ensuring they remain in place throughout the container's lifecycle.
They incorporate the Unique chip that operates at a frequency of 131 kHz. In terms of physical specifications and durability, the tags are made of PA6 material and come in black color. Their compact design has a diameter of 9 mm and a height of 19 mm, with a 15mm diameter cap. They are water-resistant, complying with the IP68 standard, and exhibit exceptional resistance to flames, vibrations, and impacts, in accordance with international standards.
The HID Bin Tag Unique works with a 125 kHz LF frequency with a 64-bit read memory. It is made of black polyamide, with a size of 30 mm x 15 mm x 28.5 mm and a weight of only 6.4g. The read range that this tag can offer will vary depending on the reader, environmental conditions, and the surface where the tag is attached.
It has IP 67 environmental resistance to water resistant in extreme temperature conditions from -40° to 90° C. It is also certified for IEC 68.2.29 shock and IEC 68.2.6 vibrations to guarantee maximum performance even if the conditions of use are complicated.
Product code:
701133-106
This product operates in the UHF frequency range of 860 to 960 MHz and is certified with MR, which means that the tags are completely safe for use in the presence of magnetic resonance imaging machines. Additionally, the tags have been designed and optimized to withstand:
Maximum temperature: 220 °C (428 °F) / 15 seconds
Exposure: 36,25 PSI (2,5 bars)
Washing tunnel: 90 °C (194 °F) / 15 minutes
Pre-drying: 160 °C (320 °F) / 30 minutes
Final tunnel: 185 °C (365 °F) / 30 minutes
Sterilization: 134 °C (273 °F) / 20 minutes
Water extraction press: 60 bars
Chemical resistance: All standard chemicals used in laundry processes
Warranty: 200 cycles or 3 years
Product code:
Standard version: Dipole Tex Tag C15-MRI-TLR6PE08
Reel version: Dipole Tex Tag C15-MRI-TLR6PE08R
HID LinTRAK XS RFID tags come with the latest generation Impinj Monza M730 chip. The tags have been designed to support:
temperature: 220°C (428°F) / 15 seconds
Exposure: 36.25 PSI (2.5 bars)
Tunnel Washer: 90°C (194°F) / 15 minutes
Pre-drying in Tumber: 160°C (320°F) / 30 minutes
Tunnel Finisher: 185°C (365°F) / 30 minutes
Sterilization: N/A
Water extraction press: 60 bars
Chemical resistance: All standard chemicals used in laundry processes.
Warranty: 200 cycles or 3 years
Product code:
Dipole Tex Tag XS-TL730E02
This product operates in the UHF frequency range of 860 to 960 MHz and is certified with MR, ensuring the safety of the tags in environments with magnetic resonance machines. Additionally, the tags have been designed to withstand:
Maximum temperature: 220 °C (428 °F) / 15 seconds
Exposure: 36,25 PSI (2,5 bars)
Washing tunnel: 90 °C (194 °F) / 15 minutes
Pre-drying: 160 °C (320 °F) / 30 minutes
Final tunnel: 185 °C (365 °F) / 30 minutes
Sterilization: 134 °C (273 °F) / 20 minutes
Water extraction press: 60 bars
Chemical resistance: All standard chemicals used in laundry processes
Warranty: 200 cycles or 3 years
Product code:
Standard version: Dipole Tex Tag C15-TL730E01
The design of the Exo 2000 is made with a robust blend of PC ABS, making it highly resistant to impacts and high temperatures. Additionally, it has an IP68 rating, guaranteeing protection against dust and immersion in water. Utilizing a frequency range of 860 to 960 MHz (global), the Exo 2000 uses the EPC Class 1 Gen2v2 protocol for its communication. It has a reading range of up to 20 meters on fixed readers and 9 meters on handheld readers.
This rugged tag can withstand operating temperatures from -40°C to +85°C and a maximum exposure of up to 100°C. Additionally, it can withstand an impact of 25 kg from a height of 1 meter.
Product code:
CP15974
The design of the Exo InLine is built with high-strength plastic, giving it excellent durability against impacts and high temperatures. It also has an IP68 protection rating, guaranteeing full protection against dust and immersion in water. The Exo Inline utilizes a global frequency range of 860 to 960 MHz and employs the EPC Class 1 Gen2v2 protocol for communication, ensuring an impressive reading range of up to 10 meters in suitable environments.
This tag is capable of withstanding extreme operating temperatures, ranging from -40°C to +85°C, with a maximum exposure of up to 100°C. Additionally, it can withstand impacts of up to 25 kg from a height of 1 meter.
Product codes:
6M6980-102 (grey)
6M6980-120 (grey, 1D-barcode)
6M6981-102 (weld)
The design of the Exo InLine S features dimensions of 97 × 27 × 10 mm and a weight of only 12 grams in its standard version, while the weld version has dimensions of 105 × 35 × 10 mm and a weight of 14 grams.
It is made with high-strength plastic, making it highly resistant to impacts and high temperatures. Additionally, the product has an IP68 rating, ensuring protection against dust and immersion in water. It uses a frequency range of 860 to 960 MHz (globally). The Exo InLine mini employs the EPC Class 1 Gen2v2 protocol for communication and guarantees a reading range of up to 8 meters in ideal environments.
This tag is resistant to operating temperatures ranging from -40°C to +85°C and can withstand exposures of up to 100°C. Moreover, it can withstand an impact of 25 kg from a height of 1 meter.
Product Codes:
6M6983-102
6M6984-102 (slim weld)

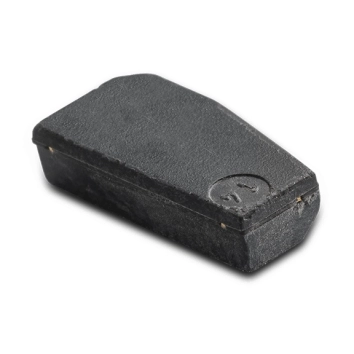

The Brick Nova operates at the LF frequency of 130 kHz. The tag dimensions are 12 × 6 × 3 mm, and it weighs 0.45 g. Its mounting method allows it to adhere to any material, and its casing is made of black epoxy.
It complies with IP68 protection rating and withstands exposure to a variety of substances, including bleach, caustic soda, formic acid, gasoline, HCL, oil, and saltwater. It also passes environmental tests at 20°C for 100 hours and withstands an axial/radial force of 500 N for 10 seconds. Its temperature range is from -40°C to +90°C.
Product Code:
933504"

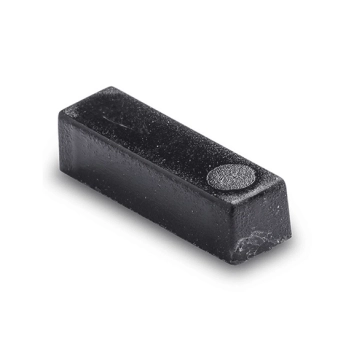

The FIT Brick ABS Vigo tags are one of the smallest devices available on the market for high-frequency (HF) applications. They operate at a frequency of 13.56 MHz and have a 64-bit UID memory and a 1024-bit EEPROM. Their operating temperature range is -25°C to +70°C.
They incorporate a programmable user memory that can be optionally used in near-field communication (NFC) applications. They are resistant to chemicals, shocks, and vibration, waterproof, and heat resistant. Their dimensions are 10 × 3 × 2.5 mm, and they weigh only 0.15 g.
Product code:
6A9904
The technical details of these tags leave no doubt about their durability and effectiveness. They operate in the LF frequency at 125 kHz and feature a 64-bit Unique chip for reading capability. They withstand temperatures ranging from -40º C to +85º C. Furthermore, they possess IP68 certification, guaranteeing their water resistance and ability to function in extreme circumstances, whether submerged in fluids or exposed to intense pressures.
Product Code:
601106.

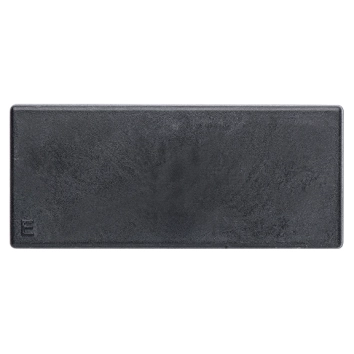

The IronTag 176 operates at frequencies of 865-868 MHz according to ETSI regulations and 902-928 MHz in line with FCC regulations. They are equipped with a Higgs 3 chip and offer a user memory of 512 bits. Measuring 53 x 23 x 7 mm and made of PPA, they weigh 14.7 grams and offer water resistance rated at IP68, allowing them to function in temperatures ranging from -40° to +85° C as well as being waterproof, resistant to high-temperature and pressure washes, and can withstand exposure to fuels, oils, saltwater, and ultraviolet rays.
But resilience does not mean sacrificing efficiency. Despite their robust and compact design, these tags offer a powerful reading capacity with a range of up to 4 meters. They also feature generous memory capacities, offering up to 8192 bits of user memory. They are designed to be versatile: they can be adhered to any metallic surface using industrial adhesives.
Product code:
698901-010 ETSI
698902-010 FCC

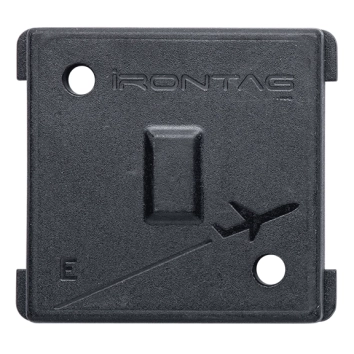

One of the strong points of the HID IronTag 206 is its robustness in extreme conditions. These tags are suitable to withstand from exposure to chemical agents, through sudden temperature changes, to vibrations and strong impacts. Initially conceived for aircraft parts tracking, they have proven to be resistant in demanding situations, such as those found in the manufacturing and operation of machinery and vehicles.
Despite their durable and compact design, these tags do not sacrifice efficiency. They have an impressive reading capacity with a range of up to 2.5 meters. In addition to their extensive memory, they are designed to be versatile and can be attached to any metal surface using specialized adhesives.
Product codes:
6D3903 ETSI
6D3902 FCC
