Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

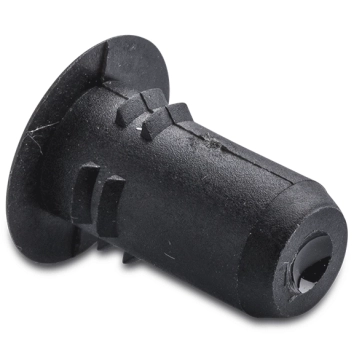

RFID Tag HID Plug
HID's RFID Plug tags provide an exceptional solution for the identification and tracking of plastic containers intended for waste in residential, commercial, and industrial environments.
The durable casing of the Plug Tag protects the integrated electronic components, delivering reliable performance even in rigorous waste management and logistics settings. Each tag is completely waterproof and can be consistently read, even when temperatures drop to -20°C or reach 85°C.
They can be securely inserted into the standard drilled holes of waste containers, ensuring they remain in place throughout the container's lifecycle.
They incorporate the FDX-b BDE chip, which operates at a frequency of 134.2 kHz. In terms of physical specifications and durability, the tags are made of PA6 material and come in black color. Their compact design has a diameter of 9 mm and a height of 19 mm, with a 15mm diameter cap. They are waterproof, complying with the IP68 standard, and exhibit exceptional resistance to flames, vibrations, and impacts, in accordance with international standards.
They incorporate the Unique chip that operates at a frequency of 131 kHz. In terms of physical specifications and durability, the tags are made of PA6 material and come in black color. Their compact design has a diameter of 9 mm and a height of 19 mm, with a 15mm diameter cap. They are water-resistant, complying with the IP68 standard, and exhibit exceptional resistance to flames, vibrations, and impacts, in accordance with international standards.
Product Code:
601920-001
The Exo Slim InLine Plate operates in the UHF Global 860-960 frequency band and integrates the NXP EM4423 chip with a storage capacity of 1920 bits. Its screw fixation system facilitates mounting on wood, metal, and plastic, allowing them to adapt to a wide range of situations.
With dimensions of 120 × 68 × 3.7 mm and a weight of 27 grams, these polycarbonate tags can operate in a temperature range from -40°C to +85°C.
Product codes:
6H698C
The EXO Slim InLine operates in the UHF frequency range of 865-868 MHz (ETSI) and 902-928 MHz (FCC) and integrates the Impinj Monza 4E chip with 496 bits of EPC memory, 96 bits of TID memory, and 128 bits of user memory. Their screw mounting method allows for installation on wood, metal, and plastic, making them versatile for various situations.
They have dimensions of 120 × 68 × 3.7 mm and weigh 27 grams, constructed with polycarbonate that enables them to operate in temperatures ranging from -40°C to +85°C.
Product Codes:
6C698A (EU)
6C698B (US)
The Nail tags incorporate the FDX-B BDE chip, which operates at a 125kHz LF frequency and has dimensions of Ø 4 x 35.5 mm. Their installation method using a hammer simplifies mounting on materials such as wood. The casing is constructed from polyamide and fiberglass in black color, providing a discreet and durable appearance to the device.
They are capable of withstanding exposure to water according to the IP67 standard, at a temperature of 68°F (20°C) for one hour, as well as vibrations (in accordance with IEC 68.2.6) and shocks (according to IEC 68.2.29) in adverse conditions. Thermally, they can operate and store within a wide range, from -25°C to +85°C.
Product code:
684910-001
The HID Bin Tag Unique works with a 125 kHz LF frequency with a 64-bit read memory. It is made of black polyamide, with a size of 30 mm x 15 mm x 28.5 mm and a weight of only 6.4g. The read range that this tag can offer will vary depending on the reader, environmental conditions, and the surface where the tag is attached.
It has IP 67 environmental resistance to water resistant in extreme temperature conditions from -40° to 90° C. It is also certified for IEC 68.2.29 shock and IEC 68.2.6 vibrations to guarantee maximum performance even if the conditions of use are complicated.
Product code:
701133-106
It has a circular shape with a diameter of 15 mm and a thickness of 2,8 mm. Additionally, it operates at the HF frequency of 13,56 MHz and is available in an attractive light blue color.
This tag has been manufactured following the highest industry quality standards, ensuring excellence in performance and durability. It complies with international standards for quality and performance ISO 18000-3 Mode 1, guaranteeing proper functioning in complex environments. Furthermore, it meets the ISO 15693 standard, which implies high performance when being read.
Product code:
Standard version: BluTag TL340E01
This product operates in the UHF frequency range, specifically between 860 and 960 MHz. Additionally, its composition and structure provide high resistance to withstand different temperatures, such as:
Maximum temperature: 220 °C (428 °F) / 15 seconds
Exposure: 36,25 PSI (2,5 bars)
Washing tunnel: 90 °C (194 °F) / 15 minutes
Pre-drying: 160 °C (320 °F) / 30 minutes
Final tunnel: 185 °C (365 °F) / 30 minutes
Sterilization: 134 °C (273 °F) / 20 minutes
Water extraction press: 60 bars
Chemical resistance: All standard chemicals used in laundry processes
Warranty: 200 cycles or 3 years
Product code:
Standard version: Dipole Tex Tag C15H-TL730E03H

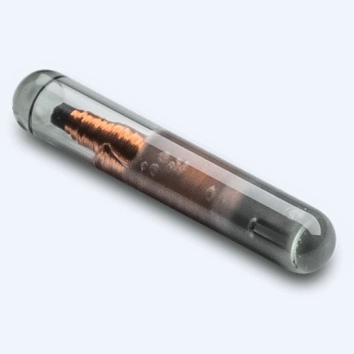

The Glass Mini operates in the LF frequency of 125 kHz, is constructed with Bioglass, and has a very small size of only 8 mm and 1.4 mm in diameter.
They operate in a temperature range of -25°C to +85°C, resist exposure to alcohol, 25% ammonium chloride, fuel B, 10% HCL, and seawater, and comply with the EN 60079-0:2009; EN 60079-11:2007; EN 60079-26:2007 regulations.
Product code:
684294

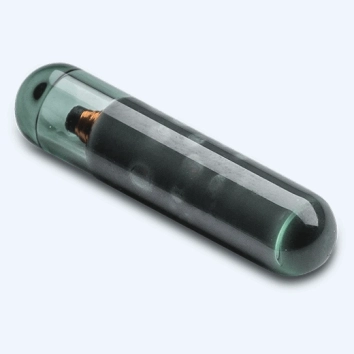

HID's Glass Titan operates at a frequency of LF 125 kHz and has 1024 bits of EEPROM memory. They come in a compact size of just Ø 3.15 x 13.3mm.
They operate within a temperature range of -25°C to +85°C, are resistant to exposure to alcohol, 25% ammonium chloride, fuel B, 10% HCL, and saltwater, and comply with EN 60079-0:2009; EN 60079-11:2007; EN 60079-26:2007 regulations.
Product code:
602203
The Glass FDX-b BDE tags operate in the LF frequency of 134.5 kHz and are constructed with Bioglass. These tags are available in two very small sizes, with diameters of only 13.3 mm and 3.15 mm, and 21.7 mm and 4 mm respectively.
Furthermore, they can operate within a wide temperature range, from -25°C to +85°C. They are also capable of resisting exposure to substances such as alcohol, 25% ammonium chloride, fuel B, 10% HCL, and seawater. They comply with the EN 60079-0:2009; EN 60079-11:2007; EN 60079-26:2007 regulations.
Product codes:
684244 (13 mm)
684251 (22 mm)
These RFID tags, resistant to water and oils, efficiently repel moisture, petroleum byproducts, and salt spray. They operate at a frequency of 860-960 MHz and are equipped with an M730 chip. Additionally, their 128-bit EPC memory allows a reading distance of up to 12 meters, making them easily applicable to a variety of surfaces.
Their versatility and robustness make IQ Pro tags ideal for various fields. They can be found in automation and manufacturing, the automotive industry, aerospace, machinery, asset management, and logistics. They are particularly useful for container tracking, waste management, and the transport of returnable items.
Product code:
CP13445
The IQ OM 5s operate on the 13.56 MHz frequency and are in compliance with ISO/IEC 14443A standards, NFC Forum Tag Type 2. Weighing only 2 grams and with a compact size of 30 mm × 30 mm × 0.8 mm, they are remarkably small and light.
These tags are IP68 certified for industrial applications, withstanding 24 hours at a depth of up to 1 meter in water up to 20 °C without their performance being affected. Additionally, they can withstand temperatures ranging from -20° to +70° C.
Product code:
6E3M30
These tags operate at frequencies of 869 MHz in the European Union and 915 MHz in the United States, in accordance with the EPC Global Class 1 Gen 2, ISO 18000-6C standards. They weigh only 0.25 grams and their compact shape measures 55 mm × 12.5 mm × 1.2 mm.
Their IP68 certification validates their resistance for industrial applications. They can withstand up to 24 hours submerged in water up to one meter deep and at a temperature of 20 °C without affecting their performance. They also resist extreme temperatures ranging from -40° to +85° C.
Product codes:
6M6M15 - EU
6M6M16 - US
