Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.
RFID Tag HID LinTRAK C15H
The RFID HID LinTRACK tags have been developed and enhanced for the identification of textile and linen products. These tags are extremely durable against repeated washing cycles, including exposure to water, cleaning with chemicals, sterilization through heat, and water pressure.
The mounting method involves hot sealing at 399 °F (204 °C) and a pressure of 4–5 bars for 14 seconds, followed by a cooling period of 5 minutes before introducing the item into the washing processes.
These tags feature the built-in Monza M730 chip, which has a 128-bit EPC memory and the capability to be read from a distance of up to 6,5 meters.
This product operates in the UHF frequency range, specifically between 860 and 960 MHz. Additionally, its composition and structure provide high resistance to withstand different temperatures, such as:
Maximum temperature: 220 °C (428 °F) / 15 seconds
Exposure: 36,25 PSI (2,5 bars)
Washing tunnel: 90 °C (194 °F) / 15 minutes
Pre-drying: 160 °C (320 °F) / 30 minutes
Final tunnel: 185 °C (365 °F) / 30 minutes
Sterilization: 134 °C (273 °F) / 20 minutes
Water extraction press: 60 bars
Chemical resistance: All standard chemicals used in laundry processes
This product operates in the UHF frequency range of 860 to 960 MHz and is certified with MR, ensuring the safety of the tags in environments with magnetic resonance machines. Additionally, the tags have been designed to withstand:
Maximum temperature: 220 °C (428 °F) / 15 seconds
Exposure: 36,25 PSI (2,5 bars)
Washing tunnel: 90 °C (194 °F) / 15 minutes
Pre-drying: 160 °C (320 °F) / 30 minutes
Final tunnel: 185 °C (365 °F) / 30 minutes
Sterilization: 134 °C (273 °F) / 20 minutes
Water extraction press: 60 bars
Chemical resistance: All standard chemicals used in laundry processes
Warranty: 200 cycles or 3 years
Product code:
Standard version: Dipole Tex Tag C15-TL730E01
This product operates in the UHF frequency range of 860 to 960 MHz and is certified with MR, which means that the tags are completely safe for use in the presence of magnetic resonance imaging machines. Additionally, the tags have been designed and optimized to withstand:
Maximum temperature: 220 °C (428 °F) / 15 seconds
Exposure: 36,25 PSI (2,5 bars)
Washing tunnel: 90 °C (194 °F) / 15 minutes
Pre-drying: 160 °C (320 °F) / 30 minutes
Final tunnel: 185 °C (365 °F) / 30 minutes
Sterilization: 134 °C (273 °F) / 20 minutes
Water extraction press: 60 bars
Chemical resistance: All standard chemicals used in laundry processes
Warranty: 200 cycles or 3 years
Product code:
Standard version: Dipole Tex Tag C15-MRI-TLR6PE08
Reel version: Dipole Tex Tag C15-MRI-TLR6PE08R
HID LinTRAK XS RFID tags come with the latest generation Impinj Monza M730 chip. The tags have been designed to support:
temperature: 220°C (428°F) / 15 seconds
Exposure: 36.25 PSI (2.5 bars)
Tunnel Washer: 90°C (194°F) / 15 minutes
Pre-drying in Tumber: 160°C (320°F) / 30 minutes
Tunnel Finisher: 185°C (365°F) / 30 minutes
Sterilization: N/A
Water extraction press: 60 bars
Chemical resistance: All standard chemicals used in laundry processes.
Warranty: 200 cycles or 3 years
Product code:
Dipole Tex Tag XS-TL730E02
It has a circular shape with a diameter of 15 mm and a thickness of 2,8 mm. Additionally, it operates at the HF frequency of 13,56 MHz and is available in an attractive light blue color.
This tag has been manufactured following the highest industry quality standards, ensuring excellence in performance and durability. It complies with international standards for quality and performance ISO 18000-3 Mode 1, guaranteeing proper functioning in complex environments. Furthermore, it meets the ISO 15693 standard, which implies high performance when being read.
Product code:
Standard version: BluTag TL340E01

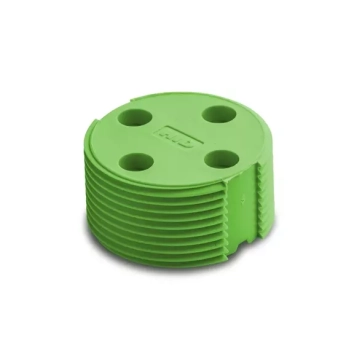

The HID Bin Tag UHF is a small and lightweight device made of green polyamide. It operates at a UHF frequency of 134.2 kHz and has a 128-bit EPC memory. It has a size of 30 mm x 15 mm x 30 mm and weighs only 6.4 g. The reading range provided by these tags can vary depending on the conditions, but it is estimated to be over 12 meters.
These tags have an IP67 environmental resistance to water, which means they are resistant to extreme temperatures ranging from -40 °C to 90 °C. They also have certifications for shock resistance (IEC 68.2.29) and vibrations (IEC 68.2.6), ensuring that they can provide maximum performance even in challenging usage situations.
Product code:
6M6103-002G
The FX7500 features a slim and attractive form factor, with a low profile and compact size that makes it suitable for virtually any business environment. It's also great for the bottom line, with an impressive set of features that add tremendous value to enterprise-grade applications.
It has a sturdy construction made of die-cast aluminum, sheet metal and plastic with dimensions of 19.56cm x 14.99cm x 4.32cm and a weight of 860 g.
Product code:
Global 4-port: FX7500-42325A50-WR
Global 2-port: FX7500-22325A50-WR
ETSI 4-port: FX7500-42321A5S-ER
The Cubic RS-1100 is made of aluminum and consists of four universal RFID antennas, along with a four-port RFID reader. Additionally, it includes an application software that can be integrated with any management or ERP system, enabling task automation and reducing errors in inventory management. It also facilitates efficient management of goods receiving and dispatching. Preferred applications and uses of Cubic RFID include:
Receptions
Shipments
Picking
Logistics processes
Plastic containers
Cardboard boxes
Product Code:
Dipole Cubic: RS-100-4P
