Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.
RFID Tag HID EXO Slim InLine Plate
The EXO Slim InLine identification plates by HID Global are an exceptional solution for marking metal containers. These plates adapt flawlessly to any surface. Their highly durable polycarbonate casing protects the internal components from the harsh environmental conditions typical of industrial loading operations.
They are excellent tools for asset tracking and are sealed using ultrasonics, with a plastic base prepared for screw mounting. They are lightweight, dust-resistant, waterproof, and have IP69K protection to enhance speed and accuracy in data collection for logistics applications while ensuring more reliable traceability. These plates can be read from a distance of up to 8 meters.
Product description RFID Tag HID EXO Slim InLine Plate
The EXO Slim InLine operates in the UHF frequency range of 865-868 MHz (ETSI) and 902-928 MHz (FCC) and integrates the Impinj Monza 4E chip with 496 bits of EPC memory, 96 bits of TID memory, and 128 bits of user memory. Their screw mounting method allows for installation on wood, metal, and plastic, making them versatile for various situations.
They have dimensions of 120 × 68 × 3.7 mm and weigh 27 grams, constructed with polycarbonate that enables them to operate in temperatures ranging from -40°C to +85°C.

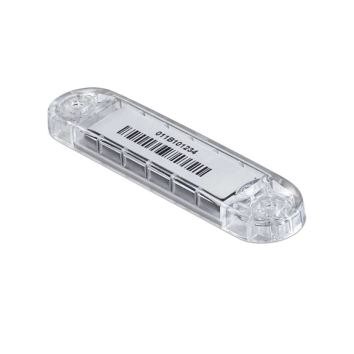

The Exo Slim 600 Shell+ operates in the UHF frequency range of 865-868 MHz (ETSI) and 902-928 MHz (FCC), incorporating the Impinj Monza R6-P chip. Its screw attachment method allows it to be secured to wood, metal, and plastic, making it versatile for various situations.
It has dimensions of 86 x 20 x 7.3 mm and weighs 6.7 grams. It is constructed with polycarbonate, enabling it to operate in temperatures ranging from 40° to +85° C.
Product Codes:
CP14519 (EU)
CP14522 (US)

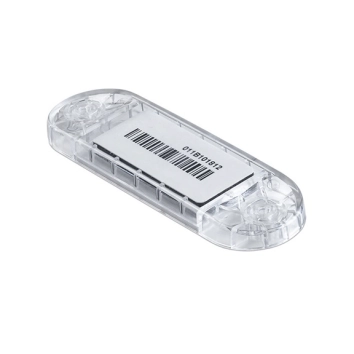

The EXO Slim 1000 Shell+ labels operate in the UHF frequency range of 865-868 MHz (ETSI) and 902-928 MHz (FCC) and incorporate the NXP UCODE 8 chip. Their screw mounting system allows them to be attached to wood, metal, and plastic, making them versatile for different contexts.
They have dimensions of 89 x 28 x 8.3 mm and weigh 6.7 grams, and are made of polycarbonate, allowing them to function in temperatures ranging from 40°C to +85°C.
Product Codes:
CP14531 (EU)
CP14534 (US)
The EXO Slim 1200 Shell+ has been designed to operate in the UHF Global 860-960 frequencies and incorporates the advanced NXP UCODE 8 chip for precise identification and efficient wireless communication.
They are lightweight, waterproof, and dustproof, ensuring performance even in the most challenging environments. Additionally, they come with an IP68 protection rating, implying superior resistance to water and dust.
Their compact dimensions of 123 x 33 x 6.8 mm and lightweight of 20 grams facilitate installation and they are capable of functioning in a wide range of temperatures, from -40°C to +85°C, providing reliability and efficiency in the most demanding conditions.
Product code:
CP14543
The EXO Slim750P operates on the UHF Global 860-960 MHz frequencies and integrates the Impinj M730 chip. Their screw attachment system allows them to be attached to wood, metal, and plastic, enabling their use in various circumstances.
They have dimensions of 86 x 24 x 3 mm and weigh 6.7 grams, with a polycarbonate construction that enables them to function in temperatures ranging from -30° to +65° C.
Product Code:
CP16374
The EXO Slim 800P operate in the UHF Global frequency range of 860-960 MHz and are equipped with the Impinj M730 chip with 128 bits of user memory and 48 bits of TID memory. Their screw fixation system allows them to be placed on wood, metal, and plastic, making them versatile for a wide range of situations.
They have dimensions of 105 x 68 x 3.7 mm and weigh only 11.6 grams, made of polycarbonate, and can operate in temperatures ranging from -20°C to +85°C.
Product codes:
CP15940
Thanks to its IP67 protection rating, this reader is rugged and durable. It offers an impressive reading range of up to 10 meters and features a configurable LED signal for easy visualization of reading results and diagnostic data.
Product Codes:
Australia: 1073376 and 1058775
Brazil: 1093152 and 1068726
China: 1073196
Thailand, China: 1057943, 1057945, and 1082193
Korea: 1073442
Hong Kong: 1087776
India: 1104670 and 1067473
Japan: 1068569, 10671133, and 1061498
Malaysia: 1095224
Morocco: 1083558
New Zealand: 1077862
Russia, Belarus: 1070904 and 1073377
Singapore: 1073377
Taiwan: 1077861
European Union, South Africa, Saudi Arabia, Egypt: 1058117
USA, Canada, Mexico: 1059999
USA, Canada, Mexico, Argentina: 1054397
The industrial RFID reader Sick RFU650 is manufactured with a robust aluminum body, featuring dimensions of 40 cm x 25 cm x 7 cm and a weight of 3.9 kg. These devices provide an IP67 protection rating, allowing them to deliver peak performance in demanding industrial environments.
Product Codes:
Europe, South Africa: 1073556
USA, Canada, Mexico: 1076522
India: 1096413
Japan: 1083560
China: 1083559
Australia: 1087587
The RS-100 readers operate in the global UHF frequency range of 865-868 MHz and come with an operating LED, while the RS-120 and RS-130 have a beacon with configurable indicators of different colors based on the requirements.
Additionally, various accessories can be incorporated, such as photocells, RUT 4G, or different external connections such as signals, PLCs, etc. The RS-130 can also include industrial PCs and brainboxes.
The RS-100 series is certified with IP65 or IP66, depending on the model, and complies with ISO 18000-6C.
