RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

RFID Tag Smartrac Dogbone Impinj Monza R6P

The Smartrac Dogbone RFID tag has a design that makes it one of the most robust in its range. Its composition and design provide the necessary features for its use in automotive, industrial applications, events, and sports races.

They can be easily converted into tags of any size for use throughout the supply chain, industry, RTI, and sports timing applications.

The integrated chip is the Impinj Monza R6-P, which has 128 bits of EPC memory, 64 bits of user memory, and a 96-bit TID memory. Depending on the environment and type of material where it is applied, it has a read range of up to 16 meters.

Download datasheet double_arrow

Product description RFID Tag Smartrac Dogbone Impinj Monza R6P

The article is available in Dry Inlay, Wet Inlay, and Label/Sticker formats and can be applied to surfaces such as wood, glass, different plastics, and non-metallic materials. It operates in the UHF frequency range of 860 - 960 MHz and has a rectangular design with dimensions of 94 x 24 mm.

This product complies with the international standard ISO 18000-63, EPC Class 1 Gen 2, meeting the most demanding standards in the industrial and communication fields with RFID systems.

Product Code:

Dry Inlay: 3005071 / IL-602874

Wet Inlay: 3005072 / IL-602875

Label/Sticker: 3005073 / IL-602876

UHF

Inlays and Tags

Impinj Monza R6-P

-40 °C to 85 °C / -40 °F to 185 °F

Wood, Plastic, Non Metal, Glass

Label / Sticker, Wet Inlay, Dry Inlay

ISO 18000-63, EPC Class 1 Gen 2

128 bits

UHF Global 860-960 MHz

97mm × 27mm

3.82in × 1.06in

You may also be interested in

RFID Tag Smartrac Dogbone NXP UCODE 8

The Dogbone UCODE 8 operates in the UHF Global 860-960 frequency band and has dimensions of 97 x 27 mm. Its robust and durable design allows it to function in demanding environments and adhere to difficult-to-label surfaces such as wood or glass. The tag complies with international quality and performance standards ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in complex environments. Additionally, like all NXP RFID products, it is manufactured following the highest industry quality standards. The Dogbone UCODE 8 is available in different configurations, offering a wide range of options to suit the specific needs of each business. Product code: Dry Inlay: 3006908 / IL-603295 Wet Inlay: 3006910 / IL-603297 Label / Sticker: 3006909 / IL-603296

See more double_arrow

RFID Tag Smartrac Dogbone Impinj Monza 4D

The Dogbone 4D operates in the UHF Global frequency band of 860-960 MHz and has dimensions of 97 x 27 mm. Its robust and durable design allows it to function in demanding environments and adhere to difficult-to-label surfaces such as wood or glass. The tag complies with international quality and performance standards ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper operation in complex environments. Additionally, like all RFID products from Avery Dennison, it is manufactured according to the highest industry quality standards. The Dogbone 4D is available in different configurations, offering a wide range of options to suit the specific needs of each business. Product code: Dry Inlay: 3001873 / IL-602568 Wet Inlay: 3001874 / IL-602569 Label/Sticker: 3001878 / IL-602573

See more double_arrow

Smartrac Dogbone NXP UCODE 7

This product operates in the UHF frequency band of 860 - 960 MHz and has dimensions of 94 x 24 mm. It is available in Wet Inlay and Label/Sticker formats and, depending on the environment and surface type where it is applied, such as wood, plastic, glass, and non-metallic materials, it can be read at a distance of up to 16 meters. Like all Avery Dennison RFID products, the Dogbone NXP UCODE 7 tags are ISO 18000-63 Type C certified, which means they have been manufactured following the highest industry quality standards. Product Code: Wet Inlay: 3003020 / IL-602772 Label/Sticker: 3003021 / IL-602773

See more double_arrow

RFID UHF Reader R700 Impinj

Impinj's R700 reader features 4 antenna ports and can handle up to 32 read zones, built-in GPIO, a 1Ghz dual-core processor speed, and is the only reader with up to Gigabit Ethernet connectivity. It has the ISO 18000 63 protocol and global EPC Gen 2 v2 and the maximum benefits of a brand like Impinj, leader in the sector and with many years of experience. Product code: Impinj R700 (ETSI), 865-868 MHz, 915 - 921 MHz: IPJ-R700-241 Impinj R700 (FCC, GX), 902 - 928 MHz: IPJ-R700-341 Impinj R700 (Japón), 916,7 - 920,9 MHz: IPJ-R700-441

See more double_arrow

RFID and NFC Label Printing and Encoding

Customization of tags We can customize and encode tags with the data you request. Print and encode a barcode. Print images, QR or other necessary data. Encrypt information How can we encode in rfid tags? Data from 96 bits up to 496 bits: encode the EPC Decimal or Hexadecimal format. Encrypt tags with passwords in their corresponding memory, Other types upon request How can we customize in NFC tags? Web pages or URL Texts or ID numbers Contact Information Other types of information

See more double_arrow

Universal Laird S8658 RFID Antenna

This device boasts a robust IP54 rating, signifying its resistance to water and its ability to operate in the rain, under dripping conditions, and when subjected to splashes. Additionally, it is sealed in such a way that it can withstand the presence of solid materials larger than 1 mm and prevent dust accumulation. The antenna has a square shape with dimensions of 259 x 259 x 34 mm and weighs 1.13 kg. Product Codes: S8658PR, S8658PL, S8658WPR, and S8658WPL

See more double_arrow

RFID Labels Dipole PRO

Regarding technical specifications, the RFID tags from the Dipole PRO family operate in the UHF frequency range (860 - 960 MHz) and use IC from the renowned brand Impinj. The EPC memory varies depending on the chosen IC family, providing flexible data storage options. Manufactured with high-quality polyester, these tags offer exceptional durability and a surface suitable for thermal transfer printing. Complying with ISO 18000-6C Class 1 Generation 2 standards, the Dipole PRO family tags guarantee reliable compatibility and performance in a wide variety of applications. Additionally, they come equipped with high-strength adhesive, ensuring a durable and secure attachment.

See more double_arrow

RFID Label Dipole PASS

The Dipole PASS tag operates in the UHF frequency range (860-960 MHz) and is compatible with various types of IC, including Impinj, NXP, and Higgs. Its EPC memory varies depending on the IC family, and they are made of high-durability plastic material. They comply with ISO 18000-6C Class 1 Generation 2 standards and feature a high-resistance adhesive. Their size is fully customizable, with an example dimension of 97x27 mm. Additionally, they can withstand temperatures ranging from -40 °C to +85 °C, making them suitable for use in a wide range of weather conditions.

See more double_arrow

RFID Tunnel Dipole

Together with Dipole's LAMA software, we present a solution that allows you to improve logistics processes in distribution centres or factories by massively reading each of the products contained in a box, guaranteeing individual traceability. It is built in a modular way and uses aluminium as a material, which provides an isolation to read only the inside, ensuring a reliable reading. It operates on UHF frequency in a global range of 860 to 960 MHz. In addition, this product complies with international standards EPC Class 1 Gen 2; ISO 18000-6C, satisfying the most demanding requirements in industrial and RFID communications worldwide. Competitive advantages: Massive, simultaneous reading Read speed Automation and error reduction Real-time tracking Guarantee of individual traceability Increased productivity Control screen Versatility of options Improved operational efficiency Cost reduction Easy integration with any management or ERP system Traceability and security

See more double_arrow

RFID Label Dipole Accessory

They operate in the UHF frequency range (860 - 960 MHz) and are available in different IC types, including Impinj and NXP. Their EPC memory varies depending on the IC family, and they are made of PP material. In addition, they come with a range of adhesives, both permanent and removable. Their dimensions are fully customizable to fit any product size, and their temperature range of -40 °C to +85 °C allows them to function in a wide variety of environments. We guarantee worldwide service in the most convenient formats for the customer.

See more double_arrow

RFID Tag Smartrac Dogbone Impinj M730

The Dogbone M730 operates in the UHF Global frequency band 860-960 and has dimensions of 97 x 27 mm. Its robust and resistant design allows it to function in demanding environments and adhere to difficult-to-label surfaces, such as wood or glass. This tag complies with international standards for quality and performance ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in complex environments. Additionally, like all RFID products from Avery Dennison, it is manufactured following the highest industry quality standards. The Dogbone M730 is available in different configurations, offering a wide range of options to suit the specific needs of each business. Product code: Dry Inlay: 3008223 / IL-604163 Wet Inlay: 3008445 / IL-604318 Label: 3008054 / IL-604042

See more double_arrow

RFID Tag Smartrac Dogbone Impinj Monza R6

The Dogbone R6 operates in the UHF Global 860-960 frequency band and has dimensions of 94 x 24 mm. It has an optimal operating temperature range from -40 °C to 85 °C. This tag can be applied to wood, glass, and non-metallic materials. Like all RFID products from Avery Dennison, the Dogbone R6 tag is manufactured according to the highest industry quality standards to ensure its proper functioning in complex environments and complies with the international standard ISO 18000-63 EPC Class 1 Gen 2. Available delivery formats include dry, wet, and label. The Dogbone is available with other internal chips that vary in their specifications so that customers can choose according to their business needs. Product Code: Dry Inlay: 3004004 / IL-602812 Wet Inlay: 3004005 / IL-602813 Label/Sticker: 3004006 / IL-602814

See more double_arrow

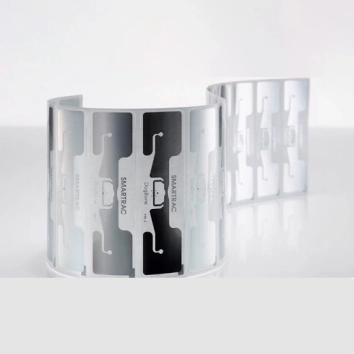

RFID Tag Smartrac Dogbone NXP UCODE 7XM
