Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.
RFID Tag HID LinTRAK C15
The LinTRAK RFID tags from HID Global have been specially designed for the identification of textile and linen products. Thanks to their shape, durability, and ease of attachment, they meet the tracking requirements of the laundry industry. These tags withstand the rigors of repeated washings, including exposure to water, cleaning chemicals, sterilization heat, and water pressure extraction.
They use the Monza M730 chip, which allows them to be read at distances of up to 8 meters and has a 128-bit EPC memory. The patented design ensures the secure positioning of the internal chip in relation to the antenna, guaranteeing consistent performance throughout the entire lifespan of the tag.
This product operates in the UHF frequency range of 860 to 960 MHz and is certified with MR, ensuring the safety of the tags in environments with magnetic resonance machines. Additionally, the tags have been designed to withstand:
Maximum temperature: 220 °C (428 °F) / 15 seconds
Exposure: 36,25 PSI (2,5 bars)
Washing tunnel: 90 °C (194 °F) / 15 minutes
Pre-drying: 160 °C (320 °F) / 30 minutes
Final tunnel: 185 °C (365 °F) / 30 minutes
Sterilization: 134 °C (273 °F) / 20 minutes
Water extraction press: 60 bars
Chemical resistance: All standard chemicals used in laundry processes
This product operates in the UHF frequency range, specifically between 860 and 960 MHz. Additionally, its composition and structure provide high resistance to withstand different temperatures, such as:
Maximum temperature: 220 °C (428 °F) / 15 seconds
Exposure: 36,25 PSI (2,5 bars)
Washing tunnel: 90 °C (194 °F) / 15 minutes
Pre-drying: 160 °C (320 °F) / 30 minutes
Final tunnel: 185 °C (365 °F) / 30 minutes
Sterilization: 134 °C (273 °F) / 20 minutes
Water extraction press: 60 bars
Chemical resistance: All standard chemicals used in laundry processes
Warranty: 200 cycles or 3 years
Product code:
Standard version: Dipole Tex Tag C15H-TL730E03H
This product operates in the UHF frequency range of 860 to 960 MHz and is certified with MR, which means that the tags are completely safe for use in the presence of magnetic resonance imaging machines. Additionally, the tags have been designed and optimized to withstand:
Maximum temperature: 220 °C (428 °F) / 15 seconds
Exposure: 36,25 PSI (2,5 bars)
Washing tunnel: 90 °C (194 °F) / 15 minutes
Pre-drying: 160 °C (320 °F) / 30 minutes
Final tunnel: 185 °C (365 °F) / 30 minutes
Sterilization: 134 °C (273 °F) / 20 minutes
Water extraction press: 60 bars
Chemical resistance: All standard chemicals used in laundry processes
Warranty: 200 cycles or 3 years
Product code:
Standard version: Dipole Tex Tag C15-MRI-TLR6PE08
Reel version: Dipole Tex Tag C15-MRI-TLR6PE08R
HID LinTRAK XS RFID tags come with the latest generation Impinj Monza M730 chip. The tags have been designed to support:
temperature: 220°C (428°F) / 15 seconds
Exposure: 36.25 PSI (2.5 bars)
Tunnel Washer: 90°C (194°F) / 15 minutes
Pre-drying in Tumber: 160°C (320°F) / 30 minutes
Tunnel Finisher: 185°C (365°F) / 30 minutes
Sterilization: N/A
Water extraction press: 60 bars
Chemical resistance: All standard chemicals used in laundry processes.
Warranty: 200 cycles or 3 years
Product code:
Dipole Tex Tag XS-TL730E02
This article is certified MR, which means that the tags are undetectable by magnetic resonance imaging machines. Additionally, these tags have been designed to withstand:
Maximum temperature: 220 °C (428 °F) / 15 seconds
Exposure: 36.25 PSI (2.5 bars)
Washing tunnel: 90 °C (194 °F) / 15 minutes
Pre-drying: 160 °C (320 °F) / 30 minutes
Final tunnel: 185 °C (365 °F) / 30 minutes
Sterilization: 134 °C (273 °F) / 20 minutes
Water extraction press: 60 bars
Chemical resistance: All standard chemicals used in laundry processes
Warranty: 200 cycles or 3 years
Product code:
Standard version: Dipole Tex Tag C10-MRI-TLR6PE06
Laser marked version: Dipole Tex Tag C10-MRI-TLR6PE06M
It has a circular shape with a diameter of 15 mm and a thickness of 2,8 mm. Additionally, it operates at the HF frequency of 13,56 MHz and is available in an attractive light blue color.
This tag has been manufactured following the highest industry quality standards, ensuring excellence in performance and durability. It complies with international standards for quality and performance ISO 18000-3 Mode 1, guaranteeing proper functioning in complex environments. Furthermore, it meets the ISO 15693 standard, which implies high performance when being read.
Product code:
Standard version: BluTag TL340E01
The HID Bin Tag Unique works with a 125 kHz LF frequency with a 64-bit read memory. It is made of black polyamide, with a size of 30 mm x 15 mm x 28.5 mm and a weight of only 6.4g. The read range that this tag can offer will vary depending on the reader, environmental conditions, and the surface where the tag is attached.
It has IP 67 environmental resistance to water resistant in extreme temperature conditions from -40° to 90° C. It is also certified for IEC 68.2.29 shock and IEC 68.2.6 vibrations to guarantee maximum performance even if the conditions of use are complicated.
Product code:
701133-106
The HID Bin Tag FDX-B BDE works with a 134.2 kHz LF frequency with a 128 bit read memory. It is made of yellow polyamide, with a size of 30 mm x 15 mm x 28.5 mm and a weight of only 6.4 g. The read range that this tag can offer will vary depending on the reader, environmental conditions, and the surface where the tag is attached.
It has IP 67 environmental resistance to water resistant in extreme temperature conditions from -40° to 90° C. It is also certified for IEC 68.2.29 shock and IEC 68.2.6 vibrations to guarantee maximum performance even if the conditions of use are complicated.
Product code:
784104-102Y
The HID Adept 500 operates at the frequency of 860-960 MHz and has compact dimensions of 37 × 37 × 11.5 mm, making it easy to integrate into a wide variety of applications. It weighs only 9.8 grams. It is water and dust resistant (IP68) and can function in a wide range of temperatures, from -20°C to +65°C, ensuring its operability in extreme conditions and outdoors.
It complies with international standards such as UHF EPC Class 1 Gen 2, ISO 18000-6C, ISO 17364, and DIN 40050-9.
Product Reference: CP16281.
The HID 400 TH operates in the 902-928 MHz frequency range (FCC) and has compact dimensions of 31 x 56 x 12.7 mm, making it easy to integrate into a wide variety of uses. It weighs only 59 grams. Additionally, it is water-resistant (IP68) and can operate in a wide range of temperatures, from -20°C to +85°C, ensuring its functionality in extreme conditions.
It complies with international regulations UHF EPC Class 1 Gen 2, ISO 18000-6C, ISO 17364, DIN 40050-9.
Product reference:
CP14902
The HID Adept 400 DATA operates in the 860-960 MHz frequency range and has compact dimensions of 37.5 x 12.5 x 4.5 mm, making it easily adaptable for a variety of uses. It weighs only 2.2 grams. Additionally, it is water-resistant (IP68) and can operate within a wide temperature range, from -5°C to +45°C, ensuring its functionality in extreme environments.
It complies with international standards UHF EPC Class 1 Gen 2, ISO 18000-6C, ISO 17364, DIN 40050-9.
Product code: CP08728-02
The HID Adept 400 operates in the 860-960 MHz frequency range and has compact dimensions of 36.5 x 36.5 x 16.5 mm, making it easy to integrate into a wide range of uses. It weighs just 69.5 grams. Additionally, it is waterproof (IP68) and can operate in an extensive range of temperatures, from -20°C to +85°C, ensuring its functionality in extreme conditions.
It is backed by the international standards UHF EPC Class 1 Gen 2, ISO 18000-6C, ISO 17364, DIN 40050-9.
Product code:
CP13676
The HID Adept 360 operates at a frequency of 860-960 MHz and has compact dimensions of 136.5 × 48 × 5.5 mm, allowing for easy integration into a variety of applications. It weighs only 126 grams. It is also water-resistant (IP68) and can operate over a wide temperature range, from -20°C to +85°C, ensuring functionality in extreme environments.
It complies with international standards UHF EPC Class 1 Gen 2, ISO 18000-6C, ISO 17364, DIN 40050-9.
Product Code:
CP16741

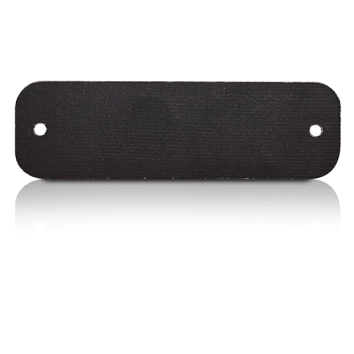

The HID Epoxy Tag UHF uses the UHF Global 865-956 MHz frequency and features 128-bit EPC memory. One of the key advantages of this product is its thermal stability, which means that it can withstand extreme temperatures from -40° to 90° C without losing its functionality. Additionally, the tag surface is printable, allowing for visual identification and RFID reading.
It is made of black epoxy and has dimensions of 83mm × 25mm × 1mm. It is designed to be applied to glass, plastic or wood.
It has IP 68 and IP69K protection for environmental protection, as well as IEC 68.2.6 anti-vibration and IEC 68.2.29 anti-shock certification.
Product code:
6M6970-101
