Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.
RFID Tag HID EXO InLine
The EXO Inline is an innovative RFID tag manufactured by HID, specifically designed to withstand the most extreme and challenging environments. This outstanding product has been carefully developed to meet the demands of heavy industry, providing exceptional impact resistance and enabling deployment in any outdoor industrial environment worldwide.
With a wide and long-range reading range in all geographies, the EXO Inline is ideal for various outdoor applications such as container tracking, cargo monitoring, defense asset management, as well as harsh industrial environments. With standard mechanical fastening options and rivets, this tag can be securely and reliably installed on any surface. Additionally, it features an Impinj M370 chip that offers storage capacity of up to 128 bits for the EPC.
The design of the Exo InLine is built with high-strength plastic, giving it excellent durability against impacts and high temperatures. It also has an IP68 protection rating, guaranteeing full protection against dust and immersion in water. The Exo Inline utilizes a global frequency range of 860 to 960 MHz and employs the EPC Class 1 Gen2v2 protocol for communication, ensuring an impressive reading range of up to 10 meters in suitable environments.
This tag is capable of withstanding extreme operating temperatures, ranging from -40°C to +85°C, with a maximum exposure of up to 100°C. Additionally, it can withstand impacts of up to 25 kg from a height of 1 meter.
Product codes:
6M6980-102 (grey)
6M6980-120 (grey, 1D-barcode)
6M6981-102 (weld)
UHF
DIN 40050-9, ISO 17364, ISO/IEC 18000-63, EPC Gen2 V2
These EXO Pro InLine tags are equipped with the powerful Impinj M730 chip, which provides a 96-bit EPC memory and a 32-bit user memory, as well as the Monza 4QT (pro weld) option with a 128-bit EP memory, a 96-bit TID memory, and a 512-bit user memory. They operate at frequencies of 860-960 MHz (worldwide), ensuring excellent performance.
Manufactured with durable ABS and certified with IP68, these tags easily withstand the presence of water and dust, making them the ideal choice for challenging industrial environments. Additionally, they have a lightweight design, weighing only 10 grams, and compact dimensions of 97 × 27 × 15 mm in the basic version and 105 × 35 × 15 mm in the Pro weld version. These tags are capable of operating efficiently over a wide temperature range, ranging from -40°C to +85°C.
Product Codes:
6M6980-402
6M6981-402 (Pro weld version)
The Exo 1000 is made with quality materials, using PC ABS, and features compact dimensions of 110 x 25 x 12.7 mm. Furthermore, its optimal operating temperature range is from -40°C to +85°C, and it has an IP68 rating, ensuring its resistance to dust and water, allowing for use in demanding industrial environments.
In terms of technical specifications, the Exo 1000 operates at a frequency of 860-930 MHz, uses the EPC Class 1 Gen2v2 radio protocol, and has a 128-bit EPC memory, a 512-bit user memory, and a unique 48-bit ID.
Product code: CP12826
The HID Exo 3000 tag is designed to withstand impacts, with a robust PC ABS blend casing. It also has an IP68 rating, making it resistant to water and dust. It can endure wide temperature variations, from -40 °C to +85 °C, and even exposures of up to 100 °C. This tag is also vibration and shock-resistant according to the MIL-STD-810 G standard, capable of withstanding impacts of up to 25 kg from 1 m.
The tag supports the EPC Class 1 Gen2v2 protocol, operates within the frequency range of 860 - 930 (GS), and has a reading range of up to 33 m in the presence of metal and up to 22 m without contact with metal for fixed readers. For handheld readers, the reading range extends up to 20 m.
Product Code:
CP12826
The design of the Exo 2000 is made with a robust blend of PC ABS, making it highly resistant to impacts and high temperatures. Additionally, it has an IP68 rating, guaranteeing protection against dust and immersion in water. Utilizing a frequency range of 860 to 960 MHz (global), the Exo 2000 uses the EPC Class 1 Gen2v2 protocol for its communication. It has a reading range of up to 20 meters on fixed readers and 9 meters on handheld readers.
This rugged tag can withstand operating temperatures from -40°C to +85°C and a maximum exposure of up to 100°C. Additionally, it can withstand an impact of 25 kg from a height of 1 meter.
Product code:
CP15974
The design of the Exo InLine S features dimensions of 97 × 27 × 10 mm and a weight of only 12 grams in its standard version, while the weld version has dimensions of 105 × 35 × 10 mm and a weight of 14 grams.
It is made with high-strength plastic, making it highly resistant to impacts and high temperatures. Additionally, the product has an IP68 rating, ensuring protection against dust and immersion in water. It uses a frequency range of 860 to 960 MHz (globally). The Exo InLine mini employs the EPC Class 1 Gen2v2 protocol for communication and guarantees a reading range of up to 8 meters in ideal environments.
This tag is resistant to operating temperatures ranging from -40°C to +85°C and can withstand exposures of up to 100°C. Moreover, it can withstand an impact of 25 kg from a height of 1 meter.
Product Codes:
6M6983-102
6M6984-102 (slim weld)

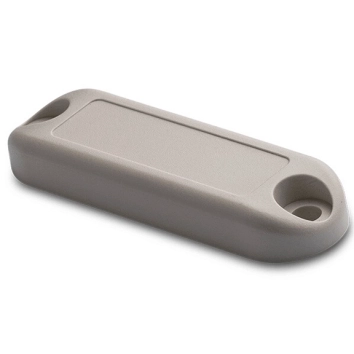

The compact design of the Exo Inline mini has dimensions of 60 × 18 × 8 mm and weighs only 6.3 grams. It is built with high-strength plastic, providing durability against impacts and high temperatures. It also has an IP68 rating, ensuring protection against dust and immersion in water. With a frequency range of 860 to 960 MHz (worldwide), the Exo InLine mini uses the EPC Class 1 Gen2v2 protocol for communication and offers a reading range of up to 3 meters under optimal conditions.
This tag is capable of withstanding operating temperatures ranging from -40°C to +85°C, and it can withstand brief exposures of up to 100°C. Furthermore, it has been designed to withstand impacts of up to 25 kg from a height of 1 meter.
Product codes:
6F1987-102
The HID EXO Keg tags, in their R6 version, incorporate the Impinj Monza R6 chip, which operates in the UHF frequency range (860 to 960 MHz). This chip has a 96-bit EPC memory capacity and a 96-bit TID memory.
These tags have compact dimensions of 52 x 26,5 x 21,4 mm and a lightweight of only 20 grams. They are constructed with high-quality polyamide to ensure durability and resistance. Additionally, they are IP68 certified, making them completely waterproof and suitable for use in demanding environments. The operating temperature range of these tags is wide, ranging from -40°C to +85°C, making them suitable for various applications.
Product Code:
6F1988-102
The EXO Slim 1000 Shell+ labels operate in the UHF frequency range of 865-868 MHz (ETSI) and 902-928 MHz (FCC) and incorporate the NXP UCODE 8 chip. Their screw mounting system allows them to be attached to wood, metal, and plastic, making them versatile for different contexts.
They have dimensions of 89 x 28 x 8.3 mm and weigh 6.7 grams, and are made of polycarbonate, allowing them to function in temperatures ranging from 40°C to +85°C.
Product Codes:
CP14531 (EU)
CP14534 (US)
The EXO Slim750P operates on the UHF Global 860-960 MHz frequencies and integrates the Impinj M730 chip. Their screw attachment system allows them to be attached to wood, metal, and plastic, enabling their use in various circumstances.
They have dimensions of 86 x 24 x 3 mm and weigh 6.7 grams, with a polycarbonate construction that enables them to function in temperatures ranging from -30° to +65° C.
Product Code:
CP16374
