Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

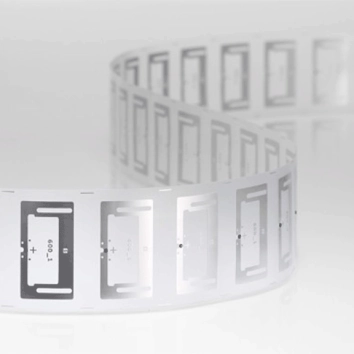

RFID Tag Avery Dennison Minidose NXP U9
The Minidose NXP U9 tag provides outstanding performance when labeling smaller items used in fields such as healthcare and the pharmaceutical industry, such as syringes, plastic vials, and glass.
This tag incorporates the NXP Ucode 9 chip, which features a 96-bit EPC memory and a 96-bit TID memory with a unique 48-bit serial number.
The Minidose has received approval from the RFID laboratory at Auburn University for use in medical applications. It is the smallest inlay available on the market that meets the ARC S category, specifically designed for pharmaceutical applications.
Product description RFID Tag Avery Dennison Minidose NXP U9
Minidose inlays operate in the UHF frequency range of 860-960 MHz and comply with the international standard ISO/IEC 18000-63, EPC Gen 2 V2.
With antenna dimensions of 12 x 22 mm and the ability to operate in a temperature range of -40 °C to 85 °C, the Minidose ensures its performance even in extreme conditions. These features make it the ideal choice to meet all product identification needs in the healthcare field and beyond.
It is available in three formats: Wet, Dry, and Dry+.
The Minidose inlays operate in the UHF frequency band of 860 - 960 MHz and are compatible with the international standard ISO/IEC 18000-63, EPC Gen 2 V2.
It has antenna dimensions of 12 x 22 mm and can operate in a temperature range of -40 °C to 85 °C, ensuring its functionality even in extreme conditions. With all these features, Minidose presents itself as the ideal choice for all product identification needs in the healthcare sector and beyond.
They are available in Wet and Dry formats.
Product codes:
Dry: 3008007 / IL-604002
Wet: 3007987 / IL-603984
The dimensions of this tag are 41.4 x 29 mm, with a UHF frequency band of 860 - 960 MHz, allowing for a reading range of up to 12 meters. Furthermore, it operates smoothly within temperatures ranging from -40 °C to 85 °C. This tag works perfectly on different types of surfaces such as plastics, glass, cardboard, wood, etc.
This product adheres to the international standard ISO 18000-63 Type C, meeting the most demanding standards in the industrial and communication fields with RFID systems.
Product code:
Dry Inlay: RF601172 / IL-603762
Wet Inlay: RF601173 / IL-603763
Label/Sticker: RF100542 / IL-603764
They operate in the UHF frequency range (860 - 960 MHz) and are available in different IC types, including Impinj and NXP. Their EPC memory varies depending on the IC family, and they are made of PP material. In addition, they come with a range of adhesives, both permanent and removable.
Their dimensions are fully customizable to fit any product size, and their temperature range of -40 °C to +85 °C allows them to function in a wide variety of environments.
We guarantee worldwide service in the most convenient formats for the customer.
The Avery Dennison Smartrac Accessory M730 UHF RFID tags have a compact size of 33 x 15 mm, making them easy to convert into an RFID label for end applications such as glasses, jewelry, cosmetics, pharmaceutical products, etc.
This tag complies with the international quality and performance standards ISO 18000-63 EPC class 1 Gen 2, ensuring its proper functioning in complex environments. Furthermore, like all RFID products from Avery Dennison, it is manufactured following the highest industry quality standards.
Product code:
Dry Inlay: 3008300 / IL-604218
Wet Inlay: 3008304 / IL-600040
Label: 3008305 / IL-604223
The Zebra RFD40 Premium reader has a read rate of 1300/second, making it 30% faster than its main competitors. In addition, its trigger offers three different functions, including RFID reading, barcode scanning, and a third user-configurable one.
This device is strong and durable, capable of withstanding drops of up to 1.5 meters thanks to its robust design. It's also IP54 sealed to protect against dust and water ingress, and its optimal operating temperature ranges from -10°C to 50°C (14°F to 122°F).
Other notable features include its 7,000 mAh battery, dimensions of 15.1 cm x 8.4 cm x 16.65 cm and a weight of 521g. In short, the Zebra RFD40 Premium is a state-of-the-art device that offers superior performance over its predecessor, the RFD2000.
Product code:
RFD4031-G00B700-WR
RFD4031-G00B700-E8
RFD4031-G00B700-US
RFD4031-G00B700-TN
RFD4031-G00B700-TH
RFD4031-G00B700-SL
RFD4031-G00B700-JP
RFD4031-G00B700-IN
The Zebra ZD621R has a 4-inch print width and features a 4.3-inch color LCD screen for interacting with its user-friendly configuration menus, which guide the user step by step during material loading and calibration. It has a print resolution of 203 dpi or 300 dpi (optional), and it operates on the Link-OS operating system. It supports identifiers compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63, and RAIN RFID protocols.
It has compact dimensions of only 26.7 cm x 20.2 cm x 19.2 cm, making it a portable printer with its long-lasting battery. It weighs 2.5 kg.
Product codes:
ZD6A142-30EFR2EZ
ZD6A142-31EFR2EZ
ZD6A143-30EFR2EZ
ZD6A143-30ELR2EZ
Dipole's priority has been that the customer can have the most important information about their business at a glance and in real time, with a very intuitive and visual Dashboard. In addition, our software allows you to easily configure all the antennas and readers to adjust the RFID readings as needed.
Some of the benefits of Lama software:
Identification of products throughout the process
Real-time data updates
Easy management of RFID records
Easy hardware configuration
Configuration of alerts according to customer KPIs
Full integration with any type of ERP
Possibility of downloading and saving all the information generated in the way that best suits the client.
If you want to know more about Dipole's RFID Lama software, please contact us and we will explain much more.
Customization of tags
We can customize and encode tags with the data you request.
Print and encode a barcode.
Print images, QR or other necessary data.
Encrypt information
How can we encode in rfid tags?
Data from 96 bits up to 496 bits: encode the EPC
Decimal or Hexadecimal format.
Encrypt tags with passwords in their corresponding memory,
Other types upon request
How can we customize in NFC tags?
Web pages or URL
Texts or ID numbers
Contact Information
Other types of information
