Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

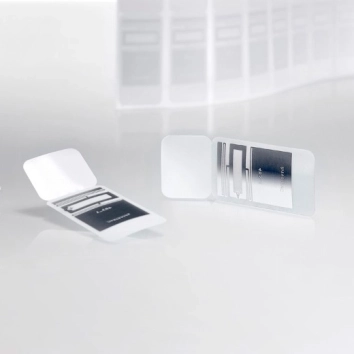

RFID Tag Avery Dennison Midas Flagtag U9XM
The Midas Flagtag U9XM tag is particularly suitable for use on metallic products, thanks to its composition that allows it to be read even when applied to metal surfaces. This is ideal for any industry looking to carry out individual or collective asset identification throughout the entire supply chain, from start to finish.
The label is available in tag format and is compatible with a wide range of surfaces. Furthermore, it features the NXP UCODE 9XM chip, which has 624 bits of user memory and 96 bits of TID memory.
Product description RFID Tag Avery Dennison Midas Flagtag U9XM
The antenna dimensions are 34 x 18 mm, and the overall inlay dimensions are 43 x 21 mm. This is because the flag protrudes to enhance reading performance, achieving distances of up to 20 meters, depending on the environment and surface of application.
Like all RFID products from Avery Dennison, the Midas Flagtag U9XM label has been manufactured to the highest industry quality standards, holding the ISO 18000-63, EPC Class 1 Gen 2 certification.
This tag is characterized by its small and compact size, with a rectangular shape and antenna dimensions of 10 x 17 mm. Additionally, it is available in Wet Inlay and Dry Inlay formats, allowing it to be applied to a wide variety of surfaces, such as wood, paper, glass, plastic, and various non-metallic materials.
This product strictly complies with the international standards of ISO 14443A, ensuring that this tag meets the highest levels of industry security and efficiency.
Product Code:
Wet Inlay: 3002647 / IL-602751
Dry Inlay: 3003265 / IL-602800
This device stands out for its small size and compact design, featuring a rectangular structure with antenna dimensions of 19 x 11,5 mm. Additionally, it is only available in Wet Inlay format for both chip variants and can be used on a wide range of surfaces, such as wood, paper, glass, plastic, and various non-metallic materials.
This product strictly complies with the international standards of ISO 14443A, ensuring that this tag meets the highest levels of security and industry efficiency.
Product Code:
Wet Inlay: 3006628 / IL-603146 (NXP NTAG213)
Wet Inlay: 3006633 / IL-603149 (NXP NTAG210 Micro)
This article has a rectangular shape, and the dimensions of the antenna are 31,41 x 18 mm. It is available in label format, and the color of the front sheet is white.
This tag complies with the international quality and performance requirements ISO 18000-63 EPC class 1 Gen 2, ensuring its proper operation in changing and complex environments. It has also been manufactured to the highest industry quality standards, like all Avery Dennison RFID products.
Product code:
Label: 3006845 / IL-603258
Label: 3007005 / IL-603367
Label: 3006799 / IL-603238
The antenna features a rectangular configuration with dimensions of 47 x 18 mm and operates in the UHF frequency range of 860 to 960 MHz. Its performance is flawless even in extreme conditions, covering temperatures from -40 °C to 85 °C. This tag is available in Label format.
Just like all Avery Dennison's radio frequency identification (RFID) products, this tag is manufactured following the highest industry quality standards. It complies with the international standards of quality and performance ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functionality in complex environments.
Product Code:
Label: 3006991 / IL-603360
Label: 3007153 / IL-603460
This article smoothly operates on various surfaces such as wood, plastic, glass, crystal, and other non-metallic materials. Additionally, it stands out for its compact dimensions of only 11.5 x 19 mm, making it a small-sized product.
AD Midas+ NFC products are based on the ISO 14443 A standard and comply with NFC Forum standards. Our inlays and internal components meet the ISO 9001:2015 quality management and ISO 14001:2015 environmental management standards. This ensures the creation of advanced and reliable products that cater to various application needs.
Product code:
Wet Inlay: 3006628 / IL-603146 (NXP NTAG213)
Wet Inlay: 3006633 / IL-603149 (NXP NTAG210 Micro)
The antenna dimensions are 34,41 x 18 mm, and the overall inlay dimensions are 62 x 21 mm. This is due to the flag that protrudes to enhance reading performance, reaching distances of up to 10 meters.
This tag complies with the international standards of quality and performance ISO 18000-63 EPC Class 1 Gen 2, ensuring proper functionality in variable and complex environments. Additionally, like all Avery Dennison RFID products, it is manufactured following the highest industry quality standards.
Product code:
Label: 3006945 / IL-603327
The antenna has a rectangular design with dimensions of 31.41 x 18 mm and operates at a UHF frequency of 860 to 960 MHz. It functions smoothly in temperatures ranging from -40 °C to 85 °C and is available in Dry Inlay and Label formats.
Like all RFID products from Avery Dennison, the Midas Flagtag Impinj R6 tags are manufactured following the highest industry quality standards and comply with the international performance and quality standard ISO 18000-6C, EPC Class 1 Gen 2.
Product code:
Dry Inlay: 3005881 / IL-602976
Label: 3005582 / IL-602952
The Midas Flagtag M750 tag has dimensions of 43 mm x 21 mm, and the embedding substrate is made of PET. The front sheet is white PET, and the adhesive used is either RA25 or RA2, depending on your choice.
This product complies with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management standards. Its operating temperature ranges from -40°C to 85°C.
You can also find the Avery Dennison Midas Flagtag with other IC options according to your specific needs.
Product codes:
Label: 3008383 / IL-604271
Label: 3008274 / IL-604198
The Midas Flagtag M780 tag has dimensions of 43 mm x 21 mm, and the embedding substrate is made of PET. The front sheet is white PET. This product complies with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management standards. Its operating temperature ranges from -40 °C to 85 °C.
You can also find the Avery Dennison Midas Flagtag with other IC options according to your specific needs.
Product codes:
Label: 3009027 / IL-604767
The Zebra RFD40 reader has a read rate of 1300/second, which is 30% higher than its main competitors. The trigger has three different functions such as RFID reading, barcode scanning and a third one that can be configured by the user. It is a rugged product with a drop test of up to 1.5 meters and an IP54 sealing to protect against dust and water conditions, as well as an optimal operating temperature of -10°C to 50°C / 14°F to 122°F.
It has a 7,000 mAh battery, dimensions of 15.1 cm x 8.4 cm x 16.65 cm and a weight of 521g.
Zebra's RFD40 sled is the next generation model to replace the RFD2000.
Product code:
RFD4030-G00B700-WR
RFD4030-G00B700-US
RFD4030-G00B700-TN
RFD4030-G00B700-TH
RFD4030-G00B700-SL
RFD4030-G00B700-JP
RFD4030-G00B700-IN
RFD4030-G00B700-IL
RFD4030-G00B700-E8
What makes the Nordic ID HH53 particularly powerful is its new Nordic ID NUR2-1W module, providing state-of-the-art UHF RFID reading performance. This device is compatible with the ISO 18000-63 standard (EPC Class 1 Gen2).
In the realm of UHF RFID identification, the device offers antenna modes controlled by software, including linear (horizontal and vertical), circular, and proximity modes. With a typical reading speed of up to 1000 tags per second, this device delivers a reading range of up to 10 meters in linear polarization mode, 6 meters in circular polarization mode, and a reading range of up to 1 centimeter in proximity mode.
Product Code:
In technical terms, this RFID gateway operates on the UHF frequency and is equipped with a 4-port or 2-port UHF RFID reader ETSI (865-868 MHz) FCC (902~928 MHz). The 4 or 2 universal antennas offer a gain of 8.5 dBi, ensuring exceptional performance and high read efficiency of over 99%.
Competitive advantages:
High read reliability
Record movement data in real time and without human intervention
Automation of logistic processes
Ease of use
Addressability
Improved efficiency and error reduction
Guaranteed traceability
The Cubic RS-1100 is made of aluminum and consists of four universal RFID antennas, along with a four-port RFID reader. Additionally, it includes an application software that can be integrated with any management or ERP system, enabling task automation and reducing errors in inventory management. It also facilitates efficient management of goods receiving and dispatching. Preferred applications and uses of Cubic RFID include:
Receptions
Shipments
Picking
Logistics processes
Plastic containers
Cardboard boxes
Product Code:
Dipole Cubic: RS-100-4P
Dipole's priority has been that the customer can have the most important information about their business at a glance and in real time, with a very intuitive and visual Dashboard. In addition, our software allows you to easily configure all the antennas and readers to adjust the RFID readings as needed.
Some of the benefits of Lama software:
Identification of products throughout the process
Real-time data updates
Easy management of RFID records
Easy hardware configuration
Configuration of alerts according to customer KPIs
Full integration with any type of ERP
Possibility of downloading and saving all the information generated in the way that best suits the client.
If you want to know more about Dipole's RFID Lama software, please contact us and we will explain much more.
