RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

RFID Tag Avery Dennison Midas flagtag M750

The Avery Dennison Midas Flagtag M750 is a product designed for item-level labeling, ideal for industries such as automotive, logistics, aviation, and other industrial sectors. With its versatility, it can be applied to various surfaces, particularly metal surfaces, and offers excellent performance in less demanding physical environments. Additionally, it can also be used on plastic and cardboard, functioning as a standard label.

Equipped with the Impinj M750 chip, which provides a 96-bit EPC memory, a 32-bit user memory, and a serialized 96-bit TID with a 48-bit serial number. The flag part of the tag should be placed outside the metal, and the adhesive base uses the metal surface as part of the antenna structure to enhance performance.

Download datasheet double_arrow

Product description RFID Tag Avery Dennison Midas flagtag M750

The Midas Flagtag M750 tag has dimensions of 43 mm x 21 mm, and the embedding substrate is made of PET. The front sheet is white PET, and the adhesive used is either RA25 or RA2, depending on your choice.

This product complies with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management standards. Its operating temperature ranges from -40°C to 85°C.

You can also find the Avery Dennison Midas Flagtag with other IC options according to your specific needs.

Product codes:

Label: 3008383 / IL-604271

Label: 3008274 / IL-604198

Inlays and Tags

Impinj Monza M750

-40 °C to 85 °C / -40 °F to 185 °F

All Surfaces, Wood, Plastic, Non Metal, Metal, Glass

Wet Inlay

ISO 18000-6C, EPC Class 1 Gen 2

96 bits

UHF Global 860-960 MHz

43mm × 24mm

1.69in × 0.94in

You may also be interested in

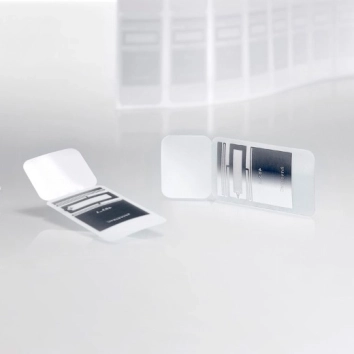

RFID Tag Smartrac Midas Flagtag Impinj R6P

This article has a rectangular shape, and the dimensions of the antenna are 31,41 x 18 mm. It is available in label format, and the color of the front sheet is white. This tag complies with the international quality and performance requirements ISO 18000-63 EPC class 1 Gen 2, ensuring its proper operation in changing and complex environments. It has also been manufactured to the highest industry quality standards, like all Avery Dennison RFID products. Product code: Label: 3006845 / IL-603258 Label: 3007005 / IL-603367 Label: 3006799 / IL-603238

See more double_arrow

RFID Tag Smartrac Dogbone Impinj M730

The Dogbone M730 operates in the UHF Global frequency band 860-960 and has dimensions of 97 x 27 mm. Its robust and resistant design allows it to function in demanding environments and adhere to difficult-to-label surfaces, such as wood or glass. This tag complies with international standards for quality and performance ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in complex environments. Additionally, like all RFID products from Avery Dennison, it is manufactured following the highest industry quality standards. The Dogbone M730 is available in different configurations, offering a wide range of options to suit the specific needs of each business. Product code: Dry Inlay: 3008223 / IL-604163 Wet Inlay: 3008445 / IL-604318 Label: 3008054 / IL-604042

See more double_arrow

Standard RFID Labels

The label adhesives are available in all ranges, from permanent to removable, allowing for a wide range of applications. Dipole manufactures Standard RFID tags with a wide variety of sizes and are ideal for thermal printers or printers with ribbon. They are customizable in all features such as EPC memory, material (paper, cardboard, polyamide, polyethylene, etc.), a variety of adhesives (permanent, removable, for liquids, etc.), or by adding an EAS system. At Dipole, we offer different delivery formats for greater convenience according to customer needs, and we ship worldwide.

See more double_arrow

RFID Labels for Metal

The RFID tags for metals operate in the UHF frequency range of 860-960 MHz and comply with the EPC Class 1 Gen 2 and ISO 18000-6C standards, ensuring their quality and reliability. They can withstand a temperature range of -40 °C to 85 °C / -40 °F to 185 °F, highlighting their suitability for extreme conditions. At Dipole, as manufacturers, we can customize the tags in size and include different prints to better suit the customer's actual needs. We have the capacity to distribute worldwide and in different delivery formats.

See more double_arrow

RFID Handheld Reader Zebra RFD40

The Zebra RFD40 reader has a read rate of 1300/second, which is 30% higher than its main competitors. The trigger has three different functions such as RFID reading, barcode scanning and a third one that can be configured by the user. It is a rugged product with a drop test of up to 1.5 meters and an IP54 sealing to protect against dust and water conditions, as well as an optimal operating temperature of -10°C to 50°C / 14°F to 122°F. It has a 7,000 mAh battery, dimensions of 15.1 cm x 8.4 cm x 16.65 cm and a weight of 521g. Zebra's RFD40 sled is the next generation model to replace the RFD2000. Product code: RFD4030-G00B700-WR RFD4030-G00B700-US RFD4030-G00B700-TN RFD4030-G00B700-TH RFD4030-G00B700-SL RFD4030-G00B700-JP RFD4030-G00B700-IN RFD4030-G00B700-IL RFD4030-G00B700-E8

See more double_arrow

RFID Reader Zebra FX7500

The FX7500 features a slim and attractive form factor, with a low profile and compact size that makes it suitable for virtually any business environment. It's also great for the bottom line, with an impressive set of features that add tremendous value to enterprise-grade applications. It has a sturdy construction made of die-cast aluminum, sheet metal and plastic with dimensions of 19.56cm x 14.99cm x 4.32cm and a weight of 860 g. Product code: Global 4-port: FX7500-42325A50-WR Global 2-port: FX7500-22325A50-WR ETSI 4-port: FX7500-42321A5S-ER

See more double_arrow

RFID Printer Zebra ZD621R

The Zebra ZD621R has a 4-inch print width and features a 4.3-inch color LCD screen for interacting with its user-friendly configuration menus, which guide the user step by step during material loading and calibration. It has a print resolution of 203 dpi or 300 dpi (optional), and it operates on the Link-OS operating system. It supports identifiers compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63, and RAIN RFID protocols. It has compact dimensions of only 26.7 cm x 20.2 cm x 19.2 cm, making it a portable printer with its long-lasting battery. It weighs 2.5 kg. Product codes: ZD6A142-30EFR2EZ ZD6A142-31EFR2EZ ZD6A143-30EFR2EZ ZD6A143-30ELR2EZ

See more double_arrow

RFID Printer Zebra ZT610

The Zebra ZT610 series of RFID printers have the following features: Tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols Adaptive Encoding Technology automatically selects the optimal encoding settings Supports industry standards and multivendor chip serializations You can record the user memory and perform permanent block according to ATA Spec 2000 regulations Allow users to track performance with RFID job monitoring tools Applications can be very diverse: Shipping and receiving, Semi-finished and finished product traceability, Document and medical record management, Product identification/serial numbers, inventory management, Asset tracking, Cross-dock, Receiving/location labelling, order picking/packaging, etc.

See more double_arrow

RFID Antenna Zebra AN510

The Zebra AN510 is an antenna for industrial use as it has IP67 sealing certification that perfectly isolates it from dusty and watery environments to be able to work in environments with a large number of particles in the environment without affecting its performance. It has right circular polarization and SMA Female connection located on the side of the antenna, 68º opening angle, 1 dB axial ratio and 3 v maximum power. Its dimensions are 25 cm x 25 cm x 1.1 cm and a total weight of 750 grams. The optimum operating temperature provided by the manufacturer is from -20C to +55 ºC. Product code: ETSI frequency: AN510-CSCL60004E (Vesa studded mount) ETSI frequency: AN510-CFCL60002E (Flush mount)

See more double_arrow

Universal Laird S8658 RFID Antenna

This device boasts a robust IP54 rating, signifying its resistance to water and its ability to operate in the rain, under dripping conditions, and when subjected to splashes. Additionally, it is sealed in such a way that it can withstand the presence of solid materials larger than 1 mm and prevent dust accumulation. The antenna has a square shape with dimensions of 259 x 259 x 34 mm and weighs 1.13 kg. Product Codes: S8658PR, S8658PL, S8658WPR, and S8658WPL

See more double_arrow
