Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.
RFID Tag Smartrac Midas Flagtag NXP Ucode 8
The Midas Flagtag NXP Ucode 8 tag from Smartrac has been developed for the industry, logistics, and beauty or personal care sectors. It is a cost-effective UHF RFID solution for metallic surfaces, used for product or part authentication, supply chain management, and asset tracking.
The tag is available in Label format and can also be used on plastic and cardboard surfaces. Additionally, it features the integrated NXP UCODE 8 chip, which has a 128-bit EPC memory and a 96-bit TID memory.
The impressive performance of this tag allows for a higher number of reads and writes compared to other competing tags.
Product description RFID Tag Smartrac Midas Flagtag NXP Ucode 8
The antenna dimensions are 34,41 x 18 mm, and the overall inlay dimensions are 62 x 21 mm. This is due to the flag that protrudes to enhance reading performance, reaching distances of up to 10 meters.
This tag complies with the international standards of quality and performance ISO 18000-63 EPC Class 1 Gen 2, ensuring proper functionality in variable and complex environments. Additionally, like all Avery Dennison RFID products, it is manufactured following the highest industry quality standards.
The antenna has a rectangular design with dimensions of 31.41 x 18 mm and operates at a UHF frequency of 860 to 960 MHz. It functions smoothly in temperatures ranging from -40 °C to 85 °C and is available in Dry Inlay and Label formats.

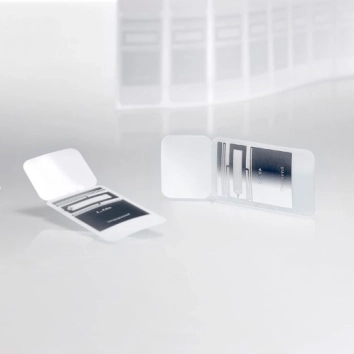

Like all RFID products from Avery Dennison, the Midas Flagtag Impinj R6 tags are manufactured following the highest industry quality standards and comply with the international performance and quality standard ISO 18000-6C, EPC Class 1 Gen 2.
Product code:
Dry Inlay: 3005881 / IL-602976
Label: 3005582 / IL-602952
The antenna features a rectangular configuration with dimensions of 47 x 18 mm and operates in the UHF frequency range of 860 to 960 MHz. Its performance is flawless even in extreme conditions, covering temperatures from -40 °C to 85 °C. This tag is available in Label format.
Just like all Avery Dennison's radio frequency identification (RFID) products, this tag is manufactured following the highest industry quality standards. It complies with the international standards of quality and performance ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functionality in complex environments.
Product Code:
Label: 3006991 / IL-603360
Label: 3007153 / IL-603460
This article has a rectangular shape, and the dimensions of the antenna are 31,41 x 18 mm. It is available in label format, and the color of the front sheet is white.
This tag complies with the international quality and performance requirements ISO 18000-63 EPC class 1 Gen 2, ensuring its proper operation in changing and complex environments. It has also been manufactured to the highest industry quality standards, like all Avery Dennison RFID products.
Product code:
Label: 3006845 / IL-603258
Label: 3007005 / IL-603367
Label: 3006799 / IL-603238
The reader has a rectangular shape with dimensions of 99 x 54 x 20 mm and a weight of 54 grams. Its exceptional performance allows for a greater number of readings and writings compared to other competing devices. Installation and use are characterized by their simplicity and intuitiveness, making handling easy.
This reader complies with the ISO 18000-6C EPC C1 G2 protocol, which implies that this device meets the industry's most demanding quality standards exceptionally.
Product Code: DLR-DK001
The device has an IP54 protection rating, which means it is resistant to the entry of solid objects larger than 1 mm and is capable of protecting against dust. Additionally, it is water-resistant and can withstand splashes, drips, and water jets. It operates smoothly within a temperature range of -10 °C to 40 °C.
The device offers three adjustable power modes: low, medium, and high. In low-power mode, the battery lasts for approximately 11 hours; in medium-power mode, the battery lasts for 7 hours; and in high-power mode, the battery has a duration of 4 hours.
Product code:
The Impinj R420 has 4 ports for antennas with the capacity to manage up to 32 reading zones, a maximum transmission power of 32.5 dBm and has the option of incorporating a GPIO. With this reader we achieve a reading rate of up to 1,100 readings per second.
It has the ISO 18000 63 protocol and global EPC Gen 2 v2 and the maximum benefits of a brand like Impinj, leader in the sector and with many years of experience.
Product code:
Speedway R420 4-port (ETSI): IPJ-REV-R420-EU12M1
Speedway R420 4-port (FCC): IPJ-REV-R420-USA2M1
Speedway R420 4-port (Japan): IPJ-REV-R420-JP22M1
Speedway R420 4-port (GX1): IPJ-REV-R420-GX12M1
Speedway R420 4-port (GX2): IPJ-REV-R420-GX22M1
Speedway R420 4-port (GX3): IPJ-REV-R420-GX32M1
Unlike other readers, the Speedway X-Portal is specifically designed for indoor use. It has an IP52 protection rating, which means it provides protection against solid particles larger than 1 mm and is dust-resistant. Additionally, it offers slight water resistance, capable of withstanding vertical dripping and dripping at an incline of up to 15 degrees.
Furthermore, this reader has a weight of 3 kg and dimensions of 77.5 x 22.2 x 5 cm. Additionally, the device is synchronized with a real-time clock.
Product Code:
Speedway R640
The Zebra AN510 is an antenna for industrial use as it has IP67 sealing certification that perfectly isolates it from dusty and watery environments to be able to work in environments with a large number of particles in the environment without affecting its performance.
It has right circular polarization and SMA Female connection located on the side of the antenna, 68º opening angle, 1 dB axial ratio and 3 v maximum power.
Its dimensions are 25 cm x 25 cm x 1.1 cm and a total weight of 750 grams. The optimum operating temperature provided by the manufacturer is from -20C to +55 ºC.
Product code:
ETSI frequency: AN510-CSCL60004E (Vesa studded mount)
ETSI frequency: AN510-CFCL60002E (Flush mount)
The Zebra AN620 is IP54 certified for environmental sealing so it can be used in conditions where there is a lot of dust in the environment without worrying that performance will be affected. It uses the 865 – 868 MHz UHF RFID frequency for the European Union and the: 902 – 928 MHz for the United States. It has a left-hand circular polarization and an N-type female connector.
The body of this antenna is made of Kydex, a very resistant type of thermoplastic acrylic based on polyvinyl chloride to guarantee the long life of this product. It measures 39.1 cm x 27.5 cm x 1.2 cm and weighs 1 kg.
The operating temperature specified by the manufacturer is -20ºC to +55ºC.
Product code:
ETSI: AN620-SCL71130EU
The device features a high degree of protection, known as IP67, which means it is completely resistant to solids larger than 1 mm in size and dust. It also has water resistance that allows it to withstand splashes, rain, dripping, water jets, and can be submerged up to 1 meter deep for 30 minutes.
The exceptional performance of this antenna results in a higher number of readings and writings compared to other competing devices, in addition to offering impressive resistance and durability.
Product Code:
S8655PR
S8655PL
This device boasts a robust IP54 rating, signifying its resistance to water and its ability to operate in the rain, under dripping conditions, and when subjected to splashes. Additionally, it is sealed in such a way that it can withstand the presence of solid materials larger than 1 mm and prevent dust accumulation.
The antenna has a square shape with dimensions of 259 x 259 x 34 mm and weighs 1.13 kg.
Product Codes:
S8658PR, S8658PL, S8658WPR, and S8658WPL
