RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

RFID Tag Avery Dennison Dogbone Impinj M781

The Avery Dennison Dogbone Impinj M781 RFID tag is specially designed to meet the needs of various applications in the global supply chain, industrial sectors, asset management, and sports timing. This innovative tag utilizes high-quality RFID technology, enabling companies to optimize their logistics and asset management efficiently.

Equipped with the powerful Impinj M780 chip, this tag features a 128-bit EPC memory and a 512-bit user memory. The chip offers enhanced reading and writing sensitivity, allowing for faster and more accurate bulk reading compared to previous technologies like the Impinj Monza 4.

Download datasheet double_arrow

Product description RFID Tag Avery Dennison Dogbone Impinj M781

The Dogbone M781 operates in the UHF Global 860-960 frequency band and has dimensions of 97 x 27 mm. Its robust and durable design allows it to function in demanding environments and adhere to difficult-to-label surfaces such as wood or glass.

The tag complies with international quality and performance standards ISO 18000-63 EPC class 1 Gen 2, ensuring its proper functioning in complex environments. Additionally, like all Avery Dennison RFID products, it is manufactured following the highest industry quality standards.

The Dogbone M781 is available in different configurations, offering a wide range of options to suit the specific needs of each business.

Product Codes:

Dry Inlay: 3008736 / IL-604554

Wet Inlay: 3008747 / IL-604561

Label / Sticker: 3008749 / IL-604563

UHF

Inlays and Tags

-40 °C to 85 °C / -40 °F to 185 °F

Label / Sticker, Wet Inlay, Dry Inlay

ISO 18000-63, EPC Class 1 Gen 2

128 bits

UHF Global 860-960 MHz

Impinj Monza M781

97mm × 27mm

3.82in × 1.06in

You may also be interested in

RFID Tag Smartrac Dogbone Impinj Monza R6P

The article is available in Dry Inlay, Wet Inlay, and Label/Sticker formats and can be applied to surfaces such as wood, glass, different plastics, and non-metallic materials. It operates in the UHF frequency range of 860 - 960 MHz and has a rectangular design with dimensions of 94 x 24 mm. This product complies with the international standard ISO 18000-63, EPC Class 1 Gen 2, meeting the most demanding standards in the industrial and communication fields with RFID systems. Product Code: Dry Inlay: 3005071 / IL-602874 Wet Inlay: 3005072 / IL-602875 Label/Sticker: 3005073 / IL-602876

See more double_arrow

RFID Tag Smartrac Dogbone Impinj Monza R6

The Dogbone R6 operates in the UHF Global 860-960 frequency band and has dimensions of 94 x 24 mm. It has an optimal operating temperature range from -40 °C to 85 °C. This tag can be applied to wood, glass, and non-metallic materials. Like all RFID products from Avery Dennison, the Dogbone R6 tag is manufactured according to the highest industry quality standards to ensure its proper functioning in complex environments and complies with the international standard ISO 18000-63 EPC Class 1 Gen 2. Available delivery formats include dry, wet, and label. The Dogbone is available with other internal chips that vary in their specifications so that customers can choose according to their business needs. Product Code: Dry Inlay: 3004004 / IL-602812 Wet Inlay: 3004005 / IL-602813 Label/Sticker: 3004006 / IL-602814

See more double_arrow

RFID Tag Smartrac Dogbone Impinj M730

The Dogbone M730 operates in the UHF Global frequency band 860-960 and has dimensions of 97 x 27 mm. Its robust and resistant design allows it to function in demanding environments and adhere to difficult-to-label surfaces, such as wood or glass. This tag complies with international standards for quality and performance ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in complex environments. Additionally, like all RFID products from Avery Dennison, it is manufactured following the highest industry quality standards. The Dogbone M730 is available in different configurations, offering a wide range of options to suit the specific needs of each business. Product code: Dry Inlay: 3008223 / IL-604163 Wet Inlay: 3008445 / IL-604318 Label: 3008054 / IL-604042

See more double_arrow

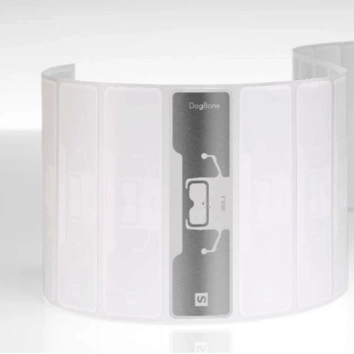

RFID Tag Avery Dennison Dogbone Impinj M780 Volume

Tag RFID Avery Dennison Dogbone Impinj M780

The Dogbone M780 operates on the global UHF frequency band of 860-960 MHz and has dimensions of 94 x 24 mm. Its optimal operating temperature ranges from -40°C to 85°C. This tag can be applied on wood, glass, and more. Like all Avery Dennison RFID products, the Dogbone M780 tag is manufactured to the highest industry quality standards to ensure its proper functioning in complex environments and complies with the international standard ISO 18000-63 EPC Class 1 Gen 2. The available delivery formats include dry, wet, and label. Product code: 3009040 / IL-604777

See more double_arrow

Universal Laird S8658 RFID Antenna

This device boasts a robust IP54 rating, signifying its resistance to water and its ability to operate in the rain, under dripping conditions, and when subjected to splashes. Additionally, it is sealed in such a way that it can withstand the presence of solid materials larger than 1 mm and prevent dust accumulation. The antenna has a square shape with dimensions of 259 x 259 x 34 mm and weighs 1.13 kg. Product Codes: S8658PR, S8658PL, S8658WPR, and S8658WPL

See more double_arrow

RFID Reader Zebra FX7500

The FX7500 features a slim and attractive form factor, with a low profile and compact size that makes it suitable for virtually any business environment. It's also great for the bottom line, with an impressive set of features that add tremendous value to enterprise-grade applications. It has a sturdy construction made of die-cast aluminum, sheet metal and plastic with dimensions of 19.56cm x 14.99cm x 4.32cm and a weight of 860 g. Product code: Global 4-port: FX7500-42325A50-WR Global 2-port: FX7500-22325A50-WR ETSI 4-port: FX7500-42321A5S-ER

See more double_arrow

Zebra RFD8500 RFID Handheld Reader

With Zebra's RFD 8500 reader, workers can capture tags and barcodes faster and with ease, improving productivity, operational capacity and customer service. This reader is compatible with the Android, iOS and Windows operating systems and has a high-performance battery to endure work days without having to worry about the autonomy of the device. Zebra is aware of the possible drops that these devices can suffer, which is why it has tested its products to repeated drops of up to 1.2 meters on a concrete floor and an IP52 seal for use in dusty environments and possible splashing water. The size of the device is 13cm x 8cm x 18.5cm, total weight 435g, and usage temperature is -10°C to 40°C/14°F to 104°F. Product code: RFD8500-5000100-EU RFD8500-1000100-EU RFD8500-5000100-US

See more double_arrow

RFID Handheld Reader Zebra RFD40

The Zebra RFD40 reader has a read rate of 1300/second, which is 30% higher than its main competitors. The trigger has three different functions such as RFID reading, barcode scanning and a third one that can be configured by the user. It is a rugged product with a drop test of up to 1.5 meters and an IP54 sealing to protect against dust and water conditions, as well as an optimal operating temperature of -10°C to 50°C / 14°F to 122°F. It has a 7,000 mAh battery, dimensions of 15.1 cm x 8.4 cm x 16.65 cm and a weight of 521g. Zebra's RFD40 sled is the next generation model to replace the RFD2000. Product code: RFD4030-G00B700-WR RFD4030-G00B700-US RFD4030-G00B700-TN RFD4030-G00B700-TH RFD4030-G00B700-SL RFD4030-G00B700-JP RFD4030-G00B700-IN RFD4030-G00B700-IL RFD4030-G00B700-E8

See more double_arrow

RFID Printer Zebra ZD621R

The Zebra ZD621R has a 4-inch print width and features a 4.3-inch color LCD screen for interacting with its user-friendly configuration menus, which guide the user step by step during material loading and calibration. It has a print resolution of 203 dpi or 300 dpi (optional), and it operates on the Link-OS operating system. It supports identifiers compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63, and RAIN RFID protocols. It has compact dimensions of only 26.7 cm x 20.2 cm x 19.2 cm, making it a portable printer with its long-lasting battery. It weighs 2.5 kg. Product codes: ZD6A142-30EFR2EZ ZD6A142-31EFR2EZ ZD6A143-30EFR2EZ ZD6A143-30ELR2EZ

See more double_arrow

RFID Printer Zebra ZT620

The Zebra ZT620 series of RFID printers have the following features: Tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols Adaptive Encoding Technology automatically selects the optimal encoding settings Supports industry standards and multi-vendor chip serializations You can record the user memory and perform permanentblock according to ATA Spec 2000 regulations Allow users to track performance with RFID job monitoring tools Applications can be very diverse: Shipping and receiving, Semi-finished and finished product traceability, Document and medical record management, Product identification/serial numbers, Inventory management, Asset tracking, Cross-dock, Receiving/location labelling, Order picking/packaging, etc.

See more double_arrow

RFID Software Lama

Dipole's priority has been that the customer can have the most important information about their business at a glance and in real time, with a very intuitive and visual Dashboard. In addition, our software allows you to easily configure all the antennas and readers to adjust the RFID readings as needed. Some of the benefits of Lama software: Identification of products throughout the process Real-time data updates Easy management of RFID records Easy hardware configuration Configuration of alerts according to customer KPIs Full integration with any type of ERP Possibility of downloading and saving all the information generated in the way that best suits the client. If you want to know more about Dipole's RFID Lama software, please contact us and we will explain much more.

See more double_arrow
