Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.
Tag HID RFID Epoxy UHF
HID Epoxy UHF are high quality RFID tags, designed to offer optimal performance in adverse conditions. Its epoxy resin casing protects advanced embedded chips, enabling the use of RFID technology to accelerate logistics speeds and improve data accuracy in a wide spectrum of rugged industrial applications.
Resistant to fuels, mineral oils, petroleum and salt spray, these labels repel moisture, even in high-temperature, high-pressure washdowns. Their ability to maintain consistent performance despite temperature fluctuations allows them to adapt to demanding applications. These labels can withstand repeated autoclaving in medical applications and plastic injection molding processes to be permanently integrated into industrial components, equipment or containers.
The HID Epoxy Tag UHF uses the UHF Global 865-956 MHz frequency and features 128-bit EPC memory. One of the key advantages of this product is its thermal stability, which means that it can withstand extreme temperatures from -40° to 90° C without losing its functionality. Additionally, the tag surface is printable, allowing for visual identification and RFID reading.
It is made of black epoxy and has dimensions of 83mm × 25mm × 1mm. It is designed to be applied to glass, plastic or wood.
It has IP 68 and IP69K protection for environmental protection, as well as IEC 68.2.6 anti-vibration and IEC 68.2.29 anti-shock certification.
The HID Epoxy Tag Keyfob uses the HF 13.56 MHz frequency (NFC) and has a 8 Kb memory. One of the key advantages of this product is its thermal stability, which means that it can withstand extreme temperatures of -40° at 140° C without losing its functionality. Additionally, the tag surface is printable, allowing for visual identification and RFID reading.
It is made of black epoxy and has dimensions of 30mm × 45mm × 1.6mm with a fixing hole of approximately 5mm. It is designed to be applied to glass, plastic or wood.
It has IP 68 and IP69K protection for environmental protection as well as IEC 68.2.6 anti-vibration and IEC 68.2.29 anti-shock certification.
Product code:
6D6140-101
The HID Epoxy Tag LF Disc 20mm uses the LF 125 kHz frequency and has a 2048 bit memory. One of the key advantages of this product is its thermal stability, which means that it can withstand extreme temperatures from -25° to 85° C without losing its functionality. Additionally, the tag surface is printable, allowing for visual identification and RFID reading.
It is made of black epoxy and has dimensions of 20 mm × 20 mm × 1 mm. It is designed to be applied to glass, plastic or wood.
It has IP 68 and IP69K protection for environmental protection, as well as IEC 68.2.6 anti-vibration and IEC 68.2.29 anti-shock certification.
Product code:
624112

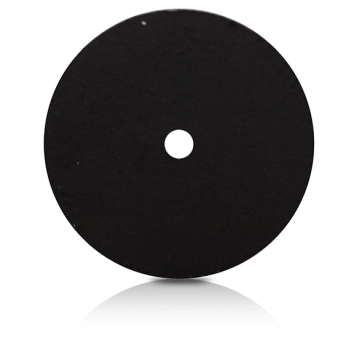

The HID Epoxy Tag LF Disc 30mm uses the LF 125 kHz frequency and has a 64 bit readable memory. One of the key advantages of this product is its thermal stability, which means that it can withstand extreme temperatures from -25° to 85° C without losing its functionality. Additionally, the tag surface is printable, allowing for visual identification and RFID reading.
It is made of black epoxy and has dimensions of 30 mm × 30 mm × 1 mm. It is designed to be applied to glass, plastic or wood.
It has IP 68 and IP69K protection for environmental protection, as well as IEC 68.2.6 anti-vibration and IEC 68.2.29 anti-shock certification.
Product code:
601143
HID Bin Tag Unique are passive RFID tags that operate at an HF frequency of 13.56 MHz and have 1024 bits of EEPROM memory. They are made of blue polyamide, measuring 30 mm x 15 mm x 30 mm in size and weighing just 6.4g. The read range of this tag varies depending on the reader, environmental conditions, and the surface where the tag is affixed.
These tags offer an IP 67 rated environmental water resistance, making them resistant to extreme temperatures from -40° C to 90° C. They are also certified for shock (IEC 68.2.29) and vibration resistance. (IEC 68.2.6) to ensure optimal performance under difficult conditions of use. They comply with ISO 15693 and ISO 18000-3 standards.
Product code:
729103-102B
HID Bin Tag Unique uses a Low Frequency (LF) frequency of 134.2 kHz and has 128-bit read memory. These tags are made from red polyamide, measure 30mm x 15mm x 30mm and weigh just 6.4g. The read range of the tag will depend on the reader used, the environmental conditions and the surface on which it is placed.
The tag is rated IP67 waterproof and can withstand extreme temperatures ranging from -40 °C to 90 °C. In addition, it has shock (IEC 68.2.29) and vibration (IEC 68.2.6) resistance certifications to ensure optimal performance even in adverse conditions.
Product code:
6B7104-102R
The HID Bin Tag FDX-B BDE works with a 134.2 kHz LF frequency with a 128 bit read memory. It is made of yellow polyamide, with a size of 30 mm x 15 mm x 28.5 mm and a weight of only 6.4 g. The read range that this tag can offer will vary depending on the reader, environmental conditions, and the surface where the tag is attached.
It has IP 67 environmental resistance to water resistant in extreme temperature conditions from -40° to 90° C. It is also certified for IEC 68.2.29 shock and IEC 68.2.6 vibrations to guarantee maximum performance even if the conditions of use are complicated.
Product code:
784104-102Y
The FX7500 features a slim and attractive form factor, with a low profile and compact size that makes it suitable for virtually any business environment. It's also great for the bottom line, with an impressive set of features that add tremendous value to enterprise-grade applications.
It has a sturdy construction made of die-cast aluminum, sheet metal and plastic with dimensions of 19.56cm x 14.99cm x 4.32cm and a weight of 860 g.
Product code:
Global 4-port: FX7500-42325A50-WR
Global 2-port: FX7500-22325A50-WR
ETSI 4-port: FX7500-42321A5S-ER
The Impinj R420 has 4 ports for antennas with the capacity to manage up to 32 reading zones, a maximum transmission power of 32.5 dBm and has the option of incorporating a GPIO. With this reader we achieve a reading rate of up to 1,100 readings per second.
It has the ISO 18000 63 protocol and global EPC Gen 2 v2 and the maximum benefits of a brand like Impinj, leader in the sector and with many years of experience.
Product code:
Speedway R420 4-port (ETSI): IPJ-REV-R420-EU12M1
Speedway R420 4-port (FCC): IPJ-REV-R420-USA2M1
Speedway R420 4-port (Japan): IPJ-REV-R420-JP22M1
Speedway R420 4-port (GX1): IPJ-REV-R420-GX12M1
Speedway R420 4-port (GX2): IPJ-REV-R420-GX22M1
Speedway R420 4-port (GX3): IPJ-REV-R420-GX32M1
Customization of tags
We can customize and encode tags with the data you request.
Print and encode a barcode.
Print images, QR or other necessary data.
Encrypt information
How can we encode in rfid tags?
Data from 96 bits up to 496 bits: encode the EPC
Decimal or Hexadecimal format.
Encrypt tags with passwords in their corresponding memory,
Other types upon request
How can we customize in NFC tags?
Web pages or URL
Texts or ID numbers
Contact Information
Other types of information
