Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.
Sentry Cable Tag Holder
The Sentry Cable Tag Holder represents the most efficient way to mount Sentry Cable RFID tags. Made from high-performance thermoplastic polyester resin, these holders are secured with industrial-grade screws. They are designed to withstand the tough conditions that cables are often subjected to. From impacts and pressures to temperature extremes, cable tag holders ensure that the integrated RFID tag remains secure and protected, ensuring that the data you need is always at your fingertips.
One of the features of this product is its clear and durable window. This window not only allows for the reading of a barcode or a human-readable label but also protects the tag from the environment it may be exposed to. This feature provides a dual function: on the one hand, it facilitates quick cable identification, and on the other hand, it extends the tag's lifespan by shielding it from external factors.
Sentry Cable Tag Holders are available in various sizes and colors to match any cable, offering additional visual differentiation. It's an advantage that may seem minor but can be essential in practice, especially in environments where quick and accurate cable identification can be crucial.
It's a small detail that demonstrates the careful design and attention to the end user that has been put into these RFID tag carriers.
As for the technical specifications, HID Sentry Cable tags operate at frequencies of 865-868 MHz (ETSI) and 902-928 MHz (FCC). They have an M750 chip with a 96-bit EPC and 32-bit UM memory. Their dimensions are 36.3 × 10.9 × 2.8 mm and can be mounted using adhesive or a special cable bracket.
They are especially suitable for insulated metal, made of PCB material, and have an IP68 water resistance rating. They can operate in temperatures ranging from -50°C to 85°C and comply with EPC C1G2 and ISO 18000-6C standards.
Product Code:
AST1-163-0310 (EU)
AST1-163-0300 (US)

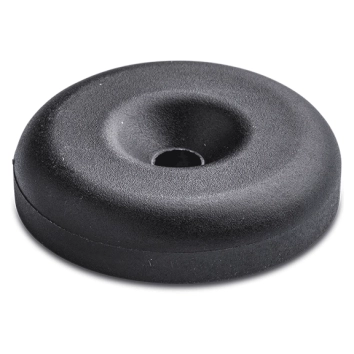

The Poly Tags incorporate Unique chips that operate at the LF 125 kHz frequency. Each tag is completely waterproof and provides consistent reading across a wide range of temperatures, from -20°C to 85°C.
In terms of physical specifications and durability, the tags are made of PA6 material and come in black color. Their compact design has a diameter of 34 mm, a height of 8 mm on the axis, and a diameter of 0.59 inches for the cap. They are waterproof, complying with the IP68 standard, and demonstrate exceptional resistance to flames, vibrations, and impacts, according to international standards.
Product Code:
601131-010
Speaking of their specifications, these tags operate in the UHF band at 860-960 MHz (worldwide) and feature the Monza R6-P chip. Their resistance to abrupt temperature changes, ranging from -40°C to +85°C, is impressive. Adding to their robustness, they are certified IP68, showcasing their ability to resist water immersion, reaffirming their effectiveness in adverse scenarios.
Regarding their design, these compact and slim tags have dimensions of 18 mm in diameter and 3 mm in height. They are composed of tough materials like Polycarbonate, and weighing only 0.75 grams, they prove to be a perfect solution for applications seeking long-term reliability and resilience.
Product Code:
6H2112
From a technical standpoint, these tags operate at the HF frequency of 13.56 MHz. They are available with the ICODE SLIX 2 chip. They are acclaimed for their ability to withstand extreme weather conditions, with ranges from -40º C to +85º C. Their IP68 certification attests to their water resistance, reinforcing their adaptability to demanding situations.
However, their application goes beyond that. They are essential in medical centers. In such scenarios, they facilitate the tracking of clothing, surgical tools, and essential equipment. By ensuring and monitoring cleaning and sterilization procedures, they provide an advanced level of protection against infections, benefiting both patients and healthcare professionals.
Product code:
629110-411
HID's IQ 550P operates at a frequency ranging from 8865 to 956 MHz, equipped with an M3D type chip. Their memory capacity includes 128 bits for EPC, 64 bits for TID, and 128 bits for user memory. These tags allow readings at distances of up to 2.2 meters, and their dimensions are 104 x 24 x 0.3 mm.
Their application is easy thanks to a special adhesive, and they are constructed with high-quality synthetic material, giving them water resistance, complying with IP68 standards. Furthermore, they operate over a wide temperature range, from -40°C to +125°C. They are in compliance with UHF EPC Class 1 Gen 2 and ISO 18000-6C standards.
Product code:
CP15528

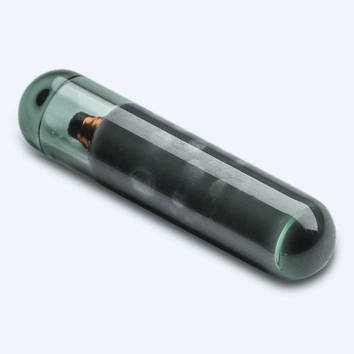

The Glass Nova operates in the LF frequency of 125 kHz and has a 160-bit EEPROM memory that can be electrically programmed, erased, and reprogrammed. They have a size of Ø 3.15 x 13.3 mm.
They operate in a temperature range of -25°C to +85°C, they are resistant to exposure to alcohol, 25% ammonium chloride, fuel B, 10% HCl, and saltwater, and comply with EN 60079-0:2009; EN 60079-11:2007; EN 60079-26:2007 standards.
Product code:
610310

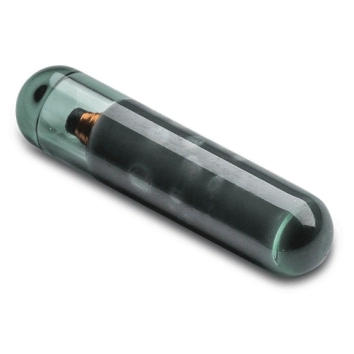

The Glass Unique operates at the LF frequency of 127 kHz (12 mm), 125 kHz (22 mm), or 131 kHz (13 mm). They are made with Bioglass and are available in three very small size options: 12 mm with a diameter of 2.1 mm, 21.7 mm with a diameter of 4 mm, and 13.3 mm with a diameter of 3 mm.
These tags can operate over a wide temperature range, from -25°C to +85°C. Additionally, they are resistant to exposure to alcohol, 25% ammonium chloride, fuel B, 10% HCL, and seawater. They comply with the EN 60079-0:2009, EN 60079-11:2007, and EN 60079-26:2007 regulations.
Product codes:
601201-002 (12 mm)
601203 (13 mm)
601209 (22 mm)
The Glass FDX-b BDE tags operate in the LF frequency of 134.5 kHz and are constructed with Bioglass. These tags are available in two very small sizes, with diameters of only 13.3 mm and 3.15 mm, and 21.7 mm and 4 mm respectively.
Furthermore, they can operate within a wide temperature range, from -25°C to +85°C. They are also capable of resisting exposure to substances such as alcohol, 25% ammonium chloride, fuel B, 10% HCL, and seawater. They comply with the EN 60079-0:2009; EN 60079-11:2007; EN 60079-26:2007 regulations.
Product codes:
684244 (13 mm)
684251 (22 mm)
These RFID tags, resistant to water and oils, efficiently repel moisture, petroleum byproducts, and salt spray. They operate at a frequency of 860-960 MHz and are equipped with an M730 chip. Additionally, their 128-bit EPC memory allows a reading distance of up to 12 meters, making them easily applicable to a variety of surfaces.
Their versatility and robustness make IQ Pro tags ideal for various fields. They can be found in automation and manufacturing, the automotive industry, aerospace, machinery, asset management, and logistics. They are particularly useful for container tracking, waste management, and the transport of returnable items.
Product code:
CP13445
The IQ OM 5s operate on the 13.56 MHz frequency and are in compliance with ISO/IEC 14443A standards, NFC Forum Tag Type 2. Weighing only 2 grams and with a compact size of 30 mm × 30 mm × 0.8 mm, they are remarkably small and light.
These tags are IP68 certified for industrial applications, withstanding 24 hours at a depth of up to 1 meter in water up to 20 °C without their performance being affected. Additionally, they can withstand temperatures ranging from -20° to +70° C.
Product code:
6E3M30
