Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

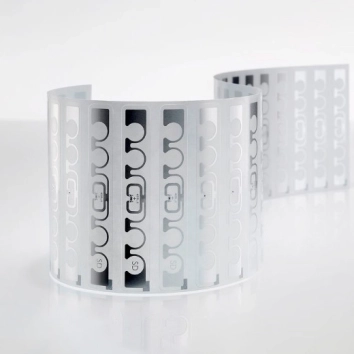

RFID Tag Smartrac ShortDipole NXP Ucode G2iL
The AD Shortdipole tags are specifically designed and optimized for global retail, industry, and supply chain applications. They offer outstanding performance worldwide, even on materials with lower susceptibility to interference, such as cardboard and plastic.
These tags are suitable for use with a wide variety of supply chain labels and are available in Wet Inlay format. They come equipped with the NXP UCODE G2iL chip, which provides a unique identification (TID) and a 128-bit memory capacity.
The incredible performance provided by this tag allows for a higher number of reads and writes compared to other competing tags.
Product description RFID Tag Smartrac ShortDipole NXP Ucode G2iL
This product operates in the UHF frequency band, within a range spanning from 860 MHz to 960 MHz. The antenna measures 93 mm in length by 11,05 mm in width, and it is available in Wet Inlay format.
This tag complies with the rigorous international standards of quality and performance ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper operation in complex and dynamic environments. Additionally, it is manufactured following the highest industry quality standards, just like all RFID products from Avery Dennison.
The antenna has a rectangular shape with dimensions of 93 x 11 mm, making it suitable for use in the supply chain. Furthermore, it is only available in Wet Inlay format, which offers flexible options for integration into different applications and products.
This tag complies with the international standards of quality and performance ISO 18000-63 EPC class 1 Gen 2, ensuring its proper functioning even in complex environments. Additionally, like all Avery Dennison RFID products, it is manufactured following the highest industry quality standards, thus ensuring reliability and durability.
Product Code:
Wet Inlay: 3001974 / IL-602588
The antenna, measuring 92,75 x 11 mm, has a rectangular shape that makes it perfect for the supply chain. Additionally, it is available in Dry Inlay and Wet Inlay formats, providing flexible options for different applications in all types of products.
Complying with the international standards ISO 18000-63 EPC class 1 Gen 2, this RFID tag guarantees optimal performance even in challenging environments. Furthermore, like all RFID technology products manufactured by Avery Dennison, it is produced according to the highest industry quality standards, ensuring reliability and durability.
Product Code:
Dry Inlay: 3005076 / IL-602879
Wet Inlay: 3005077 / IL-602880
This product operates with UHF frequency in a frequency range of 860 to 960 MHz. The antenna dimensions are 93 x 11 mm, and it is available in Dry Inlay, Wet Inlay, and Label formats.
This tag complies with international quality and performance standards ISO 18000-63 EPC class 1 Gen 2, ensuring its proper operation in complex and changing environments. Additionally, it is manufactured following the highest industry quality standards, just like all RFID products from Avery Dennison.
Product Code:
Dry Inlay: 3002652 / IL-602753
Wet Inlay: 3002653 / IL-602754
Label: 3002654 / IL-602755
With dimensions of 92,75 x 11 mm, the antenna features a rectangular shape that makes it suitable for implementation in the supply chain. Furthermore, it is available in Dry Inlay and Wet Inlay formats, providing flexible options for integration into various applications and products.
It ensures proper functioning even in complex environments, as it complies with international standards of quality and performance ISO 18000-63 EPC class 1 Gen 2. Additionally, like all Avery Dennison RFID technology products, it is manufactured according to the highest industry quality standards, thus ensuring reliability and durability.
Product Code:
Dry Inlay: 3004232 / IL-602822
Wet Inlay: 3004272 / IL-602824
Using UHF technology (860-960 MHz), these tags offer exceptional performance and unparalleled accuracy in the market. With a thickness ranging from 0.25 to 5 mm, Dipole Timing tags are the thinnest and most precise ones available in the current market and comply with ISO 18000-6C Class 1 Generation 2 standards, ensuring their quality and compatibility with existing systems.
With a wide operating temperature range from -40°C to +85°C, these tags can withstand extreme conditions and continue to function optimally.
The Zebra RFD40 reader has a read rate of 1300/second, which is 30% higher than its main competitors. The trigger has three different functions such as RFID reading, barcode scanning and a third one that can be configured by the user. It is a rugged product with a drop test of up to 1.5 meters and an IP54 sealing to protect against dust and water conditions, as well as an optimal operating temperature of -10°C to 50°C / 14°F to 122°F.
It has a 7,000 mAh battery, dimensions of 15.1 cm x 8.4 cm x 16.65 cm and a weight of 521g.
Zebra's RFD40 sled is the next generation model to replace the RFD2000.
Product code:
RFD4030-G00B700-WR
RFD4030-G00B700-US
RFD4030-G00B700-TN
RFD4030-G00B700-TH
RFD4030-G00B700-SL
RFD4030-G00B700-JP
RFD4030-G00B700-IN
RFD4030-G00B700-IL
RFD4030-G00B700-E8
The FX7500 features a slim and attractive form factor, with a low profile and compact size that makes it suitable for virtually any business environment. It's also great for the bottom line, with an impressive set of features that add tremendous value to enterprise-grade applications.
It has a sturdy construction made of die-cast aluminum, sheet metal and plastic with dimensions of 19.56cm x 14.99cm x 4.32cm and a weight of 860 g.
Product code:
Global 4-port: FX7500-42325A50-WR
Global 2-port: FX7500-22325A50-WR
ETSI 4-port: FX7500-42321A5S-ER
Impinj's R700 reader features 4 antenna ports and can handle up to 32 read zones, built-in GPIO, a 1Ghz dual-core processor speed, and is the only reader with up to Gigabit Ethernet connectivity.
It has the ISO 18000 63 protocol and global EPC Gen 2 v2 and the maximum benefits of a brand like Impinj, leader in the sector and with many years of experience.
Product code:
Impinj R700 (ETSI), 865-868 MHz, 915 - 921 MHz: IPJ-R700-241
Impinj R700 (FCC, GX), 902 - 928 MHz: IPJ-R700-341
Impinj R700 (Japón), 916,7 - 920,9 MHz: IPJ-R700-441
The Zebra AN610 is IP54 certified for environmental sealing so it can be used in conditions where there is a lot of dust in the environment without worrying that performance will be affected. It uses the 865 – 868 MHz UHF RFID frequency for the European Union and the: 902 – 928 MHz for the United States. It has a left-hand circular polarization and an N-type female connector.
The body of this antenna is made of Kydex, a very resistant type of thermoplastic acrylic based on polyvinyl chloride to guarantee the long life of this product. It measures 27.5 cm x 21.4 cm x 1.2 cm and weighs 600 grams.
The operating temperature specified by the manufacturer is -20ºC to +55ºC.
Product code:
ETSI frequency: AN610-SCL71128EU
The device features a high degree of protection, known as IP67, which means it is completely resistant to solids larger than 1 mm in size and dust. It also has water resistance that allows it to withstand splashes, rain, dripping, water jets, and can be submerged up to 1 meter deep for 30 minutes.
The exceptional performance of this antenna results in a higher number of readings and writings compared to other competing devices, in addition to offering impressive resistance and durability.
Product Code:
S8655PR
S8655PL
This device boasts a robust IP54 rating, signifying its resistance to water and its ability to operate in the rain, under dripping conditions, and when subjected to splashes. Additionally, it is sealed in such a way that it can withstand the presence of solid materials larger than 1 mm and prevent dust accumulation.
The antenna has a square shape with dimensions of 259 x 259 x 34 mm and weighs 1.13 kg.
Product Codes:
S8658PR, S8658PL, S8658WPR, and S8658WPL
The Zebra ZT610 series of RFID printers have the following features:
Tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
Adaptive Encoding Technology automatically selects the optimal encoding settings
Supports industry standards and multivendor chip serializations
You can record the user memory and perform permanent block according to ATA Spec 2000 regulations
Allow users to track performance with RFID job monitoring tools
Applications can be very diverse: Shipping and receiving, Semi-finished and finished product traceability, Document and medical record management, Product identification/serial numbers, inventory management, Asset tracking, Cross-dock, Receiving/location labelling, order picking/packaging, etc.
Some features for the Zebra ZT421 printer printers for RFID encoding are:
Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
Integrated RFID system can be upgraded by the user in the field and is available for 4-inch and 6-inch models
Flexible encoding technology automatically selects optimal encoding settings
Field-installable RFID metal kit available on ZT411
Applications can be very diverse: Shipping and receiving, Semi-finished and finished product traceability, Document and medical record management, Product identification/serial numbers, Inventory management, Asset tracking, Cross-dock, Receiving/location labelling, Order picking/packaging, etc.
