RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

Tag RFID HID EXO Pro InLine

The HID RFID EXO Pro InLine tags have been developed with exceptional intelligence to provide efficient asset tracking in demanding industrial environments. These tags, known for their durability and versatility, can be easily mounted on various surfaces such as metal, plastic, or wood, thanks to their compatibility with standard screws, rivets, industrial adhesives, and even welding.

One of the key highlights of the EXO Pro InLine tags is their innovative patented 3D antenna. This incredible creation by HID Global offers omnidirectional reading performance that is not limited by the material in which the tag is installed, allowing for reading distances of up to 7 meters.

Download datasheet double_arrow

Product description Tag RFID HID EXO Pro InLine

These EXO Pro InLine tags are equipped with the powerful Impinj M730 chip, which provides a 96-bit EPC memory and a 32-bit user memory, as well as the Monza 4QT (pro weld) option with a 128-bit EP memory, a 96-bit TID memory, and a 512-bit user memory. They operate at frequencies of 860-960 MHz (worldwide), ensuring excellent performance.

Manufactured with durable ABS and certified with IP68, these tags easily withstand the presence of water and dust, making them the ideal choice for challenging industrial environments. Additionally, they have a lightweight design, weighing only 10 grams, and compact dimensions of 97 × 27 × 15 mm in the basic version and 105 × 35 × 15 mm in the Pro weld version. These tags are capable of operating efficiently over a wide temperature range, ranging from -40°C to +85°C.

Product Codes:

6M6980-402

6M6981-402 (Pro weld version)

UHF

DIN 40050-9, ISO 17364, ISO 18000-6C, EPC Class 1 Gen 2

Hard Tags

Impinj Monza M730, Impinj Monza 4QT

-40 °C to 85 °C / -40 °F to 185 °F

IP68

All Surfaces

128 bits

UHF FCC 902-928 MHz, UHF ETSI 865-868 MHz

Hard Plastic

97mm × 27mm × 15mm

3.82in × 1.06in × 0.59in

You may also be interested in

RFID Tag HID EXO Keg R6P-Slix2

The HID EXO Keg tags, in their R6P-Slix2 version, feature two chips. The first one, with UHF frequency, is the Impinj Monza R6P, which operates at UHF frequency 860 to 960 MHz, with 128 bits of EPC memory and 96 bits of TID memory. The second chip is the ICODE Slix2, operating at HF frequency 13.56 MHz with 2,560 bits of user memory. They have dimensions of 88 x 37 x 15 mm and weigh only 20 grams. They are constructed with polyamide. They are IP68 certified and have an operating temperature range of -40°C to +85°C. Product Code: 6K7982-102

See more double_arrow

RFID Tag HID EXO Keg R6

The HID EXO Keg tags, in their R6 version, incorporate the Impinj Monza R6 chip, which operates in the UHF frequency range (860 to 960 MHz). This chip has a 96-bit EPC memory capacity and a 96-bit TID memory. These tags have compact dimensions of 52 x 26,5 x 21,4 mm and a lightweight of only 20 grams. They are constructed with high-quality polyamide to ensure durability and resistance. Additionally, they are IP68 certified, making them completely waterproof and suitable for use in demanding environments. The operating temperature range of these tags is wide, ranging from -40°C to +85°C, making them suitable for various applications. Product Code: 6F1988-102

See more double_arrow

RFID Tag HID EXO Keg M730

The HID EXO Keg tags in their M730 version incorporate the Impinj Monza M730 chip, designed to operate in the UHF frequency range (860 to 960 MHz). This chip offers a 128-bit EPC memory capacity and a 96-bit TID memory. These tags are characterized by their compact design, with dimensions of 88 x 37 x 15 mm, and a lightweight of only 20 grams. They have been manufactured with high-quality polyamide, ensuring exceptional durability and resistance. Additionally, they are certified IP68, making them completely waterproof and suitable for use in demanding environments. These tags have been designed to operate in a wide temperature range, from -40°C to +85°C, making them suitable for a wide variety of applications. Product code: 6M6982-102

See more double_arrow

RFID Tag HID EXO Slim 600 Shell+

The Exo Slim 600 Shell+ operates in the UHF frequency range of 865-868 MHz (ETSI) and 902-928 MHz (FCC), incorporating the Impinj Monza R6-P chip. Its screw attachment method allows it to be secured to wood, metal, and plastic, making it versatile for various situations. It has dimensions of 86 x 20 x 7.3 mm and weighs 6.7 grams. It is constructed with polycarbonate, enabling it to operate in temperatures ranging from 40° to +85° C. Product Codes: CP14519 (EU) CP14522 (US)

See more double_arrow

RFID Tag HID EXO Slim 1000 Shell+

The EXO Slim 1000 Shell+ labels operate in the UHF frequency range of 865-868 MHz (ETSI) and 902-928 MHz (FCC) and incorporate the NXP UCODE 8 chip. Their screw mounting system allows them to be attached to wood, metal, and plastic, making them versatile for different contexts. They have dimensions of 89 x 28 x 8.3 mm and weigh 6.7 grams, and are made of polycarbonate, allowing them to function in temperatures ranging from 40°C to +85°C. Product Codes: CP14531 (EU) CP14534 (US)

See more double_arrow

RFID Tag HID EXO Slim 1200 Shell+

The EXO Slim 1200 Shell+ has been designed to operate in the UHF Global 860-960 frequencies and incorporates the advanced NXP UCODE 8 chip for precise identification and efficient wireless communication. They are lightweight, waterproof, and dustproof, ensuring performance even in the most challenging environments. Additionally, they come with an IP68 protection rating, implying superior resistance to water and dust. Their compact dimensions of 123 x 33 x 6.8 mm and lightweight of 20 grams facilitate installation and they are capable of functioning in a wide range of temperatures, from -40°C to +85°C, providing reliability and efficiency in the most demanding conditions. Product code: CP14543

See more double_arrow

RFID Tag HID EXO Slim 750P

The EXO Slim750P operates on the UHF Global 860-960 MHz frequencies and integrates the Impinj M730 chip. Their screw attachment system allows them to be attached to wood, metal, and plastic, enabling their use in various circumstances. They have dimensions of 86 x 24 x 3 mm and weigh 6.7 grams, with a polycarbonate construction that enables them to function in temperatures ranging from -30° to +65° C. Product Code: CP16374

See more double_arrow

Tag RFID HID EXO Slim 800P

The EXO Slim 800P operate in the UHF Global frequency range of 860-960 MHz and are equipped with the Impinj M730 chip with 128 bits of user memory and 48 bits of TID memory. Their screw fixation system allows them to be placed on wood, metal, and plastic, making them versatile for a wide range of situations. They have dimensions of 105 x 68 x 3.7 mm and weigh only 11.6 grams, made of polycarbonate, and can operate in temperatures ranging from -20°C to +85°C. Product codes: CP15940

See more double_arrow

RFID Tag HID EXO Slim InLine Plate Combo

The Exo Slim InLine Plate operates in the UHF Global 860-960 frequency band and integrates the NXP EM4423 chip with a storage capacity of 1920 bits. Its screw fixation system facilitates mounting on wood, metal, and plastic, allowing them to adapt to a wide range of situations. With dimensions of 120 × 68 × 3.7 mm and a weight of 27 grams, these polycarbonate tags can operate in a temperature range from -40°C to +85°C. Product codes: 6H698C

See more double_arrow

RFID Tag HID EXO Slim InLine Plate

The EXO Slim InLine operates in the UHF frequency range of 865-868 MHz (ETSI) and 902-928 MHz (FCC) and integrates the Impinj Monza 4E chip with 496 bits of EPC memory, 96 bits of TID memory, and 128 bits of user memory. Their screw mounting method allows for installation on wood, metal, and plastic, making them versatile for various situations. They have dimensions of 120 × 68 × 3.7 mm and weigh 27 grams, constructed with polycarbonate that enables them to operate in temperatures ranging from -40°C to +85°C. Product Codes: 6C698A (EU) 6C698B (US)

See more double_arrow

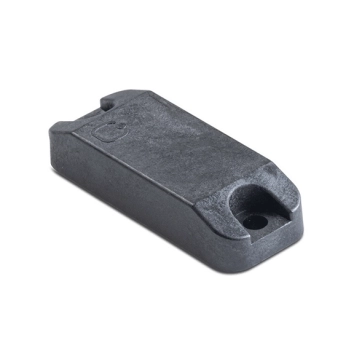

RFID Tag HID EXO Pro 400HT

The EXO Pro 400HT tags can operate in frequencies ranging from 860 to 960 MHz. They come with the Impinj Monza R6-P chip, which offers 96 bits of EPC memory and 64 bits of user memory. They are made of thermoplastic and have an IP68 certification, allowing them to be used without issues in industrial environments with water and dust presence. Their dimensions are 37.0 × 14.0 × 7.5 mm with a weight of only 5.7 grams. The optimal operating temperature ranges from -40°C to +85°C. All EXO Pro tags comply with globally certified EPC UHF Class 1 Gen 2 readers and modules. Product codes: CP16451 (EU) CP16453 (US)

See more double_arrow

RFID Tag HID EXO Pro 600

The EXO Pro 600 tags are equipped with the Impinj Monza 4QT chip, which offers 128 bits of EPC memory and 64 bits of user memory. They operate in frequencies ranging from 860 to 960 MHz, delivering excellent performance. Manufactured in durable ABS with an IP68 certification, these tags easily withstand water and dust, making them ideal for use in industrial environments. They have a lightweight of 12.5 grams and compact dimensions of 51 x 48 x 12.6 mm. They can efficiently operate in a temperature range from -40°C to +85°C. Product code: CP08785

See more double_arrow

Tag RFID HID EXO Pro 750

The EXO Pro 750 tags have been equipped with the Impinj Monza 4QT chip, which offers a 128-bit EPC memory and a 64-bit user memory. They operate on frequencies ranging from 860 to 960 MHz, providing excellent performance in all situations. These tags are made with durable ABS material and have an IP68 certification, making them resistant to water and dust, ideal for use in industrial environments. In addition, their lightweight of 25.6 grams and compact dimensions of 51 x 48 x 12.6 mm make them highly convenient. They can operate efficiently over a wide temperature range, from -40°C to +85°C. Product Code: CP08726

See more double_arrow

RFID Tag HID EXO Pro 800

These EXO Pro 800 tags are equipped with the Impinj Monza 4QT chip, which offers a 128-bit EPC memory and a 64-bit user memory. Their operation is based on frequencies from 860 to 960 MHz, ensuring excellent performance in their performance. Manufactured in durable ABS and certified with IP68, these tags can withstand water and dust exposure without any issues, making them the ideal choice for industrial environments. In addition, their lightweight of 26 grams and compact dimensions of 110 x 25 x 12.85 mm ensure easy installation and use. These tags can operate efficiently over a wide temperature range, from -40°C to +85°C. Product code: CP08725

See more double_arrow

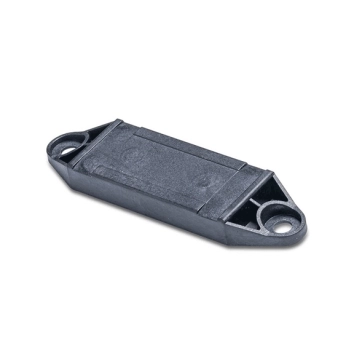

RFID Tag HID EXO Pro Midrange

The EXO Pro Midrange tags are equipped with the powerful Impinj M750 chip, providing 96 bits of EPC memory and 32 bits of user memory. They operate on frequencies of 865-868 MHz (ETSI) / 902-928 MHz (FCC), ensuring excellent performance at all times. Manufactured with durable Ryton PPS and certified with IP69K, these tags effortlessly withstand water and dust presence, making them the ideal choice for demanding industrial environments. With a lightweight of 10 grams and compact dimensions of 63.5 × 17.5 × 6.4 mm, these tags are highly efficient in a temperature range spanning from -40°C to +85°C. Product Code: AST1-174-3310 (EU) AST1-174-3300 (US)

See more double_arrow
