Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.
RFID Tag Confidex Links NFC
The Confidex Links tag utilizes NFC technology and operates at a frequency of 13.56 MHz. It has been designed for use in various sectors, with a primary focus on the retail industry. It is specifically designed for the individual product identification, allowing customers to choose the encoding of the tags and the visibility of the labels, thereby enhancing brand visibility and customer loyalty.
This product is highly versatile and can be applied to a wide range of surfaces, including wood, fabric, cardboard, plastic, and various non-metallic surfaces. It is equipped with the NTAG213 chip, enabling tag reading at a distance of up to 30 mm with a mobile phone and up to 55 mm with a fixed reader.
This square tag measures 25 x 25 x 0.2 mm. It operates smoothly in extreme temperatures and has a wide temperature range, from -35°C to +85°C. Furthermore, the tag has demonstrated its ability to withstand exposures to different environments and chemical substances. It has undergone tests, including immersion in 10% salinity saltwater for 168 hours, exposure to 10% sulfuric acid with a pH of 2 for the same duration, contact with motor oil for 168 hours, exposure to a 10% NaOH alkaline solution with a pH of 13 for 2 hours, and finally, exposure to acetone for 2 hours.
The Links L features a square configuration with dimensions of 40 x 35 mm. The top surface of the chip is white, designed for printing. The adhesive is located on the bottom of the chip on a silicone paper backing.
This product strictly complies with the international ISO 14443A standard, ensuring that this label meets the highest standards of safety and efficiency set by the industry.
Product Code:
Confidex Links L NTAG213: 3001252
This square tag has dimensions of 25 x 25 x 0.45 mm and weighs less than 1 gram. It operates smoothly within a wide temperature range, from -35°C to +85°C. Moreover, it is water-resistant and can be submerged to a depth of 1 meter for up to 5 consecutive hours.
This product is versatile and can be applied to various surfaces, including metals. It is equipped with the NTAG213 chip, allowing the tag to be read from a distance of 15 mm with a mobile phone and up to 20 mm with a fixed reader.
Product Code:
Confidex LinksTM NTAG213 on‐metal: 3001957
This device uses a 13,56 MHz NFC frequency band and is available in the White Wet Inlay format. It has a reading range of up to 43 mm, although this may vary depending on the environment and usage. Its structure is circular with antenna dimensions of 35 mm.
These tags comply with the ISO 9001:2008 quality management and ISO 14001:2004 environmental management standards. This ensures a high level of reliability and optimal performance at all times.
Product code:
White Wet Inlay: 3006704 / IL-603183
This article is a circular tag with dimensions of 35 mm and operates on the 13.56 MHz NFC frequency band. It works smoothly in a temperature range of -25 °C to 70 °C and can be used on surfaces such as wood, plastic, and other non-metallic materials.
This tag complies with the international requirements of ISO 9001:2008 for quality management and ISO 14001:2004 for environmental management, guaranteeing high performance and quality at all times.
Furthermore, we offer other similar products in the same category with different features.
Product Code:
Wet Inlay: 3002649 / IL-602752
The white pvc NFC cards have a frequency of 13.56mhz. They have a data retention of up to 10 years with a total memory of 114 bytes and are serialized with a unique UID from the factory that cannot be modified. They support up to 100,000 write cycles. Cards can be configured to add password protection so that data on the card cannot be changed.
NFC ntag 213 cards are compatible with all NFC smartphones, tablets and NFC readers.
Optional:
1-2 sided black printing
1-2 sided color printing
Offset printing
Variable printing: Text, images, qr codes, barcodes, progressive numbers, etc.
Coding service

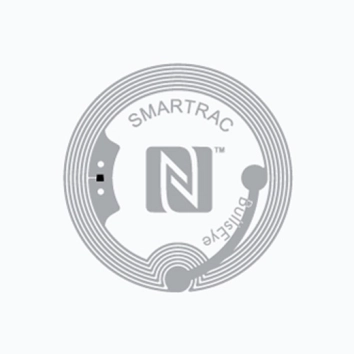

The circular antenna has a diameter of 35 mm and operates at a frequency of 13.56 MHz for NFC. Additionally, it is only available in Wet Inlay format, which facilitates the adhesion of the tag to various non-metallic surfaces such as wood, glass, paper, cardboard, plastic, and more.
This product strictly complies with the international standard ISO 14443A, ensuring that this tag meets the highest levels of security and efficiency established by the industry.
Product Code:
Wet Inlay: 3002649 / IL-602752 (NXP NTAG216)
Wet Inlay: 3002646 / IL-602750 (NXP NTAG213)
RFID near-field antennas are antennas prepared to act near the product at both the point of sale and on production lines. They are fast and efficient in dense liquid and product environments. In this type of antenna there are no blind spots; everything within the antenna surface is detected and it reacts well to metal objects.
