RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

NFC Tag Confidex Links L

The NFC tag Links L by Confidex has been designed for use in non-metallic applications, such as smart posters, advertising, and device control, among others. This product is particularly suitable for use in stickers, posters, marketing strategies, brand visibility enhancement, and various similar applications, thanks to its individual product authentication functionality.

It incorporates the NXP NTAG213 chip, which offers a 144-bit user memory capacity. Furthermore, each tag can be uniquely identified without requiring users to input variable numbers.

It can be applied to a wide range of surfaces, including wood, plastic, glass, cardboard, paper, and various non-metallic products. It has the ability to be read at a distance of 90 mm with a fixed reader and 45 mm with a mobile phone.

Download datasheet double_arrow

Product description NFC Tag Confidex Links L

The Links L features a square configuration with dimensions of 40 x 35 mm. The top surface of the chip is white, designed for printing. The adhesive is located on the bottom of the chip on a silicone paper backing.

This product strictly complies with the international ISO 14443A standard, ensuring that this label meets the highest standards of safety and efficiency set by the industry.

Product Code:

Confidex Links L NTAG213: 3001252

NFC

-20 °C to 60 °C / -4 °F to 140 °F

Glass, Wood, Plastic, Non Metal

Inlays and Tags

NXP NTAG213

Label / Sticker

NFC 13,56 MHz

ISO/IEC 14443A

40mm × 35mm

1.57in × 1.38in

You may also be interested in

RFID Tag Confidex Links NFC

This square tag measures 25 x 25 x 0.2 mm. It operates smoothly in extreme temperatures and has a wide temperature range, from -35°C to +85°C. Furthermore, the tag has demonstrated its ability to withstand exposures to different environments and chemical substances. It has undergone tests, including immersion in 10% salinity saltwater for 168 hours, exposure to 10% sulfuric acid with a pH of 2 for the same duration, contact with motor oil for 168 hours, exposure to a 10% NaOH alkaline solution with a pH of 13 for 2 hours, and finally, exposure to acetone for 2 hours. Product Code: Confidex Links NFC NTAG213: 3001795

See more double_arrow

NFC Tag Confidex Links On-metal

This square tag has dimensions of 25 x 25 x 0.45 mm and weighs less than 1 gram. It operates smoothly within a wide temperature range, from -35°C to +85°C. Moreover, it is water-resistant and can be submerged to a depth of 1 meter for up to 5 consecutive hours. This product is versatile and can be applied to various surfaces, including metals. It is equipped with the NTAG213 chip, allowing the tag to be read from a distance of 15 mm with a mobile phone and up to 20 mm with a fixed reader. Product Code: Confidex LinksTM NTAG213 on‐metal: 3001957

See more double_arrow

NFC Tag Smartrac Bullseye NXP NTAG 213

The circular antenna has a diameter of 35 mm and operates at a frequency of 13.56 MHz for NFC. Additionally, it is only available in Wet Inlay format, which facilitates the adhesion of the tag to various non-metallic surfaces such as wood, glass, paper, cardboard, plastic, and more. This product strictly complies with the international standard ISO 14443A, ensuring that this tag meets the highest levels of security and efficiency established by the industry. Product Code: Wet Inlay: 3002649 / IL-602752 (NXP NTAG216) Wet Inlay: 3002646 / IL-602750 (NXP NTAG213)

See more double_arrow

NFC Tag Smartrac Circus NXP NTAG 213

The article features a circular shape with a 20 mm diameter antenna. It is exclusively available in Wet Inlay format and comes in three different chip types. It has the capability to be applied on various non-metallic surfaces, such as paper, cardboard, glass, wood, plastic, among others. This product strictly complies with the international standards of ISO 14443A, ensuring that this tag meets the highest levels of security and efficiency set by the industry. Product Code: Wet Inlay: 3006535 / IL-603118 (NXP NTAG210 Micro) Wet Inlay: 3002981 / IL-602761, 3007321 / IL-603573 (NXP NTAG213) Wet Inlay: 3004473 / IL-602829 (NXP NTAG216)

See more double_arrow

NFC Tag Smartrac Midas NXP NTAG 213

This tag is characterized by its small and compact size, with a rectangular shape and antenna dimensions of 10 x 17 mm. Additionally, it is available in Wet Inlay and Dry Inlay formats, allowing it to be applied to a wide variety of surfaces, such as wood, paper, glass, plastic, and various non-metallic materials. This product strictly complies with the international standards of ISO 14443A, ensuring that this tag meets the highest levels of industry security and efficiency. Product Code: Wet Inlay: 3002647 / IL-602751 Dry Inlay: 3003265 / IL-602800

See more double_arrow

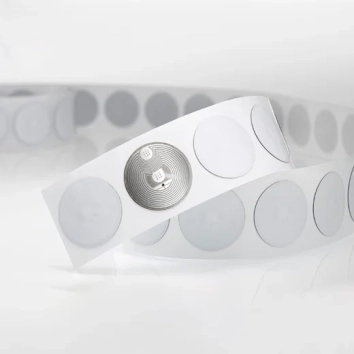

NFC Tag Metal Smartrac Circus NXP NTAG 213

NFC Tag On Metal Smartrac Circus NXP NTAG 213

SMARTRAC’s new NFC CIRCUSTM ON-METAL tags have been specifically designed to work on metallic objects. They open the door to all applications involving the tagging of metal surfaces that need to be identified or interacted with, such as metallic parts, tools, machines, spare parts and even domestic items. Is equipped with the NXP NTAG213 IC.

See more double_arrow

Portable RFID Readers

Portable RFID readers can be used in multiple applications. The RFID antenna can be part of the device or can be added and connected via Bluetooth. They can communicate or work in different ways: with Windows Mobile, Windows Embedded, for iPhone or Android. They have Wi-Fi and 3G connections. Most of them include a barcode.

See more double_arrow
