RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

RFID Tag Avery Dennison Impinj Monza 237r6 P

The Avery Dennison Impinj Monza 237r6 P RFID Tags are high-performance UHF Gen 2 RFID products. They are designed to be used in the textile and industrial sectors, for applications in the supply chain, inventory management, logistics, and garment industry.

These tags feature the Impinj Monza R6-P chip, which is available with both EPC and user memory. On the other hand, the AD-237r6 tag, which belongs to the same range, only has EPC memory available.

The excellent performance it offers allows for a greater number of reads and writes compared to other tags in its competition. Additionally, it is available in Dry Inlay, Wet Inlay, and Label/Sticker formats.

Download datasheet double_arrow

Product description RFID Tag Avery Dennison Impinj Monza 237r6 P

The rectangular shape and composition give it dimensions of 70 x 14.5 mm. The UHF frequency range of 860 - 960 MHz and the versatility to be applied on different surfaces such as wood, glass, plastic... allow it to be read up to 15 meters away.

This product adheres to the international standard ISO 18000-63 Type C, meeting the most demanding standards in the industrial and RFID communication systems.

Product code:

Dry Inlay: RF600770 / IL-607926

Wet Inlay: RF600771 / IL-605422

Label/Sticker: RF100343 / IL-607238

UHF

Impinj Monza R6-P

-40 °C to 85 °C / -40 °F to 185 °F

Wood, Plastic, Non Metal, Glass

Label / Sticker, Wet Inlay, Dry Inlay

ISO 18000-63 TYPE C

128 bits, 96 bits

UHF Global 860-960 MHz

76mm × 20mm

2.99in × 0.79in

You may also be interested in

Standard RFID Labels

The label adhesives are available in all ranges, from permanent to removable, allowing for a wide range of applications. Dipole manufactures Standard RFID tags with a wide variety of sizes and are ideal for thermal printers or printers with ribbon. They are customizable in all features such as EPC memory, material (paper, cardboard, polyamide, polyethylene, etc.), a variety of adhesives (permanent, removable, for liquids, etc.), or by adding an EAS system. At Dipole, we offer different delivery formats for greater convenience according to customer needs, and we ship worldwide.

See more double_arrow

RFID Printer Zebra ZD621R

The Zebra ZD621R has a 4-inch print width and features a 4.3-inch color LCD screen for interacting with its user-friendly configuration menus, which guide the user step by step during material loading and calibration. It has a print resolution of 203 dpi or 300 dpi (optional), and it operates on the Link-OS operating system. It supports identifiers compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63, and RAIN RFID protocols. It has compact dimensions of only 26.7 cm x 20.2 cm x 19.2 cm, making it a portable printer with its long-lasting battery. It weighs 2.5 kg. Product codes: ZD6A142-30EFR2EZ ZD6A142-31EFR2EZ ZD6A143-30EFR2EZ ZD6A143-30ELR2EZ

See more double_arrow

RFID Printer Zebra ZD621

The Zebra ZD621 has a print width of 4 inches and has a 4.3-inch color LCD screen to interact with its simple configuration menus where it guides the user step by step during the loading of material. It has a print resolution of 203 dpi or 300 dpi (optional), and the operating system with which it works is Link-Os. The Healthcare version of the ZD621 is the only one available with direct thermal printing version. It has tight dimensions of just 26.7 cm x 20.2 cm x 19.2 cm that allow it to be turned into a portable printer with its long-lasting battery. Its weight is 2.5 kg.

See more double_arrow

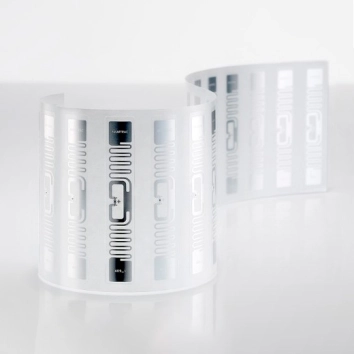

RFID tag Smartrac Belt Impinj Monza R6P

This product is available in Dry Inlay, Wet Inlay, and Label/Sticker formats, with a standard dimension of 70 x 10 mm that varies depending on the format. It operates in the UHF frequency range of 860 - 960 MHz. The tag complies with international quality and performance standards ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in complex and diverse environments. Additionally, like all Avery Dennison products, they are manufactured following the highest industry quality standards in RFID technology. Product code: Dry Inlay: 3005067 / IL-602871 Wet Inlay: 3005068 / IL-602872 (73 x 13 mm) Label/Sticker: 3005066 / IL-602870 (73 x 17 mm)

See more double_arrow

RFID Tag Smartrac Dogbone Impinj Monza R6P

The article is available in Dry Inlay, Wet Inlay, and Label/Sticker formats and can be applied to surfaces such as wood, glass, different plastics, and non-metallic materials. It operates in the UHF frequency range of 860 - 960 MHz and has a rectangular design with dimensions of 94 x 24 mm. This product complies with the international standard ISO 18000-63, EPC Class 1 Gen 2, meeting the most demanding standards in the industrial and communication fields with RFID systems. Product Code: Dry Inlay: 3005071 / IL-602874 Wet Inlay: 3005072 / IL-602875 Label/Sticker: 3005073 / IL-602876

See more double_arrow

RFID and NFC Label Printing and Encoding

Customization of tags We can customize and encode tags with the data you request. Print and encode a barcode. Print images, QR or other necessary data. Encrypt information How can we encode in rfid tags? Data from 96 bits up to 496 bits: encode the EPC Decimal or Hexadecimal format. Encrypt tags with passwords in their corresponding memory, Other types upon request How can we customize in NFC tags? Web pages or URL Texts or ID numbers Contact Information Other types of information

See more double_arrow
