Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.
RFID Tag Avery Dennison AD-161 Impinj Monza R6
The RFID tags AD-161 by Avery Dennison have been designed to excellently label items related to home, hygiene, pharmaceuticals, etc. Their elongated and rectangular shape provides a malleable use for applications oriented towards retail, granting highly efficient management in inventories, supply chains, and warehouses.
This tag is distinguished by the Impinj Monza® R6 integrated circuit (IC), providing high performance on glass and different types of plastics. Furthermore, the chip comes with a 96-bit EPC memory and 96 bits of TID.
Product description RFID Tag Avery Dennison AD-161 Impinj Monza R6
The measurements of this product are 95 x 4 mm and it operates perfectly within temperatures ranging from -40 °C to 85 °C. The UHF frequency range of the tag is between 860 - 960 MHz, with a reading capacity of up to 18 meters.
The tag is available in Dry Inlay and Wet Inlay formats. It has the ability to operate smoothly within temperatures ranging from -40 °C to 85 °C.
All Avery Dennison products meet the most demanding quality standards for the industry sector: ISO 18000-63 Type C, which specifies the parameters that RFID devices must comply with.
These tags or inlays have a size of 22 x 15 mm / 0.90 x 0.60 in, operate at a UHF frequency of 860 - 960 MHz, and are available in Dry and Wet formats. This product functions optimally in temperatures ranging from -40 °C to 85 °C.
All Avery Dennison products adhere to the highest quality standards for the industry: ISO 18000-63 Type C, which specifies the parameters that RFID devices must comply with.
Product Codes:
Dry inlay: RF601450
Wet inlay: RF601451
The Avery Dennison AD-160-u7 operates in the Global UHF frequency range of 860 - 960 MHz and, along with its antenna design, provides a reading range of up to 14.5 meters. They have a size of 64 mm x 6 mm.
They feature the NXP UCODE 7 chip, which provides a 128-bit EPC memory and a unique 96-bit serialized TID. Furthermore, they are available in different delivery formats: Dry inlay, Wet inlay, and Label/sticker.
Like all Avery Dennison RFID products, the AD-160u7 tags are manufactured to the highest industry quality standards and comply with ISO 18000-63 Type C.
Product Code:
Dry inlay: RF600529 / IL-608347
Wet inlay: RF601078 / IL-606682
Label/sticker: RF100286 / IL-606340
The Impinj R420 has 4 ports for antennas with the capacity to manage up to 32 reading zones, a maximum transmission power of 32.5 dBm and has the option of incorporating a GPIO. With this reader we achieve a reading rate of up to 1,100 readings per second.
It has the ISO 18000 63 protocol and global EPC Gen 2 v2 and the maximum benefits of a brand like Impinj, leader in the sector and with many years of experience.
Product code:
Speedway R420 4-port (ETSI): IPJ-REV-R420-EU12M1
Speedway R420 4-port (FCC): IPJ-REV-R420-USA2M1
Speedway R420 4-port (Japan): IPJ-REV-R420-JP22M1
Speedway R420 4-port (GX1): IPJ-REV-R420-GX12M1
Speedway R420 4-port (GX2): IPJ-REV-R420-GX22M1
Speedway R420 4-port (GX3): IPJ-REV-R420-GX32M1
The Dogbone UCODE G2iL operates in the UHF Global frequency band of 860-960 MHz and has dimensions of 97 x 27 mm. Its robust and durable design allows it to function in demanding environments and adhere to difficult-to-label surfaces such as wood or glass.
The tag complies with international standards of quality and performance ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in complex environments. Additionally, like all NXP RFID products, it is manufactured following the highest industry quality standards.
The Dogbone UCODE G2iL is available in different configurations, offering a wide range of options to suit the specific needs of each business.
Product Code:
Wet Inlay: 3002037 / IL-602611
Label/Sticker: 3002038 / IL-602612

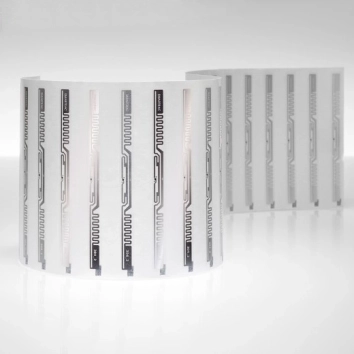

The RFID UHF Avery Dennison Smartrac Viper Impinj Monza 4D tags use a UHF frequency band of 860 to 960 MHz and comply with ISO Quality Management and ISO Environmental Management standards, ensuring a reliable and cutting-edge product that meets various application needs, improving the use of RFID on challenging materials. Additionally, they also comply with the ISO 18000-63, EPC Class 1 Gen.2 standard.
They have a wide operating temperature range, from -40 °C to 85 °C / -40 °F to 185 °F. They comply with the EU RoHS Directive 2011/65/EC and the EU REACH Directive No. 1907/2006, ensuring their safety and sustainability.
Product Code:
Dry Inlay: 3002152 / IL-602644
Wet Inlay: 3002153 / IL-602645
The Zebra RFD40 reader has a read rate of 1300/second, which is 30% higher than its main competitors. The trigger has three different functions such as RFID reading, barcode scanning and a third one that can be configured by the user. It is a rugged product with a drop test of up to 1.5 meters and an IP54 sealing to protect against dust and water conditions, as well as an optimal operating temperature of -10°C to 50°C / 14°F to 122°F.
It has a 7,000 mAh battery, dimensions of 15.1 cm x 8.4 cm x 16.65 cm and a weight of 521g.
Zebra's RFD40 sled is the next generation model to replace the RFD2000.
Product code:
RFD4030-G00B700-WR
RFD4030-G00B700-US
RFD4030-G00B700-TN
RFD4030-G00B700-TH
RFD4030-G00B700-SL
RFD4030-G00B700-JP
RFD4030-G00B700-IN
RFD4030-G00B700-IL
RFD4030-G00B700-E8
This product operates in a frequency range of 860 to 960 MHz. It has dimensions of 13.3 x 7 x 1.9 cm and weighs 0.114 kg. The antenna has an IP41 protection rating, ensuring protection against the entry of small particles, as well as possible spills, accidental splashes, or drips that could damage the device's components.
It operates smoothly in a temperature range from 0 °C to 40 °C.
Product Code:
IPJ-A0303-000
The AN650 Ground RFID Antenna is great for tracking RFID tags traveling through doors and other chokepoints. The ultra-low profile design means it fits in seamlessly in nearly any environment and provides the ability to be hidden under a mat or other covering. This antenna is just 8 mm thin and can withstand payloads of over 440 lbs. making it great for use cases such as conference/trade show attendee tracking, employee/people tracking, loyalty marketing, and race timing.
Product code:
ETSI: AN650-FCL71324EU
Dipole's priority has been that the customer can have the most important information about their business at a glance and in real time, with a very intuitive and visual Dashboard. In addition, our software allows you to easily configure all the antennas and readers to adjust the RFID readings as needed.
Some of the benefits of Lama software:
Identification of products throughout the process
Real-time data updates
Easy management of RFID records
Easy hardware configuration
Configuration of alerts according to customer KPIs
Full integration with any type of ERP
Possibility of downloading and saving all the information generated in the way that best suits the client.
If you want to know more about Dipole's RFID Lama software, please contact us and we will explain much more.
