RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

RFID Tag Avery Dennison AD-160u7

The AD-160u7 tag from Avery Dennison is a solution with excellent performance for product identification in sectors such as retail clothing and cosmetics, and it can be inserted into materials such as plastic, glass, cardboard...

The rectangular shape of these tags further increases their versatility in retail-oriented applications. Their use enhances inventory accuracy, improves supply chain agility, and enhances visibility across all sales channels.

The excellent performance offered by this tag allows for a higher number of reads and writes compared to other competing tags.

Download datasheet double_arrow

Product description RFID Tag Avery Dennison AD-160u7

The Avery Dennison AD-160-u7 operates in the Global UHF frequency range of 860 - 960 MHz and, along with its antenna design, provides a reading range of up to 14.5 meters. They have a size of 64 mm x 6 mm.

They feature the NXP UCODE 7 chip, which provides a 128-bit EPC memory and a unique 96-bit serialized TID. Furthermore, they are available in different delivery formats: Dry inlay, Wet inlay, and Label/sticker.

Like all Avery Dennison RFID products, the AD-160u7 tags are manufactured to the highest industry quality standards and comply with ISO 18000-63 Type C.

Product Code:

Dry inlay: RF600529 / IL-608347

Wet inlay: RF601078 / IL-606682

Label/sticker: RF100286 / IL-606340

UHF

Inlays and Tags

NXP UCODE 7

-40 °C to 85 °C / -40 °F to 185 °F

Wood, Plastic, Non Metal, Glass

Label / Sticker, Wet Inlay, Dry Inlay

ISO 18000-63 TYPE C

128 bits

UHF Global 860-960 MHz

64mm × 6mm

2.52in × 0.24in

You may also be interested in

RFID UHF Reader R700 Impinj

Impinj's R700 reader features 4 antenna ports and can handle up to 32 read zones, built-in GPIO, a 1Ghz dual-core processor speed, and is the only reader with up to Gigabit Ethernet connectivity. It has the ISO 18000 63 protocol and global EPC Gen 2 v2 and the maximum benefits of a brand like Impinj, leader in the sector and with many years of experience. Product code: Impinj R700 (ETSI), 865-868 MHz, 915 - 921 MHz: IPJ-R700-241 Impinj R700 (FCC, GX), 902 - 928 MHz: IPJ-R700-341 Impinj R700 (Japón), 916,7 - 920,9 MHz: IPJ-R700-441

See more double_arrow

Universal Laird S8658 RFID Antenna

This device boasts a robust IP54 rating, signifying its resistance to water and its ability to operate in the rain, under dripping conditions, and when subjected to splashes. Additionally, it is sealed in such a way that it can withstand the presence of solid materials larger than 1 mm and prevent dust accumulation. The antenna has a square shape with dimensions of 259 x 259 x 34 mm and weighs 1.13 kg. Product Codes: S8658PR, S8658PL, S8658WPR, and S8658WPL

See more double_arrow

RFID and NFC Label Printing and Encoding

Customization of tags We can customize and encode tags with the data you request. Print and encode a barcode. Print images, QR or other necessary data. Encrypt information How can we encode in rfid tags? Data from 96 bits up to 496 bits: encode the EPC Decimal or Hexadecimal format. Encrypt tags with passwords in their corresponding memory, Other types upon request How can we customize in NFC tags? Web pages or URL Texts or ID numbers Contact Information Other types of information

See more double_arrow

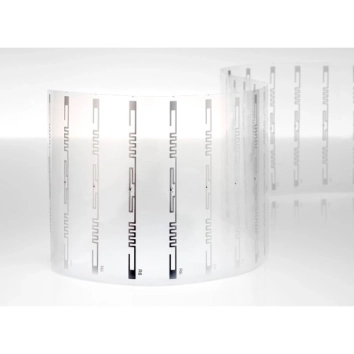

RFID Tag Avery Dennison AD-161 Impinj Monza R6
