Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.
NFC Tag Confidex Viking Classic
Confidex Viking tags are ideal for industrial asset identification and location operations. Additionally, they have optional sensors to capture environmental data. It is a versatile and flexible solution that leverages the Eddystone frame format, an open standard, as well as the iBeacon protocol. This device is compatible with a wide range of low-energy Bluetooth devices, making it suitable for various applications.
They come with pre-configured standard parameters, but can also be factory-customized to meet each customer's specific requirements and work with third-party systems. Furthermore, Confidex Viking can be customized with labels for easier field identification.
Product description NFC Tag Confidex Viking Classic
The Viking is a device that weighs 45 grams and has dimensions of 56 x 55 x 19 mm. It comes protected by a high-quality capsule and has an IP68 protection rating. This means it is fully protected against dust and small solid particles and offers high water resistance, allowing it to be submerged to a depth of up to 1 meter for a period of up to 5 hours.
This square tag measures 25 x 25 x 0.2 mm. It operates smoothly in extreme temperatures and has a wide temperature range, from -35°C to +85°C. Furthermore, the tag has demonstrated its ability to withstand exposures to different environments and chemical substances. It has undergone tests, including immersion in 10% salinity saltwater for 168 hours, exposure to 10% sulfuric acid with a pH of 2 for the same duration, contact with motor oil for 168 hours, exposure to a 10% NaOH alkaline solution with a pH of 13 for 2 hours, and finally, exposure to acetone for 2 hours.
Product Code:
Confidex Links NFC NTAG213: 3001795
The Links L features a square configuration with dimensions of 40 x 35 mm. The top surface of the chip is white, designed for printing. The adhesive is located on the bottom of the chip on a silicone paper backing.
This product strictly complies with the international ISO 14443A standard, ensuring that this label meets the highest standards of safety and efficiency set by the industry.
Product Code:
Confidex Links L NTAG213: 3001252
The Steelwave Micro II boasts an IP67 protection rating, signifying complete resistance to dust and tiny particles. It also exhibits resilience against splashes, rain, and dripping, and can even be submerged underwater.
Weighing 2 grams, it features a rectangular structure with dimensions of 38 x 13 x 4.5 mm. It has the ability to function smoothly within a temperature range from -20 °C to +70 °C.
Product Codes:
Confidex Steelwave Micro II M4QT: 3000587
Confidex Steelwave Micro II M4E: 3000619

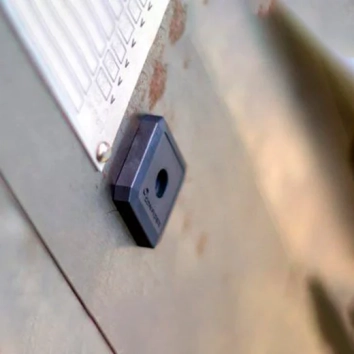

The Ironside Micro offers exceptional environmental resistance, with an operating temperature range of -35 °C to +85 °C and an IP68 rating, making it resistant to water and dust. It is also resistant to various chemicals, such as motor oil, saltwater, or sulfuric acid. The expected lifespan of this robust NFC tag is several years under normal operating conditions.
It is made of high-quality plastics, weighs 4,3 g, and has dimensions of 27 x 27 x 5,5 mm.
Product code:
Confidex Ironside Micro NFC: 3001300
This square tag has dimensions of 25 x 25 x 0.45 mm and weighs less than 1 gram. It operates smoothly within a wide temperature range, from -35°C to +85°C. Moreover, it is water-resistant and can be submerged to a depth of 1 meter for up to 5 consecutive hours.
This product is versatile and can be applied to various surfaces, including metals. It is equipped with the NTAG213 chip, allowing the tag to be read from a distance of 15 mm with a mobile phone and up to 20 mm with a fixed reader.
Product Code:
Confidex LinksTM NTAG213 on‐metal: 3001957
Portable RFID readers can be used in multiple applications. The RFID antenna can be part of the device or can be added and connected via Bluetooth. They can communicate or work in different ways: with Windows Mobile, Windows Embedded, for iPhone or Android. They have Wi-Fi and 3G connections. Most of them include a barcode.
Dipole's priority has been that the customer can have the most important information about their business at a glance and in real time, with a very intuitive and visual Dashboard. In addition, our software allows you to easily configure all the antennas and readers to adjust the RFID readings as needed.
Some of the benefits of Lama software:
Identification of products throughout the process
Real-time data updates
Easy management of RFID records
Easy hardware configuration
Configuration of alerts according to customer KPIs
Full integration with any type of ERP
Possibility of downloading and saving all the information generated in the way that best suits the client.
If you want to know more about Dipole's RFID Lama software, please contact us and we will explain much more.
NFC technology is a globally accepted standard for all types of markets. NFC inlays can carry more data than a barcode, they are more secure and can be password protected, etc. NFC tags can be read with your mobile phone, which enables you to make interactions between people and objects.
