Industrial NFC & RFID Printer Sato CL4NX

The dimensions of this printer are 245 x 408 x 300 mm, and it weighs 13.7 kg. Additionally, it operates effectively in a temperature range from -5 °C to -40 °C, allowing it to be used in various circumstances. Furthermore, it provides a 25-pin I/O interface with a 14-pin converter cable included, enabling NPN/PNP connections. It also offers a wide range of connectivity options to seamlessly integrate into both current and future environments. It includes multiple standard interfaces, such as RS232C, IEEE1284, USB, and LAN, and offers additional options like IEEE 802.11 b/g/n wireless LAN connectivity and Bluetooth. Product code:

Fully integrated UHF RFID Reader / Encoder Module. Void marking of damaged or unreadable transponders, RFID data verification after programming. Multiple RFID power settings allow users to use individual transponder sizes, DIP (Direct Inlay Printing) allows use of short pitch labels. PWP allows flexible inlay positions, TID reading and printing as text and barcode. Suitable for: healthcare, transport & logistics, retail, restauranst, food industry, automotive, manufacturing. - Gen2 Memory: Expanded EPC, User Memory, TID (96bit), Access password, Kill password, Lock- Print Method: Direct Thermal / Thermal Transfer- Print Width: 167.5mm - 6.5"- Print Resolution: 203 & 305 dpi (auto switch)- Print Speed:  o 254mm or 10" per secondo 203mm or 8" per second - Screen: 3.5" full colour LCD display- Languages: 47 print & 30 display languages- Interfaces: RS232, IEEE1284, USB, LAN, Bluetooth, EXT IO- Emulations: Auto detect SZPL, SIPL, SEPL, SDPL

The label adhesives are available in all ranges, from permanent to removable, allowing for a wide range of applications. Dipole manufactures Standard RFID tags with a wide variety of sizes and are ideal for thermal printers or printers with ribbon. They are customizable in all features such as EPC memory, material (paper, cardboard, polyamide, polyethylene, etc.), a variety of adhesives (permanent, removable, for liquids, etc.), or by adding an EAS system. At Dipole, we offer different delivery formats for greater convenience according to customer needs, and we ship worldwide.

The NFC tags comply with international ISO 14443A standards and are fully compatible with standard NFC printers, enabling easy printing and encoding. At Dipole, we offer a range of custom-designed NFC tags with different sizes and materials, such as paper, PP, PE, PET, and thermal materials, ensuring comprehensive coverage for your specific needs. Additionally, these tags come with various integrated circuits to choose from, depending on the required memory capacity, providing greater flexibility and adaptability to your business. The tags are offered with a variety of adhesives, ranging from permanent to removable, to meet the variability of applications.

Dipole's Logistics labels comply with international standards ISO 18000-6C and EPC Class 1 Gen 2. They can be manufactured in various materials such as paper, polypropylene, polyethylene, thermal paper, among others. We also offer different types of adhesives, including both permanent and removable options. These tags are easily printable using any standard RFID printer available on the market. However, if preferred, customers can also utilize Dipole's printing and encoding service to receive the finished product. At Dipole, we work with multiple delivery formats for the convenience of our customers and provide shipping to any part of the world.

The article is available in Dry Inlay, Wet Inlay, and Label/Sticker formats and can be applied to surfaces such as wood, glass, different plastics, and non-metallic materials. It operates in the UHF frequency range of 860 - 960 MHz and has a rectangular design with dimensions of 94 x 24 mm. This product complies with the international standard ISO 18000-63, EPC Class 1 Gen 2, meeting the most demanding standards in the industrial and communication fields with RFID systems. Product Code: Dry Inlay: 3005071 / IL-602874 Wet Inlay: 3005072 / IL-602875 Label/Sticker: 3005073 / IL-602876

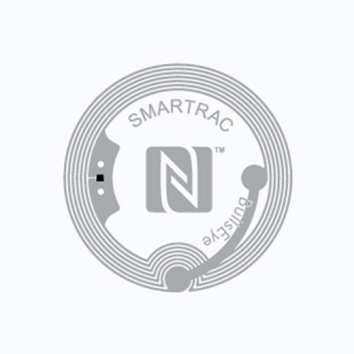

The circular antenna has a diameter of 35 mm and operates at a frequency of 13.56 MHz for NFC. Additionally, it is only available in Wet Inlay format, which facilitates the adhesion of the tag to various non-metallic surfaces such as wood, glass, paper, cardboard, plastic, and more. This product strictly complies with the international standard ISO 14443A, ensuring that this tag meets the highest levels of security and efficiency established by the industry. Product Code: Wet Inlay: 3002649 / IL-602752 (NXP NTAG216) Wet Inlay: 3002646 / IL-602750 (NXP NTAG213)

Dipole's priority has been that the customer can have the most important information about their business at a glance and in real time, with a very intuitive and visual Dashboard. In addition, our software allows you to easily configure all the antennas and readers to adjust the RFID readings as needed.  Some of the benefits of Lama software: Identification of products throughout the process Real-time data updates Easy management of RFID records Easy hardware configuration Configuration of alerts according to customer KPIs Full integration with any type of ERP Possibility of downloading and saving all the information generated in the way that best suits the client. If you want to know more about Dipole's RFID Lama software, please contact us and we will explain much more.
