RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

RFID Tag Smartrac Eagle Impinj M730

The Eagle Impinj M730 inlays from Smartrac have been designed for use in retail and logistics. Their small size and adaptability to different types of products and environments provide excellent performance for inventory and stock management.

This tag comes with the latest generation Impinj Monza M730 chip, which has 128 bits of EPC memory, 96 bits of TID memory, and a unique serial number of 48 bits.

Depending on the environment and surface where the tag is applied, it has a reading range of up to 14 meters.

Download datasheet double_arrow

Product description RFID Tag Smartrac Eagle Impinj M730

The composition of this tag allows it to have a UHF frequency range of 860 - 960 MHz. Additionally, it has dimensions of 44 x 28 mm, making it a product with a rectangular and compact structure. It is available in Dry Inlay, Wet Inlay, and Label formats.

This product meets the international standard ISO 18000-63, EPC Class 1 Gen 2, which means it complies with the most demanding standards in the industrial and RFID communication systems, and it also performs excellently in challenging environments.

Product Code:

Dry Inlay: 3008000 / IL-603995

Wet Inlay: 3007992 / IL-603988

Label: 3007993 / IL-603989

UHF

Inlays and Tags

Impinj Monza M730

-40 °C to 85 °C / -40 °F to 185 °F

Wood, Plastic, Non Metal, Glass

Label / Sticker, Wet Inlay, Dry Inlay

ISO 18000-63, EPC Class 1 Gen 2

128 bits

UHF Global 860-960 MHz

47mm × 31mm

1.85in × 1.22in

You may also be interested in

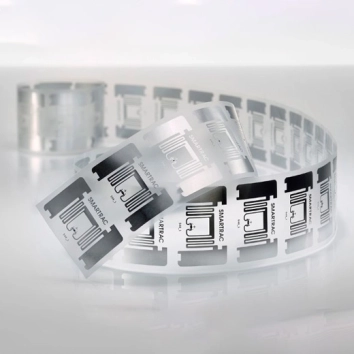

RFID Tag Smartrac Eagle NXP Ucode 8

The dimensions of this product are 44 x 28 mm, and it has a UHF frequency range of 860 - 960 MHz. Moreover, it functions smoothly on surfaces such as wood, glass, various types of plastics, and non-metallic materials. Like all RFID products from Avery Dennison, Eagle NXP Ucode 8 tags are manufactured to the highest industry quality standards and comply with ISO 18000-63 Type C. Additionally, they have EPC Class 1 Gen 2 memory, which provides high performance in complex environments. Product Code: Dry Inlay: 3007014 / IL-603372 Label/Sticker: 3007016 / IL-603373

See more double_arrow

RFID Label Dipole Hang

Product specifications include a UHF frequency (860 - 960 MHz), with Impinj/NXP IC types and an EPC memory depending on the IC family. The base material is cardboard and complies with ISO 18000-6C Class 1 Generation 2 standards. The tags can withstand temperatures ranging from -40°C to +85°C, making them resistant and durable for use in a variety of conditions and environments. At Dipole, we provide worldwide delivery service, ensuring that your RFID tags can reach any part of the world, regardless of your company's location.

See more double_arrow

RFID Label Dipole Jewelry

Dipole Jewelry's RFID labels operate at UHF frequency (860 - 960 MHz) and are available in different IC types, such as Impinj and NXP. The EEPROM memory varies depending on the IC family. Manufactured with polypropylene (PP) material, they comply with ISO 18000-6C Class 1 Generation 2 standards. The labels come with a range of adhesive options, both permanent and removable, to suit the product and customer's needs. Their dimensions are fully customizable, allowing them to be adapted to a wide variety of products. Furthermore, they can withstand extreme temperatures, ranging from -40°C to +85°C, ensuring their resilience and durability in various storage and transportation conditions.

See more double_arrow

RFID Tag Smartrac Dogbone Impinj M730

The Dogbone M730 operates in the UHF Global frequency band 860-960 and has dimensions of 97 x 27 mm. Its robust and resistant design allows it to function in demanding environments and adhere to difficult-to-label surfaces, such as wood or glass. This tag complies with international standards for quality and performance ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in complex environments. Additionally, like all RFID products from Avery Dennison, it is manufactured following the highest industry quality standards. The Dogbone M730 is available in different configurations, offering a wide range of options to suit the specific needs of each business. Product code: Dry Inlay: 3008223 / IL-604163 Wet Inlay: 3008445 / IL-604318 Label: 3008054 / IL-604042

See more double_arrow

RFID Tag Smartrac Belt NXP UCODE 9

The dimensions of the tag are 70 x 14 mm and may vary depending on the purchasing format. It is available in Dry Inlay, Wet Inlay, and Label/Sticker formats. The label complies with the international quality and performance requirements ISO 18000-63 EPC Class 1 Gen 2, ensuring proper operation in complex and changing environments. Additionally, like all NXP RFID products, it is manufactured to meet the industry's strictest quality requirements. Belt NXP UCODE 9 is available in different configurations, offering a wide range of options to suit the specific needs of each business. Product Code: Dry Inlay: 3008008 / IL-604003 Wet Inlay: 3008009 / IL-604004 (73 x 17 mm) Label/Sticker: 3008010 / IL-604005 (73 x 17 mm)

See more double_arrow

RFID Tag Smartrac Band NXP ICODE ILT-M

The Avery Dennison Smartrac Band NXP ICODE ILT-M RFID tags are designed for document and library management. They are 25 x 72mm in size and equipped with the NXP ICode ILT-M chip with 240-bit memory. Wet inaly: 3002993 Dry inaly: 3003031

See more double_arrow

RFID Handheld Reader Zebra RFD40

The Zebra RFD40 reader has a read rate of 1300/second, which is 30% higher than its main competitors. The trigger has three different functions such as RFID reading, barcode scanning and a third one that can be configured by the user. It is a rugged product with a drop test of up to 1.5 meters and an IP54 sealing to protect against dust and water conditions, as well as an optimal operating temperature of -10°C to 50°C / 14°F to 122°F. It has a 7,000 mAh battery, dimensions of 15.1 cm x 8.4 cm x 16.65 cm and a weight of 521g. Zebra's RFD40 sled is the next generation model to replace the RFD2000. Product code: RFD4030-G00B700-WR RFD4030-G00B700-US RFD4030-G00B700-TN RFD4030-G00B700-TH RFD4030-G00B700-SL RFD4030-G00B700-JP RFD4030-G00B700-IN RFD4030-G00B700-IL RFD4030-G00B700-E8

See more double_arrow

Handheld RFID Reader Zebra MC3390xR

The MC3390xR RFID reader achieves up to 900 reads per second with its integrated linearly polarized antenna and a read range of up to 18.2 meters. It is designed for use in semi-industrial environments as it has protection against falls of up to 1.5 meters in height and with IP54 protection so you don't have to worry if you work in an environment full of dust or humidity. It has integrated NFC to be able to link the reader to printers and other types of RFID products in an easy way. In addition, it has Bluetooth, WLAN and USB 2.0. Its optimum operating temperature is -20 °C to 50 °C Part numbre: Código de producto: MC339U-GE2EG4EU MC339U-GF3EG4EU MC339U-GE4EG4EU MC339U-GF2EG4EU MC339U-GF4EG4US-1SKT MC339U-GF4EG4US MC339U-GF4EG4EU MC339U-GE3EG4EU-1SKT MC339U-GE3EG4EU MC339U-GE2EG4EU-1SKT MC339U-GF4EG4EU-1SKT MC339U-GE4EA4CN-1SKT

See more double_arrow

RFID Printer Zebra ZD621R

The Zebra ZD621R has a 4-inch print width and features a 4.3-inch color LCD screen for interacting with its user-friendly configuration menus, which guide the user step by step during material loading and calibration. It has a print resolution of 203 dpi or 300 dpi (optional), and it operates on the Link-OS operating system. It supports identifiers compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63, and RAIN RFID protocols. It has compact dimensions of only 26.7 cm x 20.2 cm x 19.2 cm, making it a portable printer with its long-lasting battery. It weighs 2.5 kg. Product codes: ZD6A142-30EFR2EZ ZD6A142-31EFR2EZ ZD6A143-30EFR2EZ ZD6A143-30ELR2EZ

See more double_arrow

Mini RFID Panel Antenna S8655 PLRTN Laird Technologies

Mini RFID Panel Antenna S8655P Laird Technologies

The device features a high degree of protection, known as IP67, which means it is completely resistant to solids larger than 1 mm in size and dust. It also has water resistance that allows it to withstand splashes, rain, dripping, water jets, and can be submerged up to 1 meter deep for 30 minutes. The exceptional performance of this antenna results in a higher number of readings and writings compared to other competing devices, in addition to offering impressive resistance and durability. Product Code: S8655PR S8655PL

See more double_arrow

Universal Laird S8658 RFID Antenna

This device boasts a robust IP54 rating, signifying its resistance to water and its ability to operate in the rain, under dripping conditions, and when subjected to splashes. Additionally, it is sealed in such a way that it can withstand the presence of solid materials larger than 1 mm and prevent dust accumulation. The antenna has a square shape with dimensions of 259 x 259 x 34 mm and weighs 1.13 kg. Product Codes: S8658PR, S8658PL, S8658WPR, and S8658WPL

See more double_arrow
