RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

RFID Tag Smartrac Accessory NXP Ucode 8

The Avery Dennison Smartrac Accessory RFID tag has been designed for the identification of accessories or cosmetics. Its size and composition allow the RFID tag to be inserted into any product such as glasses, jewelry, cosmetics, pharmaceutical products, etc.

It incorporates the NXP UCODE 8 chip, which has 128 bits of EPC and 96 bits of TID memory. Additionally, it has a self-adjusting function to maximize product performance in challenging environments, high-performance reading and writing sensitivity, and faster encoding speed than the NXP UCODE 7 chip.

It has the ability to identify the brand to demonstrate the authenticity of the product, with a security system in place to protect business data.

Download datasheet double_arrow

Product description RFID Tag Smartrac Accessory NXP Ucode 8

This product has a UHF frequency range of 860-960 MHz and dimensions of 33 x 18 mm. These features allow it to be read at a distance of up to 11 meters, depending on the applied surfaces and the environment.

This tag complies with the international standards of quality and performance ISO 18000-63 EPC class 1 Gen 2, confirming its proper operation in complex environments. Additionally, like all Avery Dennison RFID products, it is manufactured following the highest industry quality standards.

Product Code:

Wet Inlay: 3007174 / IL-603472

Label: 3007175 / IL-603473

UHF

Inlays and Tags

NXP UCODE 8

-40 °C to 85 °C / -40 °F to 185 °F

Wood, Plastic, Non Metal, Glass

Label / Sticker, Wet Inlay, Dry Inlay

ISO 18000-63, EPC Class 1 Gen 2

128 bits

UHF Global 860-960 MHz

33mm × 18mm

1.30in × 0.71in

You may also be interested in

RFID Tag Smartrac Accessory M730

The Avery Dennison Smartrac Accessory M730 UHF RFID tags have a compact size of 33 x 15 mm, making them easy to convert into an RFID label for end applications such as glasses, jewelry, cosmetics, pharmaceutical products, etc. This tag complies with the international quality and performance standards ISO 18000-63 EPC class 1 Gen 2, ensuring its proper functioning in complex environments. Furthermore, like all RFID products from Avery Dennison, it is manufactured following the highest industry quality standards. Product code: Dry Inlay: 3008300 / IL-604218 Wet Inlay: 3008304 / IL-600040 Label: 3008305 / IL-604223

See more double_arrow

RFID Tag Smartrac Accessory R6-P

This article operates in a UHF frequency range of 860 - 960 MHz, has dimensions of 30 x 15 mm, and can be mounted on surfaces such as wood, glass, plastics, and non-metallic products. This tag complies with the international standards of quality and performance ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in complex environments. Additionally, like all Avery Dennison RFID products, it is manufactured following the highest industry quality standards. Product code: Dry Inlay: 3006256 / IL-603040 Wet Inlay: 3006267 / IL-603043 Label/Sticker: 3006268 / IL-603044

See more double_arrow

RFID Tag Avery Dennison AD-172u7

The AD-172u7 product is available in different formats such as Dry Inlay, Wet Inlay, and Label/Sticker. This tag operates in a UHF frequency range of 860 - 960 MHz and has dimensions of 22 x 12.5 mm, providing a reading range of up to 4.5 meters on different types of surfaces. All Avery Dennison products adhere to the highest quality standards for the industry sector: ISO 18000-63 Type C, which specifies the parameters that RFID devices must meet. Product code: Dry Inlay: RF600482 / IL-608350 Wet Inlay: RF600526 / IL-604391 Label/Sticker: RF100310 / IL-604392

See more double_arrow

RFID Tag Avery Dennison AD-173u8

The AD-173u8 tag features the UCODE 8 chip by NXP, with 128 bits of EPC memory and a 96-bit Tag Identifier (TID). The product is available in Label/Sticker format and performs optimally in temperatures ranging from -40 °C to 85 °C. Like all RFID products by Avery Dennison, the AD-173u8 labels are manufactured to the highest industry quality standards and comply with ISO 18000-63 Type C. Product code: Label/Sticker: RF100478 / IL-603737

See more double_arrow

RFID Tag Smartrac Belt NXP UCode G2iL

This product is available in Wet Inlay and Label/Sticker formats. It operates on the UHF frequency band of 860 - 960 MHz and has an elongated design with dimensions of 70 x 14 mm. Depending on the surface and environment, it has the capability to be read at a range of up to 11 meters. This tag, like all Avery Dennison products, complies with ISO 9001:2015 quality management standards and ISO 14001:2015 environmental management standards, ensuring a reliable and high-quality product that meets the highest standards in the industrial and RFID communication systems world. Product Code: Wet Inlay: 3001963 / IL-602585 Label/Sticker: 3001964 / IL-602586

See more double_arrow

RFID Tag Smartrac Belt Impinj M730

The product is available in Dry Inlay, Wet Inlay, and Label/Sticker formats. It has dimensions of 70 x 14 mm and operates within a UHF frequency range of 860 - 960 MHz. Additionally, it has a wide reading range, and depending on the type of material, it can be read from a distance of up to 19 meters. This tag complies with international quality and performance standards ISO 18000-63 EPC class 1 Gen 2, ensuring its proper functioning in complex environments. Furthermore, like all Avery Dennison RFID products, it is manufactured following the highest industry quality standards. Product Code: Dry Inlay: 3007862 / IL-603906 Wet Inlay: 3007863 / IL-603907 Label/Sticker: 3007861 / IL-603905

See more double_arrow

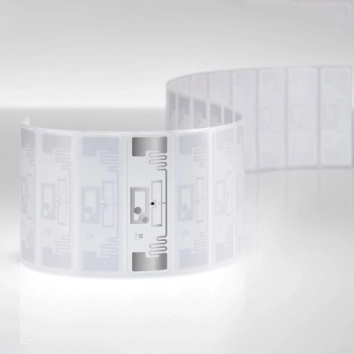

UHF RFID / NFC Tag Smartrac Belt DF

This product has a reading range of up to 13 meters, depending on the environment and the surface it is applied to. It has a rectangular shape with an antenna measuring 70 x 20 mm. Additionally, it stands out from other products by operating at two frequencies: UHF, ranging from 860 to 960 MHz, and HF, which is 13,56 MHz. This tag complies with international standards of quality and performance such as ISO/IEC 18000-63, EPC Gen2 V2, and ISO 15693, ensuring its proper functioning in complex and changing environments. Moreover, it is manufactured following the highest industry quality standards, just like all RFID products from Avery Dennison. Product Code: Wet Inlay: 3008894 / IL-604669 Label/Sticker: 3008890 / IL-604665

See more double_arrow

RFID Tag Smartrac Miniweb Impinj M730

This device operates in the UHF frequency range from 860 to 960 MHz, and its inlay features dimensions of 45 x 18 mm, giving it a rectangular configuration. It performs smoothly on various surfaces, and depending on the conditions and environment in which the tag is used, it can achieve a reading range of up to 14 meters. Just like all Avery Dennison's RFID products, this tag is manufactured following rigorous industry quality standards. It complies with the international standards of quality and performance ISO/IEC 18000-63, EPC Gen2 V2, ensuring its optimal performance even in challenging environments. Product Code: Dry Inlay: 3007865 / IL-603909 Wet Inlay: 3007866 / IL-600035 Label/Sticker: 3008052 / IL-604040

See more double_arrow
