Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.
RFID Tag HID Glass Q5
The HID Glass Q5 tags offer an extraordinary balance between dimensions and capacity for object identification, appliances, medical devices, among others. These tags can be integrated into a wide range of different materials, they are fully protected against water with IP68 certification, and they resist the penetration of chemicals, providing superior stability against temperature variations.
Their glass structure ensures consistent operation despite unfavorable circumstances. The characteristics of the glass protect the electronic components from exposure to corrosive substances, ensure that the label reading is not compromised by immersion in fluids, and provide outstanding stability against thermal fluctuations.
The Glass Q5 operates at a frequency of LF 125 kHz and has a 264-bit EEPROM memory. They are available in two different sizes, the first being Ø 2.12 x 12 mm and the second Ø 3.15 x 13.3 mm.
They operate within a temperature range of -30°C to +90°C, resist exposure to isopropyl alcohol, 30% sodium chloride, fuel C, 15% H2SO4, and seawater, and comply with the EN 60079-0:2012; EN 60079-11:2012; EN 60079-26:2014 regulations.
Product codes:
612201 (12mm)
612203 (13mm)
LF
EN 60079-26:2007, EN 60079-11:2007, EN 60079-0:2009
HID's Glass Titan operates at a frequency of LF 125 kHz and has 1024 bits of EEPROM memory. They come in a compact size of just Ø 3.15 x 13.3mm.
They operate within a temperature range of -25°C to +85°C, are resistant to exposure to alcohol, 25% ammonium chloride, fuel B, 10% HCL, and saltwater, and comply with EN 60079-0:2009; EN 60079-11:2007; EN 60079-26:2007 regulations.
Product code:
602203
The Glass Nova operates in the LF frequency of 125 kHz and has a 160-bit EEPROM memory that can be electrically programmed, erased, and reprogrammed. They have a size of Ø 3.15 x 13.3 mm.
They operate in a temperature range of -25°C to +85°C, they are resistant to exposure to alcohol, 25% ammonium chloride, fuel B, 10% HCl, and saltwater, and comply with EN 60079-0:2009; EN 60079-11:2007; EN 60079-26:2007 standards.
Product code:
610310

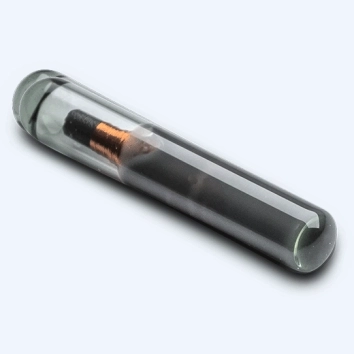

The HID Glass Hitag S is available in three versions, varying in size (12mm and 13mm) and memory type: 2048-bit EEPROM or 256-bit EEPROM. The latter is only available in the 13mm version. All of them operate at the LF frequency of 125 kHz.
They operate within a temperature range of -25°C to +85°C, are resistant to exposure to alcohol, 25% ammonium chloride, fuel B, 10% HCL, and saltwater, and comply with EN 60079-0:2009, EN 60079-11:2007, EN 60079-26:2007 standards.
Product Codes:
624201 (12mm and 2048-bit EEPROM)
623203 (13mm and 256-bit EEPROM)
624203 (13mm and 2048-bit EEPROM)

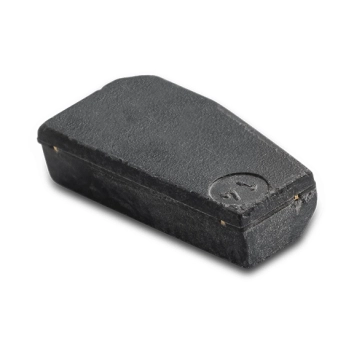

The FIT Brick HDX tags operate at a frequency of 134.2 kHz and have 128 bits of read-only memory. The tag dimensions are 12 × 6 × 3 mm, and it weighs 0.45 g.
It complies with ISO 11784 and ISO 11785 standards and has an IP68 protection rating. It resists exposure to a variety of substances, including bleach, caustic soda, formic acid, gasoline, HCL, oil, and saltwater. It also meets environmental tests at 20°C for 100 hours and can withstand an axial/radial force of 500 N for 10 seconds. Its temperature range is from -40°C to +90°C.
Product code:
9B7513
The Brick Nova operates at the LF frequency of 130 kHz. The tag dimensions are 12 × 6 × 3 mm, and it weighs 0.45 g. Its mounting method allows it to adhere to any material, and its casing is made of black epoxy.
It complies with IP68 protection rating and withstands exposure to a variety of substances, including bleach, caustic soda, formic acid, gasoline, HCL, oil, and saltwater. It also passes environmental tests at 20°C for 100 hours and withstands an axial/radial force of 500 N for 10 seconds. Its temperature range is from -40°C to +90°C.
Product Code:
933504"
The FIT Brick ABS Vigo tags are one of the smallest devices available on the market for high-frequency (HF) applications. They operate at a frequency of 13.56 MHz and have a 64-bit UID memory and a 1024-bit EEPROM. Their operating temperature range is -25°C to +70°C.
They incorporate a programmable user memory that can be optionally used in near-field communication (NFC) applications. They are resistant to chemicals, shocks, and vibration, waterproof, and heat resistant. Their dimensions are 10 × 3 × 2.5 mm, and they weigh only 0.15 g.
Product code:
6A9904
