RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

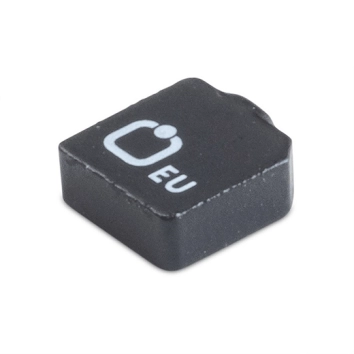

RFID Tag HID FIT Ceramic 400HT

The HID FIT Ceramic 220HT tags are ideal for effective integration into RFID applications that require lightweight and small tags, yet with outstanding performance while maintaining a discreet location. These devices are specifically optimized for placement on metallic assets, ranging from tools and weaponry to surgical instruments. Their robust design ensures the protection of these tiny UHF transponders, enabling them to withstand exposure to autoclave sterilization and the most rigorous industrial environments.

They stand out for offering an excellent balance between size and performance, being one of the smallest and lowest-profile RFID tags available in the market. Their versatility allows for optimal performance even when in contact with metallic surfaces during the manufacturing process, ensuring resistance to temperatures up to 235°C.

Download datasheet double_arrow

Product description RFID Tag HID FIT Ceramic 400HT

In terms of technical specifications, they have high resistance to chemicals, shocks, and vibrations, as well as heat resistance and water resistance. Therefore, they are ideal for asset tracking and logistics applications, inventory and tool or weapon management, cable identification, as well as surgical instrument tracking and monitoring of medical equipment status and utilization.

Their dimensions are 7.8 × 6.8 × 2.7 mm, and they have a 96-bit EPC memory. The chip used is of type Monza R6-P, and their operating frequency is 865-868 MHz for the EU and 902-928 MHz (FCC). The housing is made of painted ceramic, and they weigh 0.6 g. These tags can operate in a temperature range from -20°C to +85°C, compliant with EPC C1G1, ISO 18000-6C standards. Additionally, their water resistance is certified under the IP68 standard at 20°C.

Product code:

CP16360 (EU)

CP16361 (US)

UHF

Ceramic

Hard Tags

Impinj Monza R6-P

-20 °C to 85 °C / -4 °F to 185 °F

IP68

All Surfaces

ISO 18000-63 TYPE C, EPC C1G1

96 bits

UHF FCC 902-928 MHz, UHF ETSI 865-868 MHz

13mm × 8mm × 3mm

0.51in × 0.31in × 0.12in

You may also be interested in

RFID Tag HID FIT Ceramic 400P

Regarding their technical specifications, they offer high resistance to chemicals, shocks, and vibrations, in addition to being heat-resistant and waterproof. Therefore, they are ideal for asset tracking and logistics applications, inventory and tool or weapon management, cable identification, as well as surgical instrumentation tracking and monitoring of medical equipment's status and usage. Their dimensions are 17.6 × 7.1 × 4.1 mm, and they have a 96-bit EPC memory. The chip used is the EM 4124, and its operating frequency is 865-868 MHz for the EU and 902-928 MHz (FCC). The housing is made of painted ceramic, and they weigh 2.6 g. These tags can operate in a temperature range from -20°C to +85°C, complying with EPC C1G1, ISO 18000-6C standards. Additionally, their water resistance is certified under IP68 standard at 20°C. Product Codes: CP15704 (EU) CP15705 (US)

See more double_arrow

RFID Tag HID FIT Ceramic 220HT

Regarding technical specifications, they are resistant to chemicals, shocks, vibrations, heat, and waterproof. These applications include asset tracking and logistics, inventory and tool or weapon management, cable identification, as well as surgical instrumentation tracking and medical equipment status and utilization monitoring. The dimensions are 7.8 × 6.8 × 2.7 mm with a 96-bit EPC memory. The chip type is Monza R6-P, and the operating frequency is 865-868 MHz for the EU and 902-928 MHz (FCC). The casing material is painted ceramic, and its weight is 0.6 g. It operates from -20°C to +85°C and complies with EPC C1G1, ISO 18000-6C standards. Water resistance is certified under the IP68 standard at 20°C. Product code: CP16350 (EU) CP16351 (US)

See more double_arrow

RFID Tag HID Bin Tag HF

HID Bin Tag Unique are passive RFID tags that operate at an HF frequency of 13.56 MHz and have 1024 bits of EEPROM memory. They are made of blue polyamide, measuring 30 mm x 15 mm x 30 mm in size and weighing just 6.4g. The read range of this tag varies depending on the reader, environmental conditions, and the surface where the tag is affixed. These tags offer an IP 67 rated environmental water resistance, making them resistant to extreme temperatures from -40° C to 90° C. They are also certified for shock (IEC 68.2.29) and vibration resistance. (IEC 68.2.6) to ensure optimal performance under difficult conditions of use. They comply with ISO 15693 and ISO 18000-3 standards. Product code: 729103-102B

See more double_arrow

RFID Tag HID Bin Tag FDX-B BDE

The HID Bin Tag FDX-B BDE works with a 134.2 kHz LF frequency with a 128 bit read memory. It is made of yellow polyamide, with a size of 30 mm x 15 mm x 28.5 mm and a weight of only 6.4 g. The read range that this tag can offer will vary depending on the reader, environmental conditions, and the surface where the tag is attached. It has IP 67 environmental resistance to water resistant in extreme temperature conditions from -40° to 90° C. It is also certified for IEC 68.2.29 shock and IEC 68.2.6 vibrations to guarantee maximum performance even if the conditions of use are complicated. Product code: 784104-102Y

See more double_arrow

RFID Tag HID Bin Tag Unique

The HID Bin Tag Unique works with a 125 kHz LF frequency with a 64-bit read memory. It is made of black polyamide, with a size of 30 mm x 15 mm x 28.5 mm and a weight of only 6.4g. The read range that this tag can offer will vary depending on the reader, environmental conditions, and the surface where the tag is attached. It has IP 67 environmental resistance to water resistant in extreme temperature conditions from -40° to 90° C. It is also certified for IEC 68.2.29 shock and IEC 68.2.6 vibrations to guarantee maximum performance even if the conditions of use are complicated. Product code: 701133-106

See more double_arrow

RFID Tag HID EXO InLine

The design of the Exo InLine is built with high-strength plastic, giving it excellent durability against impacts and high temperatures. It also has an IP68 protection rating, guaranteeing full protection against dust and immersion in water. The Exo Inline utilizes a global frequency range of 860 to 960 MHz and employs the EPC Class 1 Gen2v2 protocol for communication, ensuring an impressive reading range of up to 10 meters in suitable environments. This tag is capable of withstanding extreme operating temperatures, ranging from -40°C to +85°C, with a maximum exposure of up to 100°C. Additionally, it can withstand impacts of up to 25 kg from a height of 1 meter. Product codes: 6M6980-102 (grey) 6M6980-120 (grey, 1D-barcode) 6M6981-102 (weld)

See more double_arrow

RFID Tag HID EXO InLine Mini

The compact design of the Exo Inline mini has dimensions of 60 × 18 × 8 mm and weighs only 6.3 grams. It is built with high-strength plastic, providing durability against impacts and high temperatures. It also has an IP68 rating, ensuring protection against dust and immersion in water. With a frequency range of 860 to 960 MHz (worldwide), the Exo InLine mini uses the EPC Class 1 Gen2v2 protocol for communication and offers a reading range of up to 3 meters under optimal conditions. This tag is capable of withstanding operating temperatures ranging from -40°C to +85°C, and it can withstand brief exposures of up to 100°C. Furthermore, it has been designed to withstand impacts of up to 25 kg from a height of 1 meter. Product codes: 6F1987-102

See more double_arrow

RFID Tag HID FIT Brick HDX

The FIT Brick HDX tags operate at a frequency of 134.2 kHz and have 128 bits of read-only memory. The tag dimensions are 12 × 6 × 3 mm, and it weighs 0.45 g. It complies with ISO 11784 and ISO 11785 standards and has an IP68 protection rating. It resists exposure to a variety of substances, including bleach, caustic soda, formic acid, gasoline, HCL, oil, and saltwater. It also meets environmental tests at 20°C for 100 hours and can withstand an axial/radial force of 500 N for 10 seconds. Its temperature range is from -40°C to +90°C. Product code: 9B7513

See more double_arrow

RFID Tag HID FIT Brick Nova

The Brick Nova operates at the LF frequency of 130 kHz. The tag dimensions are 12 × 6 × 3 mm, and it weighs 0.45 g. Its mounting method allows it to adhere to any material, and its casing is made of black epoxy. It complies with IP68 protection rating and withstands exposure to a variety of substances, including bleach, caustic soda, formic acid, gasoline, HCL, oil, and saltwater. It also passes environmental tests at 20°C for 100 hours and withstands an axial/radial force of 500 N for 10 seconds. Its temperature range is from -40°C to +90°C. Product Code: 933504"

See more double_arrow
