RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

RFID Tag Avery Dennison Miniweb U9XM

The Miniweb U9XM is a tag designed for implementation in the automotive, logistics, and retail sectors. It offers great utility in the individual identification of assets throughout the supply chain.

It operates in the UHF frequency range of 860 to 960 MHz and has a user memory of 624 bits.

This tag complies with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management standards, ensuring a reliable and advanced product that meets the needs of various applications, especially in the automotive sector.

Download datasheet double_arrow

Product description RFID Tag Avery Dennison Miniweb U9XM

The tag can be applied to a wide variety of surfaces, such as wood, cardboard, paper, plastic, glass, and all types of non-metallic products. Depending on the environment and surface of application, the label can be read from distances of up to 15 meters.

This label is manufactured to the highest industry quality standards, just like all RFID products from Avery Dennison, ensuring its proper performance in challenging environments and compliance with international quality and performance standards ISO 18000-63 EPC class 1 Gen 2.

Product Code:

Wet Inlay: 3009493 / IL-609531

UHF Global 860-960 MHz

Glass, Wood, Plastic, Non Metal

Inlays and Tags

-40 °C to 85 °C / -40 °F to 185 °F

Wet Inlay

ISO 18000-63, EPC Class 1 Gen 2

256 bits

NXP UCODE 9XM

42mm × 16mm

1.65in × 0.63in

You may also be interested in

RFID Tag Smartrac Miniweb Impinj R6P ETSI

The Miniweb Impinj R6P has a size of 45 mm x 18 mm and operates in the UHF frequency range of 860-960 MHz. Like all Avery Dennison RFID products, the Miniweb R6P is manufactured according to the highest industry quality standards, including ISO/IEC 18000-63, EPC Gen2 V2. It is available in three formats: Dry, Wet, and Label. Additionally, the Miniweb is available with other ICs with different EPC and user memory according to the customer's needs. Product code: Wet Inlay: 3005074 / IL-602877 Label / Sticker: 3005075 / IL-602878 Dry Inlay: 3005078 / IL-602881

See more double_arrow

RFID Tag Smartrac MiniWeb NXP UCode G2iL

The Miniweb NXP UCODE G2iL has a size of 45 mm x 18 mm and operates in the UHF frequency range of 860-960 MHz. Like all Avery Dennison RFID products, the Miniweb UCODE G2iL is manufactured according to the highest industry quality standards, including ISO/IEC 18000-63, EPC Gen2 V2. It is only available in Wet Inlay format. Additionally, the Miniweb is available with other ICs that have different EPC and user memory capacities according to the customer's needs. Product code: Wet Inlay: 3001961 / IL-600317

See more double_arrow

RFID Tag Smartrac Miniweb NXP UCODE 7 ETSI

The Miniweb NXP UCODE 8 has a size of 45 mm x 18 mm and operates in the UHF frequency range of 860-960 MHz. Like all Avery Dennison RFID products, the Miniweb UCODE 8 is manufactured according to the highest industry quality standards, including ISO/IEC 18000-63, EPC Gen2 V2. It is available in three formats: Dry, Wet, and Label. Additionally, the Miniweb is available with other ICs with different EPC and user memory according to the customer's needs. Product code: Dry inlay: 3003013 (10.000 pcs/reel, Clear pet) Wet inlay: 3003014 (15.000 pcs/reel. Clear pet) Label / sticker: 3003015 (15.000 pcs/reel, Mid-gloss paper) Dry inlay: 3004499 (15.000 pcs/reel) Wet inlay: 3005233 (10.000 pcs/reel, Clear pet)

See more double_arrow

RFID Tag Smartrac MiniWeb NXP UCODE 8 ETSI

The Miniweb NXP UCODE 8 has a size of 45 mm x 18 mm and operates in the UHF frequency range of 860-960 MHz. Like all Avery Dennison RFID products, the Miniweb UCODE 8 is manufactured according to the highest industry quality standards, including ISO/IEC 18000-63, EPC Gen2 V2. It is available in three formats: Dry, Wet, and Label. Additionally, the Miniweb is available with other ICs with different EPC and user memory according to the customer's needs. Product code: Dry Inlay: 3006899 / IL-603288 Wet Inlay: 3006900 / IL-603289 Label / Sticker: 3006901 / IL-603290

See more double_arrow

RFID Tag Smartrac Miniweb Impinj M730

This device operates in the UHF frequency range from 860 to 960 MHz, and its inlay features dimensions of 45 x 18 mm, giving it a rectangular configuration. It performs smoothly on various surfaces, and depending on the conditions and environment in which the tag is used, it can achieve a reading range of up to 14 meters. Just like all Avery Dennison's RFID products, this tag is manufactured following rigorous industry quality standards. It complies with the international standards of quality and performance ISO/IEC 18000-63, EPC Gen2 V2, ensuring its optimal performance even in challenging environments. Product Code: Dry Inlay: 3007865 / IL-603909 Wet Inlay: 3007866 / IL-600035 Label/Sticker: 3008052 / IL-604040

See more double_arrow

RFID Tag Smartrac Miniweb Impinj M730 FCC

The antenna of this product has a rectangular shape and dimensions of 42 x 16 mm. It is available in three formats: Dry Inlay, Wet Inlay, and Label/Sticker, which increases the number of surfaces and assets it can be applied to, offering a wide variety of objects to identify. Just like all RFID products from Avery Dennison, it is manufactured following the highest industry quality standards. This tag complies with international quality and performance standards ISO/IEC 18000-63, EPC Gen2 V2, ensuring its proper functioning in complex environments. Product code: Dry Inlay: 3007568 / IL-603724 Wet Inlay: 3007567 / IL-603723 Label/Sticker: 3007556 / IL-603714

See more double_arrow

RFID Tag Smartrac Miniweb Impinj R6 ETSI

The Miniweb Impinj R6 has a size of 45 mm x 18 mm and operates in the UHF frequency range of 860 to 960 MHz. It is available in two formats: wet inlay and label/sticker. Additionally, the Miniweb is available with other integrated circuits with different EPC and user memory capacities, according to customer needs. Just like all RFID products from Avery Dennison, the Miniweb R6 is manufactured according to the highest industry quality standards, including ISO/IEC 18000-63 and EPC Gen2 V2. Product codes: Wet Inlay: 3005084 / IL-602887 Label / Sticker: 3003296 / IL-602809

See more double_arrow

RFID Tag Smartrac Miniweb Impinj R6 FCC

The Miniweb Impinj R6 has a size of 45 mm x 18 mm and operates in the UHF frequency range of 860-960 MHz. Like all Avery Dennison RFID products, the Miniweb R6 is manufactured according to the highest industry quality standards, including ISO/IEC 18000-63, EPC Gen2 V2. It is available in three formats: Dry, Wet, and Label. Additionally, the Miniweb is available with other ICs with different EPC and user memory according to the customer's needs. Product code: Wet Inlay: 3005229 / IL-602912 Label / Sticker: 3004859 / IL-602852 Dry Inlay: 3004855 / IL-602849

See more double_arrow

RFID Tag Smartrac Miniweb Impinj R6P FCC

The Miniweb Impinj R6P has a size of 45 mm x 18 mm and operates in the UHF frequency range of 860-960 MHz. Like all Avery Dennison RFID products, the Miniweb R6P is manufactured according to the highest industry quality standards, including ISO/IEC 18000-63, EPC Gen2 V2. It is available in three formats: Dry, Wet, and Label. Additionally, the Miniweb is available with other ICs with different EPC and user memory according to the customer's needs. Product code: Wet inlay: 3005081 Label / sticker: 3005082 Dry inlay: 3005079

See more double_arrow

RFID Tag Smartrac MiniWeb NXP UCODE 8 FCC

The Miniweb NXP UCODE 8 FCC has a size of 45 mm x 18 mm and operates in the UHF frequency range of 860-960 MHz. Like all Avery Dennison RFID products, the Miniweb UCODE 8 is manufactured according to the highest industry quality standards, including ISO/IEC 18000-63, EPC Gen2 V2. It is available in three formats: Dry, Wet, and Label. Additionally, the Miniweb is available with other ICs offering different EPC and user memory capacities according to the customer's needs. Product code: Dry Inlay: 3007033 / IL-603383 Wet Inlay: 3007034 / IL-603384 Label / Sticker: 3007035 / IL-603385

See more double_arrow

RFID Tag Smartrac MiniWeb NXP UCODE 9 FCC

The Miniweb NXP UCODE 9 has a size of 45 mm x 18 mm and operates in the UHF frequency range of 860-960 MHz. Like all Avery Dennison RFID products, the Miniweb UCODE 9 is manufactured according to the highest industry quality standards, including ISO/IEC 18000-63, EPC Gen2 V2. It is available in three formats: Dry, Wet, and Label. Additionally, the Miniweb is available with other ICs with different EPC and user memory according to the customer's needs. Product code: Dry Inlay: 3008005 / IL-604000 Wet Inlay: 3008006 / IL-604001 Label / Sticker: 3008017 / IL-604012

See more double_arrow

RFID Tag Avery Dennison Miniweb Impinj M780 FCC

he Miniweb Impinj M780 FCC has a size of 45 mm x 18 mm and operates in the UHF frequency range of 860-960 MHz. Like all Avery Dennison RFID products, the Miniweb FCC M780 is manufactured according to the highest industry quality standards, including ISO/IEC 18000-63, EPC Gen2 V2. It comes in three formats: Dry, Wet, and Label. Additionally, the Miniweb is available with other ICs with different EPC and user memory according to the customer's needs. Product code: Dry Inlay: 3008809 / IL-604608 Wet Inlay: 3008811 / IL-604610 Label / Sticker: 3008812 / IL-604611

See more double_arrow

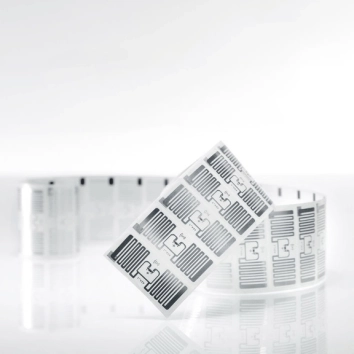

RFID Tag Avery Dennison Miniweb Impinj M750

The Miniweb Impinj M750 has a size of 45 mm x 18 mm and operates in the UHF frequency range of 860-960 MHz. Like all Avery Dennison RFID products, the Miniweb M750 is manufactured according to the highest industry quality standards, including ISO/IEC 18000-63, EPC Gen2 V2. It is available in three formats: Dry, Wet, and Label. Additionally, the Miniweb is available with other ICs with different EPC and user memory according to the customer's needs. Product codes: Dry Inlay: 3007541 / IL-603702 Wet Inlay: 3007542 / IL-603703 Label: 3007543 / IL-603704

See more double_arrow

RFID Tag Smartrac Miniweb Impinj M750

This article has a rectangular shape and dimensions of 42 x 16 mm, making it compact and easy to handle. Additionally, it is designed to function efficiently and seamlessly in a wide temperature range, from -45 °C to 85 °C. Depending on the environment and surface where it is applied, it can be detected and read at distances of up to 14 meters, making it a versatile and reliable option. This tag, which complies with the international quality and performance standards ISO/IEC 18000-63 and EPC Gen2 V2, ensures its proper functioning in complex environments. Furthermore, like all Avery Dennison RFID products, it is manufactured to the highest industry quality standards. Product Code: Dry Inlay: 3007541 / IL-603702 Wet Inlay: 3007542 / IL-603703 Label: 3007543 / IL-603704

See more double_arrow

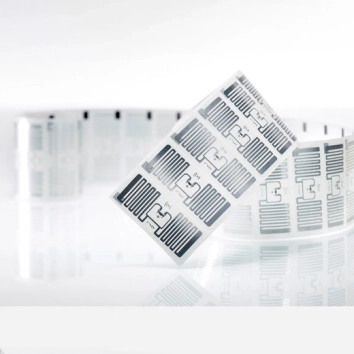

RFID Tag Smartrac Miniweb Impinj M750 FCC
