RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

RFID Tag Avery Dennison Miniweb Impinj M750

The Miniweb M750 tags from Avery Dennison are designed for use in the retail, industrial, and supply chain sectors. These tags stand out for their superior performance compared to others in materials such as cardboard and plastic, as well as in demanding environments.

Their compact size allows the product to be suitable for applications with limited space, while still requiring data identification and storage on the label.

Equipped with the M750 integrated circuit from Impinj, the AD Miniweb FCC M750 inlays have a 96-bit EPC memory and a 32-bit user memory. The integrated circuit is compatible with the global GS1 UHF Gen2v2 standard.

Download datasheet double_arrow

Product description RFID Tag Avery Dennison Miniweb Impinj M750

The Miniweb Impinj M750 has a size of 45 mm x 18 mm and operates in the UHF frequency range of 860-960 MHz.

Like all Avery Dennison RFID products, the Miniweb M750 is manufactured according to the highest industry quality standards, including ISO/IEC 18000-63, EPC Gen2 V2.

It is available in three formats: Dry, Wet, and Label. Additionally, the Miniweb is available with other ICs with different EPC and user memory according to the customer's needs.

Product codes:

Dry Inlay: 3007541 / IL-603702

Wet Inlay: 3007542 / IL-603703

Label: 3007543 / IL-603704

UHF

Inlays and Tags

Impinj Monza M750

-40 °C to 85 °C / -40 °F to 185 °F

Wood, Plastic, Non Metal, Glass

Label / Sticker, Wet Inlay, Dry Inlay

ISO 18000-63, EPC Class 1 Gen 2

96 bits

UHF Global 860-960 MHz

45mm × 18mm

1.77in × 0.71in

You may also be interested in

RFID Tag Avery Dennison Dogbone Impinj M780 Volume

Tag RFID Avery Dennison Dogbone Impinj M780

The Dogbone M780 operates on the global UHF frequency band of 860-960 MHz and has dimensions of 94 x 24 mm. Its optimal operating temperature ranges from -40°C to 85°C. This tag can be applied on wood, glass, and more. Like all Avery Dennison RFID products, the Dogbone M780 tag is manufactured to the highest industry quality standards to ensure its proper functioning in complex environments and complies with the international standard ISO 18000-63 EPC Class 1 Gen 2. The available delivery formats include dry, wet, and label. Product code: 3009040 / IL-604777

See more double_arrow

RFID tag Avery Dennison Midas flagtag M780

The Midas Flagtag M780 tag has dimensions of 43 mm x 21 mm, and the embedding substrate is made of PET. The front sheet is white PET. This product complies with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management standards. Its operating temperature ranges from -40 °C to 85 °C. You can also find the Avery Dennison Midas Flagtag with other IC options according to your specific needs. Product codes: Label: 3009027 / IL-604767

See more double_arrow

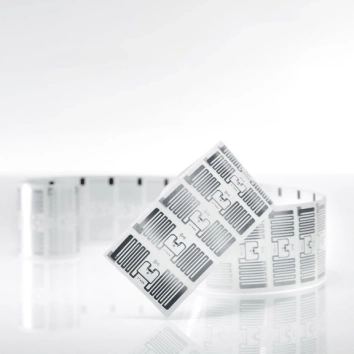

RFID Tag Avery Dennison Miniweb Impinj M780 FCC

he Miniweb Impinj M780 FCC has a size of 45 mm x 18 mm and operates in the UHF frequency range of 860-960 MHz. Like all Avery Dennison RFID products, the Miniweb FCC M780 is manufactured according to the highest industry quality standards, including ISO/IEC 18000-63, EPC Gen2 V2. It comes in three formats: Dry, Wet, and Label. Additionally, the Miniweb is available with other ICs with different EPC and user memory according to the customer's needs. Product code: Dry Inlay: 3008809 / IL-604608 Wet Inlay: 3008811 / IL-604610 Label / Sticker: 3008812 / IL-604611

See more double_arrow

Standard RFID Labels

The label adhesives are available in all ranges, from permanent to removable, allowing for a wide range of applications. Dipole manufactures Standard RFID tags with a wide variety of sizes and are ideal for thermal printers or printers with ribbon. They are customizable in all features such as EPC memory, material (paper, cardboard, polyamide, polyethylene, etc.), a variety of adhesives (permanent, removable, for liquids, etc.), or by adding an EAS system. At Dipole, we offer different delivery formats for greater convenience according to customer needs, and we ship worldwide.

See more double_arrow

RFID Label Dipole Accessory

They operate in the UHF frequency range (860 - 960 MHz) and are available in different IC types, including Impinj and NXP. Their EPC memory varies depending on the IC family, and they are made of PP material. In addition, they come with a range of adhesives, both permanent and removable. Their dimensions are fully customizable to fit any product size, and their temperature range of -40 °C to +85 °C allows them to function in a wide variety of environments. We guarantee worldwide service in the most convenient formats for the customer.

See more double_arrow

RFID Handheld Reader Zebra RFD40

The Zebra RFD40 reader has a read rate of 1300/second, which is 30% higher than its main competitors. The trigger has three different functions such as RFID reading, barcode scanning and a third one that can be configured by the user. It is a rugged product with a drop test of up to 1.5 meters and an IP54 sealing to protect against dust and water conditions, as well as an optimal operating temperature of -10°C to 50°C / 14°F to 122°F. It has a 7,000 mAh battery, dimensions of 15.1 cm x 8.4 cm x 16.65 cm and a weight of 521g. Zebra's RFD40 sled is the next generation model to replace the RFD2000. Product code: RFD4030-G00B700-WR RFD4030-G00B700-US RFD4030-G00B700-TN RFD4030-G00B700-TH RFD4030-G00B700-SL RFD4030-G00B700-JP RFD4030-G00B700-IN RFD4030-G00B700-IL RFD4030-G00B700-E8

See more double_arrow

Universal Laird S8658 RFID Antenna

This device boasts a robust IP54 rating, signifying its resistance to water and its ability to operate in the rain, under dripping conditions, and when subjected to splashes. Additionally, it is sealed in such a way that it can withstand the presence of solid materials larger than 1 mm and prevent dust accumulation. The antenna has a square shape with dimensions of 259 x 259 x 34 mm and weighs 1.13 kg. Product Codes: S8658PR, S8658PL, S8658WPR, and S8658WPL

See more double_arrow

RFID Reader Zebra FX7500

The FX7500 features a slim and attractive form factor, with a low profile and compact size that makes it suitable for virtually any business environment. It's also great for the bottom line, with an impressive set of features that add tremendous value to enterprise-grade applications. It has a sturdy construction made of die-cast aluminum, sheet metal and plastic with dimensions of 19.56cm x 14.99cm x 4.32cm and a weight of 860 g. Product code: Global 4-port: FX7500-42325A50-WR Global 2-port: FX7500-22325A50-WR ETSI 4-port: FX7500-42321A5S-ER

See more double_arrow

RFID Software Lama

Dipole's priority has been that the customer can have the most important information about their business at a glance and in real time, with a very intuitive and visual Dashboard. In addition, our software allows you to easily configure all the antennas and readers to adjust the RFID readings as needed. Some of the benefits of Lama software: Identification of products throughout the process Real-time data updates Easy management of RFID records Easy hardware configuration Configuration of alerts according to customer KPIs Full integration with any type of ERP Possibility of downloading and saving all the information generated in the way that best suits the client. If you want to know more about Dipole's RFID Lama software, please contact us and we will explain much more.

See more double_arrow

RFID and NFC Label Printing and Encoding

Customization of tags We can customize and encode tags with the data you request. Print and encode a barcode. Print images, QR or other necessary data. Encrypt information How can we encode in rfid tags? Data from 96 bits up to 496 bits: encode the EPC Decimal or Hexadecimal format. Encrypt tags with passwords in their corresponding memory, Other types upon request How can we customize in NFC tags? Web pages or URL Texts or ID numbers Contact Information Other types of information

See more double_arrow
