RFID Printers

RFID printers for simultaneous label printing and encoding. At Dipole RFID, we provide RFID printers capable of printing and encoding labels in a single process, helping optimise the preparation of identified assets and products. We work with leading manufacturers such as Zebra, SATO, Toshiba and Printronix, offering solutions adapted to different volumes and operational needs. RFID printers can encode EPC/UID data and verify the encoding process, reducing rejects and rework. Compatible with the main RFID standards, they ensure accuracy and reliability in demanding environments.

RFID Printer ZD611R

The Zebra ZD611R is a desktop RFID printer that offers an innovative architecture that makes it 32% more powerful than its predecessor. The ZD611R is the only two-inch desktop RFID printer on the market. Adaptive coding technology offers great material flexibility and easy RFID calibration, eliminating complex placement guidelines.

It offers a simple and intuitive user experience thanks to its 4.3-inch color LCD touch screen, which clearly shows the status of the printer and guides users in handling tasks. They are compatible with the EPL and ZPL printer languages and can emulate languages associated with other brands.

It easily connects to existing wired and wireless networks and supports printing from any Android, iOS or Windows device.

Download datasheet double_arrow

Product description RFID Printer ZD611R

The Zebra ZD611R has a 2-inch print width and features a full-color, touch-screen LCD that is fully interactive so you can easily schedule your prints. It has a print resolution of 203 dpi or 300 dpi (optional), and the operating system with which it works is Link-Os. Supports UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocol compliant tags.

It is designed to be used as a desktop printer in small spaces, which is why its size is only 24.2 cm x 13.87 cm x 16.92 cm and weighs 1.07Kg.

UHF

UHF Global 860-960 MHz

ISO/IEC 18000-63, EPC Gen2 V2

203 dpi, 300 dpi

2.13 in / 54 mm

242mm × 138mm × 169mm

9.53in × 5.43in × 6.65in

You may also be interested in

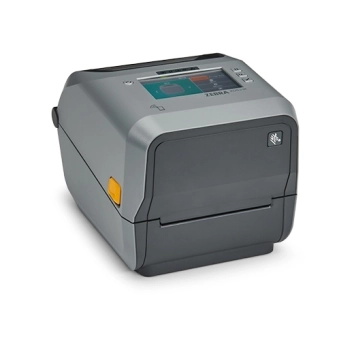

RFID Printer Zebra ZD621R

The Zebra ZD621R has a 4-inch print width and features a 4.3-inch color LCD screen for interacting with its user-friendly configuration menus, which guide the user step by step during material loading and calibration. It has a print resolution of 203 dpi or 300 dpi (optional), and it operates on the Link-OS operating system. It supports identifiers compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63, and RAIN RFID protocols. It has compact dimensions of only 26.7 cm x 20.2 cm x 19.2 cm, making it a portable printer with its long-lasting battery. It weighs 2.5 kg. Product codes: ZD6A142-30EFR2EZ ZD6A142-31EFR2EZ ZD6A143-30EFR2EZ ZD6A143-30ELR2EZ

See more double_arrow

RFID Printer Zebra ZT620

The Zebra ZT620 series of RFID printers have the following features: Tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols Adaptive Encoding Technology automatically selects the optimal encoding settings Supports industry standards and multi-vendor chip serializations You can record the user memory and perform permanentblock according to ATA Spec 2000 regulations Allow users to track performance with RFID job monitoring tools Applications can be very diverse: Shipping and receiving, Semi-finished and finished product traceability, Document and medical record management, Product identification/serial numbers, Inventory management, Asset tracking, Cross-dock, Receiving/location labelling, Order picking/packaging, etc.

See more double_arrow

Standard RFID Labels

The label adhesives are available in all ranges, from permanent to removable, allowing for a wide range of applications. Dipole manufactures Standard RFID tags with a wide variety of sizes and are ideal for thermal printers or printers with ribbon. They are customizable in all features such as EPC memory, material (paper, cardboard, polyamide, polyethylene, etc.), a variety of adhesives (permanent, removable, for liquids, etc.), or by adding an EAS system. At Dipole, we offer different delivery formats for greater convenience according to customer needs, and we ship worldwide.

See more double_arrow

RFID Handheld Reader Zebra RFD40

The Zebra RFD40 reader has a read rate of 1300/second, which is 30% higher than its main competitors. The trigger has three different functions such as RFID reading, barcode scanning and a third one that can be configured by the user. It is a rugged product with a drop test of up to 1.5 meters and an IP54 sealing to protect against dust and water conditions, as well as an optimal operating temperature of -10°C to 50°C / 14°F to 122°F. It has a 7,000 mAh battery, dimensions of 15.1 cm x 8.4 cm x 16.65 cm and a weight of 521g. Zebra's RFD40 sled is the next generation model to replace the RFD2000. Product code: RFD4030-G00B700-WR RFD4030-G00B700-US RFD4030-G00B700-TN RFD4030-G00B700-TH RFD4030-G00B700-SL RFD4030-G00B700-JP RFD4030-G00B700-IN RFD4030-G00B700-IL RFD4030-G00B700-E8

See more double_arrow

Impinj Speedway Revolution Reader R420 RFID UHF

The Impinj R420 has 4 ports for antennas with the capacity to manage up to 32 reading zones, a maximum transmission power of 32.5 dBm and has the option of incorporating a GPIO. With this reader we achieve a reading rate of up to 1,100 readings per second. It has the ISO 18000 63 protocol and global EPC Gen 2 v2 and the maximum benefits of a brand like Impinj, leader in the sector and with many years of experience. Product code: Speedway R420 4-port (ETSI): IPJ-REV-R420-EU12M1 Speedway R420 4-port (FCC): IPJ-REV-R420-USA2M1 Speedway R420 4-port (Japan): IPJ-REV-R420-JP22M1 Speedway R420 4-port (GX1): IPJ-REV-R420-GX12M1 Speedway R420 4-port (GX2): IPJ-REV-R420-GX22M1 Speedway R420 4-port (GX3): IPJ-REV-R420-GX32M1

See more double_arrow

RFID Antenna Zebra AN510

The Zebra AN510 is an antenna for industrial use as it has IP67 sealing certification that perfectly isolates it from dusty and watery environments to be able to work in environments with a large number of particles in the environment without affecting its performance. It has right circular polarization and SMA Female connection located on the side of the antenna, 68º opening angle, 1 dB axial ratio and 3 v maximum power. Its dimensions are 25 cm x 25 cm x 1.1 cm and a total weight of 750 grams. The optimum operating temperature provided by the manufacturer is from -20C to +55 ºC. Product code: ETSI frequency: AN510-CSCL60004E (Vesa studded mount) ETSI frequency: AN510-CFCL60002E (Flush mount)

See more double_arrow

Antenna Zebra AN440

The Zebra AN440 is a robust antenna that has the IP67 seal that guarantees that its performance will not be affected in work environments where there is dust in the environment and it also has IEC-68-2-30 humidity certification that guarantees its resistance. for 24 h with up to 90% humidity. The frequency ranges used are 865 – 868 MHz for the European Union and 902 – 928 MHz for the USA. It has left circular polarization and right circular polarization and has a dual type N female connector on the back of the antenna. Code product: AN440-CPDFQ915WR

See more double_arrow

RFID Software Lama

Dipole's priority has been that the customer can have the most important information about their business at a glance and in real time, with a very intuitive and visual Dashboard. In addition, our software allows you to easily configure all the antennas and readers to adjust the RFID readings as needed. Some of the benefits of Lama software: Identification of products throughout the process Real-time data updates Easy management of RFID records Easy hardware configuration Configuration of alerts according to customer KPIs Full integration with any type of ERP Possibility of downloading and saving all the information generated in the way that best suits the client. If you want to know more about Dipole's RFID Lama software, please contact us and we will explain much more.

See more double_arrow
