Dipole

RFID Printers

RFID printers for simultaneous label printing and encoding. At Dipole RFID, we provide RFID printers capable of printing and encoding labels in a single process, helping optimise the preparation of identified assets and products. We work with leading manufacturers such as Zebra, SATO, Toshiba and Printronix, offering solutions adapted to different volumes and operational needs. RFID printers can encode EPC/UID data and verify the encoding process, reducing rejects and rework. Compatible with the main RFID standards, they ensure accuracy and reliability in demanding environments.

RFID Mobile Printer ZQ630 Zebra

The RFID mobile printer ZQ630 are used for print and econde RFID tags and RFID labels on boxes or pallets, both new and replacement tags.

Print and econder RFID tags and labels with the RFID mobile printer ZQ630 Zebra. It has a compact size to be able to move with the worker and thus improve their productivity and reduce times. It is compatible with Android, iOS and Windows. Support wifi connection.

Download datasheet double_arrow

Product description RFID Mobile Printer ZQ630 Zebra



- UHF EPC Gen 2 V2, ISO/IEC 18000-63
- Compatibility with existing Zebra RFID Printers
- Integrated RFID Reader/Encoder
- Size: 7.35 in x 6.5 in x 3.25 in / 187 mm x 165 mm x 82.5 mm
- Weight: 2.45 Ibs / 1.1 kg (with battery)
- Resolution: 203 dpi / 8 dots per mm
- Memory: 256 mb ram; 512 mb flash (standard)
- Maximum Print Width: 4.1 in / 104 mm
- Maximum Print Speed: up to 4.5 in / 115 mm per second
- Print Length: minimum: 0.5 in / 12.7 mm & maximum: 32 in / 813 mm
- Power: 6800 mAh

This printer is ideal in healtcare, transportation, logistics, manufactoring, warehouse and retail. Mark down labels, replacement tags, return labels, rfid case, pallet labels, shipping/receivin labels, forklift mount, airline baggage tags, specimen/tissue labels, hospital pharmacy labels, medical devices, asset tags, etc.



Customized

You may also be interested in

Standard RFID Labels

Standard RFID Labels

The label adhesives are available in all ranges, from permanent to removable, allowing for a wide range of applications. Dipole manufactures Standard RFID tags with a wide variety of sizes and are ideal for thermal printers or printers with ribbon. They are customizable in all features such as EPC memory, material (paper, cardboard, polyamide, polyethylene, etc.), a variety of adhesives (permanent, removable, for liquids, etc.), or by adding an EAS system. At Dipole, we offer different delivery formats for greater convenience according to customer needs, and we ship worldwide.
See more double_arrow

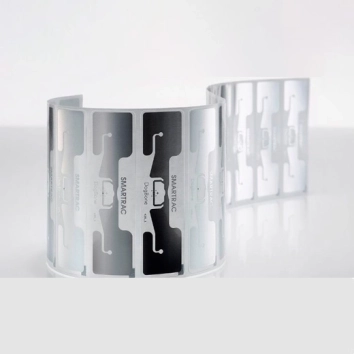

Smartrac Dogbone Impinj Monza R6P

RFID Tag Smartrac Dogbone Impinj Monza R6P

The article is available in Dry Inlay, Wet Inlay, and Label/Sticker formats and can be applied to surfaces such as wood, glass, different plastics, and non-metallic materials. It operates in the UHF frequency range of 860 - 960 MHz and has a rectangular design with dimensions of 94 x 24 mm. This product complies with the international standard ISO 18000-63, EPC Class 1 Gen 2, meeting the most demanding standards in the industrial and communication fields with RFID systems. Product Code: Dry Inlay: 3005071 / IL-602874 Wet Inlay: 3005072 / IL-602875 Label/Sticker: 3005073 / IL-602876
See more double_arrow
RFID Reader MC3390xR Zebra

Handheld RFID Reader Zebra MC3390xR

The MC3390xR RFID reader achieves up to 900 reads per second with its integrated linearly polarized antenna and a read range of up to 18.2 meters. It is designed for use in semi-industrial environments as it has protection against falls of up to 1.5 meters in height and with IP54 protection so you don't have to worry if you work in an environment full of dust or humidity. It has integrated NFC to be able to link the reader to printers and other types of RFID products in an easy way. In addition, it has Bluetooth, WLAN and USB 2.0. Its optimum operating temperature is -20 °C to 50 °C Part numbre: Código de producto: MC339U-GE2EG4EU MC339U-GF3EG4EU MC339U-GE4EG4EU MC339U-GF2EG4EU MC339U-GF4EG4US-1SKT MC339U-GF4EG4US MC339U-GF4EG4EU MC339U-GE3EG4EU-1SKT MC339U-GE3EG4EU MC339U-GE2EG4EU-1SKT MC339U-GF4EG4EU-1SKT   MC339U-GE4EA4CN-1SKT
See more double_arrow
Portal RFID Dipole

RFID Portal Dipole

In technical terms, this RFID gateway operates on the UHF frequency and is equipped with a 4-port or 2-port UHF RFID reader ETSI (865-868 MHz) FCC (902~928 MHz). The 4 or 2 universal antennas offer a gain of 8.5 dBi, ensuring exceptional performance and high read efficiency of over 99%. Competitive advantages:         High read reliability         Record movement data in real time and without human intervention         Automation of logistic processes         Ease of use         Addressability         Improved efficiency and error reduction         Guaranteed traceability
See more double_arrow
