Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

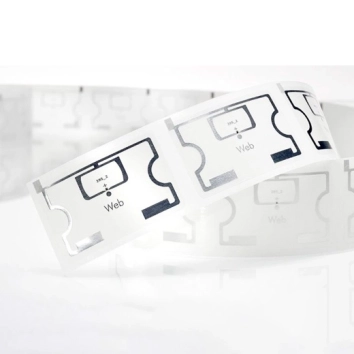

RFID Tag Smartrac Web NXP Ucode 8
The Smartrac Web NXP Ucode 8 tag has been designed to be used in all stages of the supply chain. Thanks to its structure and composition, it becomes a key tool in both the logistics and textile sectors.
It features the integrated NXP UCODE 8 chip with a 128-bit EPC memory and a 48-bit TID memory. It is available in Wet Inlay and Label/Sticker formats.
The chip incorporates a brand identification function that demonstrates the authenticity of the product, in addition to having a memory protection system to safeguard business data.
Product description RFID Tag Smartrac Web NXP Ucode 8
This product features a rectangular antenna with dimensions of 50 x 30 mm, designed to operate in the UHF frequency band, ranging from 860 MHz to 960 MHz. Its reading capacity varies depending on the surface and environment, allowing for distances of up to 18 meters.
It is manufactured following the highest industry quality standards, ensuring proper operation in complex environments and complying with international standards ISO 18000-63 EPC Class 1 Gen 2 in terms of quality and performance.
The antenna of this item has dimensions of 50 x 30 mm and a rectangular shape. Additionally, it is available in Dry Inlay, Wet Inlay, and Label formats, allowing it to be applied on a wide variety of surfaces. Depending on the environment and the surface applied, this tag has a reading range of up to 16 meters.
This tag strictly complies with the demanding international standards of quality and performance ISO/IEC 18000-63, EPC Gen2 V2, ensuring its optimal functioning in highly complex environments. Furthermore, like all RFID products from Avery Dennison, it is meticulously manufactured following the highest recognized industry quality standards.
Product Code:
Dry Inlay: 3007842 / IL-603893
Wet Inlay: 3007843 / IL-603894
Label: 3007896 / IL-603932
This product is available in three different formats: Dry Inlay, Wet Inlay, and Label/Sticker; this means that it has the capability to be applied on various surfaces such as wood, cardboard, paper, glass, plastic, and non-metallic materials.
This tag ensures its proper functioning in all types of complex environments, complying with international standards of quality and performance ISO/IEC 18000-63, EPC Gen2 V2. Additionally, like all RFID products from Avery Dennison, it is manufactured following the highest industry quality standards.
Product Code:
Dry Inlay: 3007806 / IL-600014
Wet Inlay: 3007807 / IL-603866
Label/Sticker: 3007808 / IL-603867
With a rectangular antenna measuring 30 x 49,4 mm, this product has been designed to operate in the UHF frequency band. Its impressive reading capability varies depending on the surface and environment, allowing this tag to be read at distances of up to 8.75 meters. It is available in Wet Inlay and Label/Sticker formats.
This tag complies with international standards of quality and performance, ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in complex environments. Additionally, like all RFID products from Avery Dennison, it is manufactured following the highest industry quality standards.
Product Code:
Wet Inlay: 3002003 / IL-602595
Label/Sticker: 3002004 / IL-602596

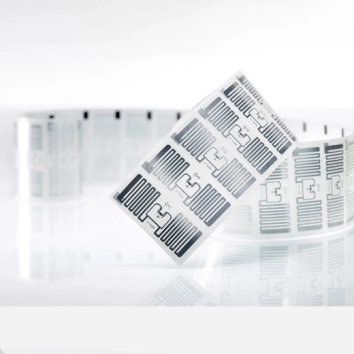

The Miniweb NXP UCODE G2iL has a size of 45 mm x 18 mm and operates in the UHF frequency range of 860-960 MHz.
Like all Avery Dennison RFID products, the Miniweb UCODE G2iL is manufactured according to the highest industry quality standards, including ISO/IEC 18000-63, EPC Gen2 V2.
It is only available in Wet Inlay format. Additionally, the Miniweb is available with other ICs that have different EPC and user memory capacities according to the customer's needs.
Product code:
Wet Inlay: 3001961 / IL-600317
The Miniweb NXP UCODE 8 has a size of 45 mm x 18 mm and operates in the UHF frequency range of 860-960 MHz.
Like all Avery Dennison RFID products, the Miniweb UCODE 8 is manufactured according to the highest industry quality standards, including ISO/IEC 18000-63, EPC Gen2 V2.
It is available in three formats: Dry, Wet, and Label. Additionally, the Miniweb is available with other ICs with different EPC and user memory according to the customer's needs.
Product code:
Dry inlay: 3003013 (10.000 pcs/reel, Clear pet)
Wet inlay: 3003014 (15.000 pcs/reel. Clear pet)
Label / sticker: 3003015 (15.000 pcs/reel, Mid-gloss paper)
Dry inlay: 3004499 (15.000 pcs/reel)
Wet inlay: 3005233 (10.000 pcs/reel, Clear pet)
The Miniweb NXP UCODE 8 has a size of 45 mm x 18 mm and operates in the UHF frequency range of 860-960 MHz.
Like all Avery Dennison RFID products, the Miniweb UCODE 8 is manufactured according to the highest industry quality standards, including ISO/IEC 18000-63, EPC Gen2 V2.
It is available in three formats: Dry, Wet, and Label. Additionally, the Miniweb is available with other ICs with different EPC and user memory according to the customer's needs.
Product code:
Dry Inlay: 3006899 / IL-603288
Wet Inlay: 3006900 / IL-603289
Label / Sticker: 3006901 / IL-603290
This device operates in the UHF frequency range from 860 to 960 MHz, and its inlay features dimensions of 45 x 18 mm, giving it a rectangular configuration. It performs smoothly on various surfaces, and depending on the conditions and environment in which the tag is used, it can achieve a reading range of up to 14 meters.
Just like all Avery Dennison's RFID products, this tag is manufactured following rigorous industry quality standards. It complies with the international standards of quality and performance ISO/IEC 18000-63, EPC Gen2 V2, ensuring its optimal performance even in challenging environments.
Product Code:
Dry Inlay: 3007865 / IL-603909
Wet Inlay: 3007866 / IL-600035
Label/Sticker: 3008052 / IL-604040
The antenna of this product has a rectangular shape and dimensions of 42 x 16 mm. It is available in three formats: Dry Inlay, Wet Inlay, and Label/Sticker, which increases the number of surfaces and assets it can be applied to, offering a wide variety of objects to identify.
Just like all RFID products from Avery Dennison, it is manufactured following the highest industry quality standards. This tag complies with international quality and performance standards ISO/IEC 18000-63, EPC Gen2 V2, ensuring its proper functioning in complex environments.
Product code:
Dry Inlay: 3007568 / IL-603724
Wet Inlay: 3007567 / IL-603723
Label/Sticker: 3007556 / IL-603714
Designed to operate in the UHF frequency range, this product features a rectangular antenna with dimensions of 50 x 30 mm. With an impressive reading capability that varies depending on the surface and environment, this tag can be read at distances of up to 15 meters. Its frequency range spans from 860 MHz to 960 MHz.
Manufactured following the industry's most rigorous quality standards, this tag stands out for its exceptional performance in complex and dynamic environments. It flawlessly meets the international ISO 18000-63 EPC Class 1 Gen 2 standards, ensuring unmatched quality and outstanding performance.
Product Codes:
Dry Inlay: 3008012 / IL-604007
Wet Inlay: 3008013 / IL-604008
Label/Sticker: 3008014 / IL-604009
