RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

RFID Tag LF HID InTag 300

The HID InTag 300 stands out for its exceptional water, chemical, and impact resistance, making it the ideal choice for pallet, container, and various storage item identification. These tags are specially designed to withstand the rigorous conditions of industrial processes, transportation, and outdoor use. Their ability to operate at temperatures of up to 140°C and their UL94-HB fire resistance rating guarantee reliable and safe performance in demanding environments.

Versatility is one of their key features, as they can be mounted on various surfaces such as glass, plastic, wood, or metal, without compromising their performance. There are even options for mounting them on metal. With a size of Ø 30 x 3 mm, these tags operate at a frequency of 125 kHz and contain a unique chip that ensures their efficient functionality.

Download datasheet double_arrow

Product description RFID Tag LF HID InTag 300

The tags' housing is made with PPA Polyphthalamide, a material that ensures durability and lightness, weighing only 1.3 g. Additionally, they have excellent water protection with IP68 and IP69K certifications, making them suitable for use in humid environments and exposure to the elements, as they can operate in a temperature range of -25°C to +85°C.

Different versions of these tags are available with the Unique chip or the HITAG S chip. There are also other models covering LF, HF, and UHF technologies, allowing us to adapt to the specific needs of each application.

Product codes:

623183

624183

601183

EN 60079-26:2007, EN 60079-11:2007, EN 60079-0:2009

Hitag S, Unique

Hard Tags

-25 °C to 85 °C / -13 °F to 185 °F

IP69K, IP68

All Surfaces

LF 125 kHz

Polyphthalamide

30mm × 30mm × 3mm

1.18in × 1.18in × 0.12in

You may also be interested in

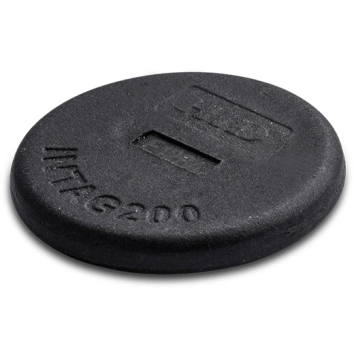

RFID Tag LF HID InTag 200

The tag operates at a frequency of 125 kHz with a unique chip type. Its dimensions are Ø 20 x 3 mm and can be embedded or adhered to glass, plastic, wood, or metal. The casing material is PPA Polyphthalamide, with a weight of 1.3 g. It has protection against water with an IP68 and IP69K rating and can operate in a temperature range from -25°C to +85°C. They incorporate the Unique chip, which has a 64-bit read memory. In addition to other versions that cover LF, HF, and UHF technologies to adjust to the needs of each application. Product code: 601182

See more double_arrow

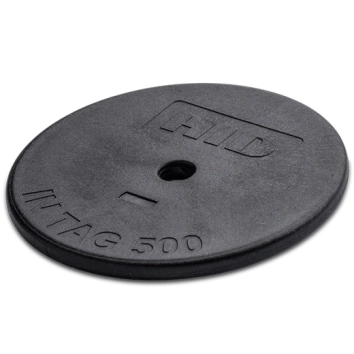

RFID Tag LF HID InTag 500

The tags' casing is made of PPA Polyphthalamide, a material that guarantees durability and lightweight, as they weigh only 9.5 g. Furthermore, they have excellent water protection thanks to IP68 and IP69K certifications, making them suitable for use in humid environments and exposed to the elements, as they can operate in a temperature range of -25° to +85° C. Different versions of these tags are available, such as the Unique chip or the HITAG S chip. There are also other models that cover LF, HF, and UHF technologies, allowing us to adapt to the specific needs of each application. Product Code: 624185 601185

See more double_arrow

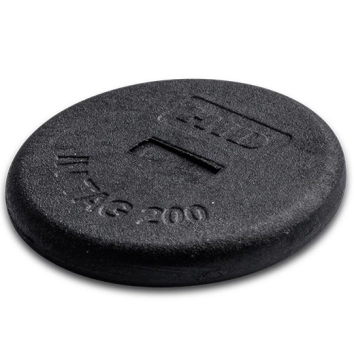

RFID Tag HF HID InTag 200

The coating of the tags is produced with PPA Polyphthalamide, a material that guarantees their longevity and lightness, since their weight is only 1.3 g. Additionally, they have outstanding protection against water thanks to IP68 and IP69K certifications, making them suitable for use in wet areas and exposed to harsh weather conditions, as they can work within a temperature range of -25° to +85° C. They include the e ICODE SLIX 2 chip with 2560 bits of user memory. Other models are also available that encompass LF, HF, and UHF technologies, allowing us to adapt to the specific demands of each application. Product number: 629182-012 629182-012-EX (ATEX/IECEx) 629182-013 (FOAM) 634182 634182-012-EX (ATEX/IECEx)

See more double_arrow

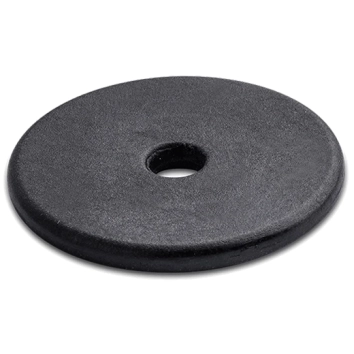

RFID Tag HF HID InTag 300

The casing of the tags is constructed with PPA Polyphthalamide, a material that ensures its lightness and durability, as they only weigh 1.3 g. They also have excellent moisture protection thanks to the IP68 and IP69K certifications, making them suitable for use in humid and outdoor environments, being capable of operating in a temperature range of -25° to +85° C. They integrate the chip and ICODE SLIX 2 with 2560 user memory. In addition, it has another version that incorporates the F-Mem chip. There are also other models that include LF, HF, and UHF technologies, which gives us the ability to adjust to the specific demands of each application. Product code: 629183-012 629183-012-EX (ATEX/IECEx) 634183 634183-012-EX (ATEX/IECEx)

See more double_arrow

RFID Tag HF HID InTag 300 OM

The casing of the tags is made of PPA Polyphthalamide, a material that ensures their lightness and durability, since they only weigh 1.3 g. At the same time, they have excellent protection against humidity thanks to the IP68 and IP69K certifications, making them suitable for use in damp environments and outdoors, being able to operate within a temperature range of -25° to +85° C. They integrate the e-chip and ICODE SLIX 2 with 2560 of user memory. There are also other models that include LF, HF, and UHF technologies, giving us the ability to adjust to the specific demands of each application. Product code: 629183-312 (OM)

See more double_arrow

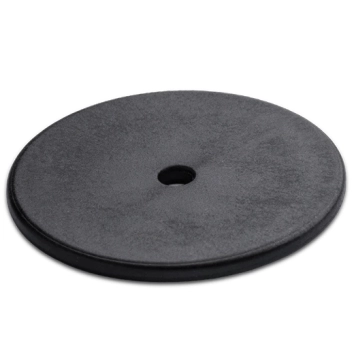

RFID Tag HF HID InTag 500

The coating of the tags is made with PPA Polyphthalamide, a material that ensures their durability and lightness, as their weight is only 9.5 g. In addition, they have superior water protection thanks to IP68 and IP69K certifications, making them suitable for use in humid and outdoor environments, as they can operate within a temperature range of -25° to +85° C. They include the e chip and ICODE SLIX 2 with 2560 user memory. There are also other models that include LF, HF, and UHF technologies, allowing us to adapt to the specific needs of each application. Product code: 629185-012 629185-012-EX (ATEX/IECEx)

See more double_arrow

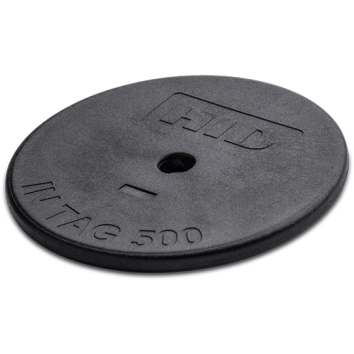

RFID Tag UHF HID InTag 500

These tags are built with PPA Polyphthalamide, a material known for its durability and lightness, with a weight of only 9.5 g. They have water protection, demonstrated by the IP68 and IP69K certifications. This allows their operation in humid climates and exposed to the weather, with the ability to operate in a temperature range from -25° to +85° C. Inside, the tags have the NXP UCODE G2iM chip with 640 bit EEPROM, 96 bit TID, and 256 bits of EPC memory. Additionally, there are other models that adapt to LF, HF, and UHF technologies, allowing to meet the specific demands of each application. Product code: 6E5185-010 (EU) 6E5186-010 (US)

See more double_arrow

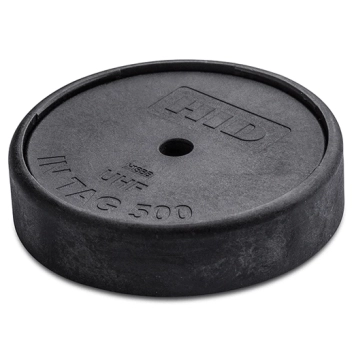

RFID Tag UHF HID InTag 500 OM

These tags are built with PPA Polyphthalamide, a material known for its strength and lightness, weighing only 36g. They are protected against water, as evidenced by their IP68 and IP69K certifications. This gives them the ability to operate in humid climates and in inclement weather conditions, with the ability to operate at a temperature range of -25° to +85° C. Inside, the tags have the NXP UCODE G2iM chip with 640 bit EEPROM, 96 bit TID, and 256 bits EPC memory. Additionally, other models are available that pair with LF, HF, and UHF technologies, to meet the specific needs of each application. Product code: 6E5185-310 (EU) 6E5186-310 (US)

See more double_arrow
