Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.
RFID Tag HID Sense Passive IQ 430
The HID Sense Passive IQ 430 RFID tags represent a significant technological advancement by merging versatility, durability, and efficiency into a single device. These self-adhesive tags, battery-free and made of synthetic material, provide straightforward identification and tracking solutions. Furthermore, their ability to precisely measure temperature and detect humidity completely revolutionizes how conditions are monitored in various environments.
One of the standout features of these tags is their real-time temperature measurement capability with an impressive tolerance of up to 0.5°C. The absence of batteries in these devices makes them an ideal choice as they require no maintenance, making them perfect for asset tracking in transit and storage across a wide range of industrial, technological, and healthcare settings.
Product description RFID Tag HID Sense Passive IQ 430
HID's IQ 430 operates on two different frequencies: 865-868 MHz (ETSI) and 902-928 MHz (FCC), with an M3D chip type. In terms of memory, they boast 128 bits EPC and 64 bits TID, along with a generous 128 bits of user memory capacity. These tags offer a remarkable read distance of up to 4.3 meters and have compact dimensions of 114 x 24 x 1.3 mm.
Their application method is equally convenient as they adhere easily with a special adhesive, making them particularly suitable for metal surfaces. Additionally, these tags are waterproof according to IP68 standards and operate within a temperature range of -40°C to +125°C. Moreover, they comply with UHF EPC Class 1 Gen 2 standards and ISO 18000-6C.
HID's IQ 550P operates at a frequency ranging from 8865 to 956 MHz, equipped with an M3D type chip. Their memory capacity includes 128 bits for EPC, 64 bits for TID, and 128 bits for user memory. These tags allow readings at distances of up to 2.2 meters, and their dimensions are 104 x 24 x 0.3 mm.
Their application is easy thanks to a special adhesive, and they are constructed with high-quality synthetic material, giving them water resistance, complying with IP68 standards. Furthermore, they operate over a wide temperature range, from -40°C to +125°C. They are in compliance with UHF EPC Class 1 Gen 2 and ISO 18000-6C standards.
Product code:
CP15528

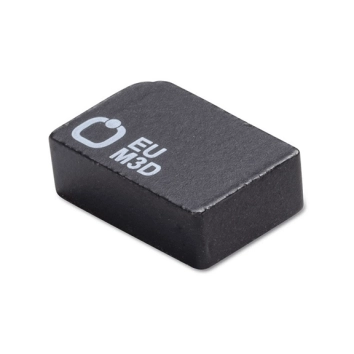

HID's FIT 500HT operates at a frequency of 865-868 MHz (ETSI) and 902-928 MHz (FCC), with an M3D chip type. Its memory includes 128 bits of EPC, 64 bits of TID, and 128 bits of user memory. The reading distance can reach up to 5 meters, and its dimensions are 13.5 × 9 × 4.3 mm.
They adhere using a special adhesive and are ideal for metallic surfaces. Made of painted ceramic, they are water-resistant according to IP68 standards and operate in temperatures ranging from -40°C to +125°C. Additionally, they comply with UHF EPC Class 1 Gen 2 and ISO 18000-6C standards.
Product Codes:
CP14730 (EU)
CP14731 (US)
The HID IQ 175 operates at a frequency of 865-868 MHz (ETSI) and 902-928 MHz (FCC), equipped with an M3D chip. Its memory includes 128 bits of EPC, 64 bits of TID, and 128 bits of user memory. The reading distance can reach up to 1.5 meters, and its dimensions are 50 × 12.5 × 1.4 mm.
These tags adhere using a special adhesive and are particularly suitable for metal surfaces. They are made of synthetic material and are capable of withstanding water according to the IP68 standard, functioning in temperatures ranging from -40°C to +125°C. Furthermore, they comply with UHF EPC Class 1 Gen 2 and ISO 18000-6C standards.
Product Codes:
CP15470 (EU)
CP15469 (USA)
The HID IQ 200P operates in two frequency ranges: 865-868 MHz (ETSI) and 902-928 MHz (FCC), equipped with an M3D-type chip. Their memory capacity covers 128 bits EPC and 64 bits TID, along with 128 bits of user memory. The reading distance can reach up to 2.2 meters, and their dimensions are limited to a diameter of 41 mm.
The application of these tags is highly straightforward, as they adhere using a special adhesive and are made of high-strength synthetic materials. They comply with IP68 standards to withstand water and can operate in temperatures ranging from -40°C to +125°C. Additionally, they conform to UHF EPC Class 1 Gen 2 standards and ISO 18000-6C.
Product Codes:
CP15457 (EU)
CP15456 (USA)
