Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.
RFID Tag HID Logitag 081
The HID Global Logitag 081 RFID tags mark a milestone in RFID technology-based identification innovation. These tiny yet robust discs are specially designed to withstand adverse conditions, ensuring the preservation of information even when subjected to liquid submersion, high pressures, or significant temperature variations.
In medical contexts, Logi Tag discs play an indispensable role. They enable automated tracking of garments, linens, cloths, sponges used in surgeries, and essential equipment. By providing efficient traceability of reusable materials and ensuring the proper application of sanitation and sterilization procedures, these tags contribute to enhancing infection control, thereby promoting optimal safety for both healthcare personnel and patients.
In commercial laundry management, these discs revolutionize processes by ensuring accurate item counting and facilitating precise documentation. This results in more efficient billing and real-time inventory monitoring.
The Logitag 081 operates in the HF frequency at 13.56 MHz. They are offered in two distinct models: one with the Vigo chip and another with the ICODE SLIX chip. Their technical specifications reveal remarkable resistance to temperature ranges fluctuating between -40°C and +85°C. Moreover, they possess an IP68 certification, validating their durability even in the presence of water. Their compact design, with a diameter of just 8 mm and a height of 2 mm, combines ABS and Epoxy, resulting in a lightweight of only 0.11 grams.
Product Code:
6A9081-010
HF
EN 60079-11:2007, EN 60079-0:2009, EN 60079-26:2007
The technical details of these tags leave no doubt about their durability and effectiveness. They operate in the LF frequency at 125 kHz and feature a 64-bit Unique chip for reading capability. They withstand temperatures ranging from -40º C to +85º C. Furthermore, they possess IP68 certification, guaranteeing their water resistance and ability to function in extreme circumstances, whether submerged in fluids or exposed to intense pressures.
Product Code:
601106.

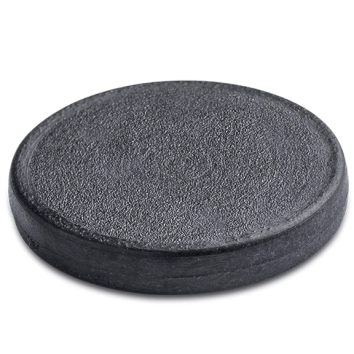

Their technical specifications are impressive. They operate at the HF frequency of 13.56 MHz and are offered in two distinct versions: one with the Vigo chip and the other with the ICODE SLIX chip. Their resistance to extreme temperature variations, ranging from -40°C to +90°C, is noteworthy. The IP68 certification they hold attests to their ability to withstand water immersion, validating their effectiveness in demanding contexts.
With a compact and slim design, these discs measure 12.4 mm in diameter and 2 mm in height. Manufactured with robust materials like PPS and Epoxy, they weigh only 0.4 grams. Their lightweight nature, coupled with their durability, makes them favored choices for various reliability-demanding applications.
Product codes to consider:
6A9121-310 (Vigo 1K)
6D0121-310 (Vigo 2K)
629121-310 (SLIX)
From a technical standpoint, these tags operate at the HF frequency of 13.56 MHz. They are available with the ICODE SLIX 2 chip. They are acclaimed for their ability to withstand extreme weather conditions, with ranges from -40º C to +85º C. Their IP68 certification attests to their water resistance, reinforcing their adaptability to demanding situations.
However, their application goes beyond that. They are essential in medical centers. In such scenarios, they facilitate the tracking of clothing, surgical tools, and essential equipment. By ensuring and monitoring cleaning and sterilization procedures, they provide an advanced level of protection against infections, benefiting both patients and healthcare professionals.
Product code:
629110-411
Speaking of their specifications, these tags operate in the UHF band at 860-960 MHz (worldwide) and feature the Monza R6-P chip. Their resistance to abrupt temperature changes, ranging from -40°C to +85°C, is impressive. Adding to their robustness, they are certified IP68, showcasing their ability to resist water immersion, reaffirming their effectiveness in adverse scenarios.
Regarding their design, these compact and slim tags have dimensions of 18 mm in diameter and 3 mm in height. They are composed of tough materials like Polycarbonate, and weighing only 0.75 grams, they prove to be a perfect solution for applications seeking long-term reliability and resilience.
Product Code:
6H2112
The tags are characterized by operating at an HF frequency of 13.56 MHz and are available in two models, one with an F-Mem chip and another with the ICODE SLIX 2 chip. Their ability to withstand temperatures ranging from -40°C to +85°C, along with an IP68 certification, demonstrates their suitability for immersion in liquids, validating their effectiveness in demanding environments.
With a sleek and compact design, these discs have a diameter of only 16 mm and a height of 3 mm. Manufactured with robust materials like PPS, their lightweight of only 1 gram makes them perfect for applications that require durability and precision.
Product Codes:
629108-411
629108-412-EX (ATEX/IECEx)
629108-401 (ICODE SLIX)
629108-401-EX (ICODE SLIX - ATEX/IECEx)
634108-410 (F-Mem 2K)
6D1108-410 (F-Mem 8K)

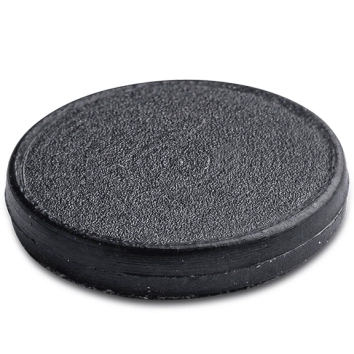

Regarding their technical features, they operate in the HF frequency at 13.56 MHz and come in two variants, one with the Vigo chip and the other with the ICODE SLIX chip. They are notable for their resistance to extreme temperatures, ranging from -40°C to +90°C. Additionally, they have an IP68 certification indicating their ability to resist water immersion, confirming their utility in rigorous environments.
These advanced, compact-sized, and slim-designed discs measure only 12.4 mm in diameter and 2 mm in height, and they are made of durable materials such as PPS and Epoxy. With a lightweight of 0.4 grams, these tags are ideal for applications that demand durability and reliability.
Product Codes:
6A9121-010 (Vigo 1K),
6D0121-010 (Vigo 2K),
29121-010 (SLIX).
The Logitag 120 operates in the LF frequency at 125 kHz. There are three versions with three different chips: Hitag S, Q5, and Unique. Among the technical features, they are resistant to temperatures ranging from -25º C to +85º C, and they are also certified with an IP68 water resistance rating, ensuring usability in extreme conditions.
They have a compact size of only 12 mm in diameter and 2 mm in height, constructed with PPS and Epoxy and weighing 0.6 grams.
Product Code:
624115-001
612115
601115-102
