RFID Antennas

RFID antennas to improve reading accuracy and range at every control point. We select and configure circular or linear RFID antennas, with short- or long-range performance, for warehouses, production lines, portals and picking areas. With the right coverage and polarization design, lost reads are reduced and performance is stabilised in environments with interference, metal or movement. Compatible with the leading RFID readers on the market and global standards, our RFID antennas help deliver more consistent and scalable traceability.

RFID Antenna WRA 6060 Kathrein

The Kathrein WRA 6060 RFID antenna has been developed for static detection applications. Thanks to its slim design, this antenna can be integrated into various applications, both indoor and outdoor.

This antenna is particularly suitable for retail applications, where it improves inventory accuracy, enhances supply chain agility, and strengthens visibility across all sales channels.

The antenna is characterized by an extremely uniform reading zone, achieved through a high front-to-back ratio. Its reading range extends up to 5 cm.

Download datasheet double_arrow

Product description RFID Antenna WRA 6060 Kathrein

The antenna dimensions are 300 x 300 x 49 mm, and it weighs 1.7 kg. It is resistant to extreme temperatures, capable of withstanding ranges from -40°C to 70°C.

The antenna is rated IP67, making it highly resistant to sand, dust, and other small solid particles. Additionally, it is waterproof, capable of enduring drips, splashes, jets, and more. It can even be submerged underwater at a depth of up to one meter for a maximum of 30 minutes.

Product Codes:

52010423 (865 - 868 MHz)

52010424 (902 - 928 MHz)

UHF

-40 °C to 70 °C / -40 °F to 158 °F

TNC Female

Circular

2 Watts

60°

IP67

UHF FCC 902-928 MHz, UHF ETSI 865-868 MHz

5.5 dBic

300mm × 300mm × 49mm

11.81in × 11.81in × 1.93in

You may also be interested in

RFID Reader RRU 4000 Series Kathrein

The RRU 4000 Series, exceptionally rugged, is capable of withstanding various weather conditions and temperatures ranging from -20 °C to 55 °C. It has an IP67 protection rating, providing high resistance to small particles larger than 1 mm, dust, and accumulation. Furthermore, it exhibits a high level of water resistance, allowing it to be submerged at a depth of 1 meter for 30 minutes. Product Codes: RRU 4400: 52010287 (ESTI) and 52010295 (FCC) RRU 4500: 52010288 (ESTI) and 52010296 (FCC) RRU 4560: 52010289 (ESTI) and 52010297 (FCC) RRU 4570: 52010290 (ESTI) and 52010298 (FCC)

See more double_arrow

RFID UHF Antenna Kathrein WRA 3070

The Kathrein WRA 3070 UHF RFID antenna has a horizontal opening angle of 30 degrees and a vertical opening angle of 65 degrees. It features circular polarization and a gain of 12 dBi, allowing for a reading range of up to 20 meters. Designed with an IP67 protection rating, it is suitable for both indoor and outdoor use, meaning it is water-resistant and can be submerged to a depth of one meter for 30 minutes without damage. Furthermore, it provides complete protection against dust and sand. Product Codes: 52010583 (ETSI) 52010584 (FCC)

See more double_arrow

RFID Reader Kathrein ARU 3000 Series

The ARU 3000 Series is extremely rugged and can withstand various types of weather conditions. This is demonstrated by its IP67 protection rating, which makes it completely waterproof, even when submerged at a depth of 1 meter for 30 minutes. Furthermore, it is highly resistant to small particles, dust, and their accumulation. Based on the latest RFID standards, such as EPC Gen2v2 / ISO 18000-63, Kathrein's ARU 3000 series is compatible with all major transponder chip functions available in the market, making it suitable for security, authentication, and encoding applications. Product code:

See more double_arrow

RFID Antenna WRA 7070 Kathrein

This product is long-range. Depending on the type of tag, material, and environment in which it is applied, this antenna can read RFID tags at distances of up to 12 meters. The antenna has an IP67 protection rating, which means it is highly resistant to sand, dust, and other small solid particles. Additionally, it is waterproof and can withstand drips, splashes, jets, and more. It can even be submerged underwater at a depth of up to one meter for a maximum of 30 minutes. Product Codes: 52010333 (865 - 868 MHz) 52010334 (902 - 928 MHz)

See more double_arrow

RFID Antenna Mid Range Kathrein

This product operates smoothly within a temperature range from -20°C to 55°C. Its design is compact and features an almost square shape, with dimensions of 79.5 x 90 x 31 mm. The antenna is equipped with an IP67 protection rating, which entails strong resistance to sand, dust, and other tiny solid particles. Additionally, it boasts waterproof properties and the ability to withstand drops, splashes, jets, and similar conditions. It can even be submerged in water up to one meter deep for a maximum of 30 minutes. Product Codes: 52010082 (865 - 868 MHz) 52010083 (902 - 928 MHz) 52010172 (865 - 928 MHz)

See more double_arrow

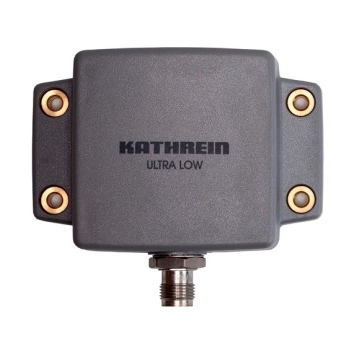

RFID Antenna Low Range Kathrein

The antenna dimensions are 79.5 x 90 x 31 mm, with a weight of 0.11 kg. It features an IP67 protection rating, which means the antenna is completely resistant to sand, dust, and other small solid particles. Moreover, it is waterproof against drips, sprays, splashes, and mist, capable of remaining submerged underwater up to one meter deep for 30 minutes without any damage. Product Codes: 52010084 (ETSI) 5210085 (FCC)

See more double_arrow

RFID Antenna ALR 8698 Alien Technology

This product operates in the UHF frequency range, covering a range from 865 to 928 MHz. The antenna has an environmental rating of IP67, which means it is waterproof; the antenna can be submerged to a depth of one meter for 30 minutes without suffering damage. The dimensions of this Alien Technology ALR-8698 RFID antenna are 258 x 258 x 36 mm, with a lightweight of 0.91 kg. Furthermore, this antenna demonstrates exceptional performance across a wide range of temperatures, from -40 °C to 70 °C, ensuring seamless operation in environments with a wide range of temperatures. Product Code: ALR-8698

See more double_arrow

RFID Antenna ALR 8697 Alien Technology

The dimensions of this Alien Technology ALR 8697 RFID antenna are 258 x 258 x 36 mm, with a lightweight of 0.91 kg. It operates in the UHF frequency, covering a range from 865 to 928 MHz. The antenna boasts a robust environmental rating of IP67, ensuring its water resistance from any angle; it can even be submerged at one meter depth for 30 minutes without damage. Furthermore, this antenna demonstrates exceptional performance across a wide range of temperatures, from -40 °C to 70 °C, ensuring seamless functionality in extreme environments. Product Code: ALR-8697

See more double_arrow

RFID Antenna ALR A0501 Alien Technology

The dimensions of the Alien Technology ALR-A0501 RFID antenna are compact, measuring 128 x 128 x 20 mm, and it has a lightweight of just 0.30 kg. It operates in the UHF frequency, covering a range extending from 902 to 928 MHz (FCC version) and from 865 to 868 MHz (ETSI version). The antenna boasts a robust environmental rating of IP67, ensuring its resistance to dust, sand, and water from any angle. It can even be submerged underwater to a depth of one meter for 30 minutes without suffering damage. Furthermore, this antenna demonstrates exceptional performance across a wide range of temperatures, from -40 °C to 70 °C. Product code: ALR-A0501-F (FCC) ALR-A0501-E (ETSI)

See more double_arrow

RFID Software Lama

Dipole's priority has been that the customer can have the most important information about their business at a glance and in real time, with a very intuitive and visual Dashboard. In addition, our software allows you to easily configure all the antennas and readers to adjust the RFID readings as needed. Some of the benefits of Lama software: Identification of products throughout the process Real-time data updates Easy management of RFID records Easy hardware configuration Configuration of alerts according to customer KPIs Full integration with any type of ERP Possibility of downloading and saving all the information generated in the way that best suits the client. If you want to know more about Dipole's RFID Lama software, please contact us and we will explain much more.

See more double_arrow

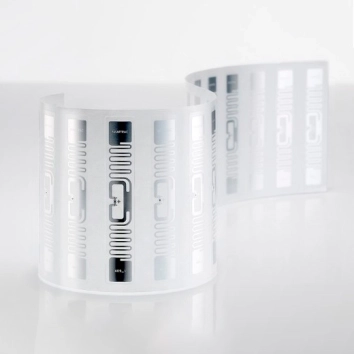

RFID Tag Smartrac Belt NXP UCODE 9

The dimensions of the tag are 70 x 14 mm and may vary depending on the purchasing format. It is available in Dry Inlay, Wet Inlay, and Label/Sticker formats. The label complies with the international quality and performance requirements ISO 18000-63 EPC Class 1 Gen 2, ensuring proper operation in complex and changing environments. Additionally, like all NXP RFID products, it is manufactured to meet the industry's strictest quality requirements. Belt NXP UCODE 9 is available in different configurations, offering a wide range of options to suit the specific needs of each business. Product Code: Dry Inlay: 3008008 / IL-604003 Wet Inlay: 3008009 / IL-604004 (73 x 17 mm) Label/Sticker: 3008010 / IL-604005 (73 x 17 mm)

See more double_arrow

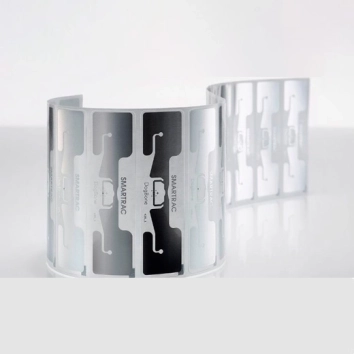

Smartrac Dogbone NXP UCODE 7

This product operates in the UHF frequency band of 860 - 960 MHz and has dimensions of 94 x 24 mm. It is available in Wet Inlay and Label/Sticker formats and, depending on the environment and surface type where it is applied, such as wood, plastic, glass, and non-metallic materials, it can be read at a distance of up to 16 meters. Like all Avery Dennison RFID products, the Dogbone NXP UCODE 7 tags are ISO 18000-63 Type C certified, which means they have been manufactured following the highest industry quality standards. Product Code: Wet Inlay: 3003020 / IL-602772 Label/Sticker: 3003021 / IL-602773

See more double_arrow

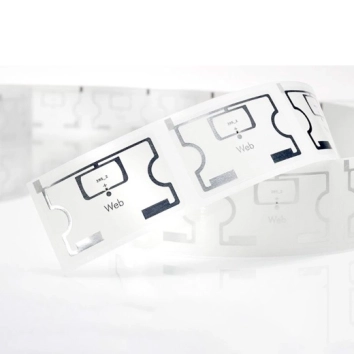

RFID Tag Smartrac Web NXP UCode G2iL

With a rectangular antenna measuring 30 x 49,4 mm, this product has been designed to operate in the UHF frequency band. Its impressive reading capability varies depending on the surface and environment, allowing this tag to be read at distances of up to 8.75 meters. It is available in Wet Inlay and Label/Sticker formats. This tag complies with international standards of quality and performance, ISO 18000-63 EPC Class 1 Gen 2, ensuring its proper functioning in complex environments. Additionally, like all RFID products from Avery Dennison, it is manufactured following the highest industry quality standards. Product Code: Wet Inlay: 3002003 / IL-602595 Label/Sticker: 3002004 / IL-602596

See more double_arrow
