RFID Tags

Industrial RFID tags for technical applications and demanding environments. Dipole offers a wide range of RFID tags in UHF, HF, LF and NFC technologies, designed for applications that require higher mechanical, thermal or chemical resistance. They are built to withstand impacts, temperature, humidity and washing processes, with on-metal options and different mounting systems such as technical adhesive, screws, rivets or cable ties. Available in various formats and memory capacities, RFID tags make it possible to identify assets, containers, tools and parts with high durability. Stable readings, long service life and reliable traceability for industry, logistics, healthcare and laundry applications.

Alien Squiglette ALN 9830

The Alien Squiglette ALN 9830 tag is ideal for product labeling in the retail sector. Its design and composition provide a wide reading range, as well as the ability to be applied to a variety of surfaces. Thanks to its versatility, this tag offers exceptional performance and adapts to the needs of various commercial environments.

It is equipped with the Alien Higgs™-EC chip, characterized by a 128-bit user and EPC memory, as well as a 32-bit TID memory. This chip incorporates a low-power function for both reading and programming. Additionally, it features anti-counterfeiting technology and has a reading range of up to 13 meters, depending on the environment and applied surface.

Download datasheet double_arrow

Product description Alien Squiglette ALN 9830

This tag operates in the UHF frequency band, covering the range of 860 to 960 MHz. Its rectangular-shaped antenna has dimensions of 70 x 9,50 mm and is available in Dry Inlay and Wet Inlay formats. These format options allow for easy integration into a variety of applications and environments.

Ensuring its proper functioning in complex environments, this tag complies with international standards of quality and performance, including Global GS1 Class 1 Gen 2 (V1.2.0) and ISO/IEC 18000-6C. Additionally, it is manufactured following the highest industry quality standards. Our commitment to excellence ensures that this tag meets the highest expectations in terms of performance and durability.

Product Code:

Dry Unslit / Slit Inlay: ALN-9830-R / -SR

Clear Wet Inlay: ALN-9830-WRC

White Wet Inlay: ALN-9830 -WRW

UHF

Glass, Wood, Plastic, Non Metal

Inlays and Tags

Alien Higgs EC

Wet Inlay, White Wet Inlay, Dry Inlay

ISO/IEC 18000-63, EPC Gen2 V2

128 bits

UHF Global 860-960 MHz

-40 °C to 70 °C / -40 °F to 158 °F

83mm × 16mm

3.27in × 0.63in

You may also be interested in

RFID Tag Alien Technology ALN-9940

One of the standout features of Alien Technology's RFID ALN-9940 tags is their 688-bit user memory capacity. Additionally, they offer support for password-protected readings and writings, ensuring data security and preventing unauthorized modifications or unwanted access. The robust design of these tags has been carefully conceived to guarantee their efficiency in business environments. Their durability and optimal performance allow for a reduction in unit cost, resulting in a highly cost-effective RFID solution for companies. Product Codes: Dry inlay: ALN-9940-R Wet inlay: ALN-9940-WRC

See more double_arrow

RFID Tag Alien Technology ALN-9840

One of the advantages of Alien Technology products is their compliance with World Tag standards, enabling them to operate at different frequencies worldwide. From the Americas to Europe, the Middle East, Asia, and Africa, the ALN-9840 tags provide a global solution for radio frequency identification needs. The design of these tags is carefully crafted to ensure robustness and durability. Thanks to this resilience, the ALN-9840 tags can withstand adverse conditions, ensuring optimal performance even in challenging environments. This not only reduces replacement costs but also maximizes RFID solutions' efficiency for businesses, offering great long-term value. Product code: Dry inlay: ALN-9840-R Wet inlay: ALN-9840-WRC

See more double_arrow

Tag RFID Alien Technology ALN-9740 Inlay

RFID Tag Alien Technology ALN-9740

The RFID tags ALN-9740 from Alien Technology have 128 bits of user memory, allowing for additional information to be stored along with the unique identification of each tag. Additionally, these tags support password-protected reads and writes, ensuring data integrity and preventing unauthorized modifications or unauthorized access to the information stored in them. It is important to note that the ALN-9740 complies with World Tag standards, which means they can operate on different frequencies used in the Americas, Europe, the Middle East, Asia, and Africa. This makes them compatible with a wide range of RFID systems and equipment worldwide, facilitating their implementation in different environments and geographical locations. Product code: Dry inlay: ALN-9740-R Wet inlay: ALN-9740-WRC

See more double_arrow

Tag RFID Alien Technology ALN-9640 Inlay

RFID Tag Alien Technology ALN-9640

Alien Technology's ALN-9640 RFID tags have 512-bit user memory and support password-protected reads and writes, preventing unauthorized viewing or data modification. Like all Alien Technology products, this ALN-9640 complies with the World Tag to be able to operate on different frequencies in America, Europe, the Middle East, Asia and Africa. The design of these labels is intended to be robust and guarantee the efficiency of RFID solutions for companies, reducing the unit cost. Product code: Dry Inlay: ALN-9640-FRA White Wet: ALN-9640-FWRCA

See more double_arrow

Tag RFID Alien Technology ALN-9841 Inlay

RFID Tag Alien Technology ALN-9841

The design of the "Doc" antenna, based on the Higgs™-EC UHF RFID IC integrated circuit, offers high performance for labeling documents, files, folders, and other thin and compact organic or wooden materials. Its applications include, but are not limited to, legal, academic, medical environments, among others. The enhanced memory includes a unique 48-bit TID for authentication and serialization applications, and supports password-protected read and write protection to prevent unauthorized viewing and modification of tag data. Reading ranges of up to 11 meters are achieved. The ALN-9841 inlays comply with international standards, allowing for consistent operation across the diverse frequencies in the Americas, Europe, the Middle East, Asia, and Africa. Product code: Dry inlay: ALN-9841-R White wet inlay: ALN-9841-WRW

See more double_arrow

Alien Squiglette ALN 9630

This article features a rectangular shape with dimensions of 82.50 x 15.875 mm. Additionally, it is designed to operate in the UHF frequency range, specifically within a range of 840 to 960 MHz. This tag complies with the international standards of quality and performance EPC global Gen2 (V1.2.0) and ISO/IEC 18000-6C, ensuring its optimal performance in complex environments. These globally recognized standards guarantee that the tag meets the requirements of interoperability and efficiency necessary for various applications. Product Code: Dry Unslit / Slit Inlay: ALN-9630-FR / -FSR Clear / White Wet Inlay: ALN-9630-FWRC / -FWRW

See more double_arrow

Alien Squiglette ALN 9730

It has dimensions of 82,50 x 15,875 mm and operates in the UHF frequency range of 840 to 960 MHz. Additionally, it is available in Dry Inlay and Wet Inlay formats, allowing for its application on various surfaces. This tag complies with international quality and performance standards ISO/IEC 18000-6C EPCglobal Gen2 (V1.2.0), ensuring its proper functioning in complex and changing environments. Moreover, it is manufactured following the highest industry quality standards. Product code: Dry Unslit Roll / Slit: ALN-9730-R / -SR Clear / White Wet Inlay: ALN-9730-WRC / -WRW

See more double_arrow

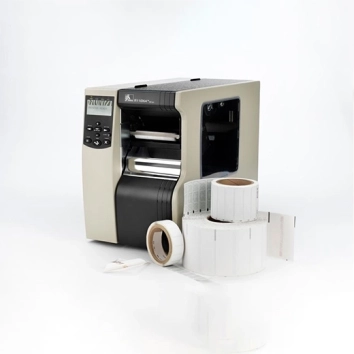

RFID and NFC Label Printing and Encoding

Customization of tags We can customize and encode tags with the data you request. Print and encode a barcode. Print images, QR or other necessary data. Encrypt information How can we encode in rfid tags? Data from 96 bits up to 496 bits: encode the EPC Decimal or Hexadecimal format. Encrypt tags with passwords in their corresponding memory, Other types upon request How can we customize in NFC tags? Web pages or URL Texts or ID numbers Contact Information Other types of information

See more double_arrow

RFID Software Lama

Dipole's priority has been that the customer can have the most important information about their business at a glance and in real time, with a very intuitive and visual Dashboard. In addition, our software allows you to easily configure all the antennas and readers to adjust the RFID readings as needed. Some of the benefits of Lama software: Identification of products throughout the process Real-time data updates Easy management of RFID records Easy hardware configuration Configuration of alerts according to customer KPIs Full integration with any type of ERP Possibility of downloading and saving all the information generated in the way that best suits the client. If you want to know more about Dipole's RFID Lama software, please contact us and we will explain much more.

See more double_arrow
